LRX801GKA526Q1 - Exmark 52" Lazer Z X-Series Zero-Turn Mower, Kawasaki FX801V (SN: 417930746 & Above) (Rev A) (2025) Deck Assembly Parts Diagram

52" Lazer Z X-Series Zero-Turn Mower, Kawasaki FX801V

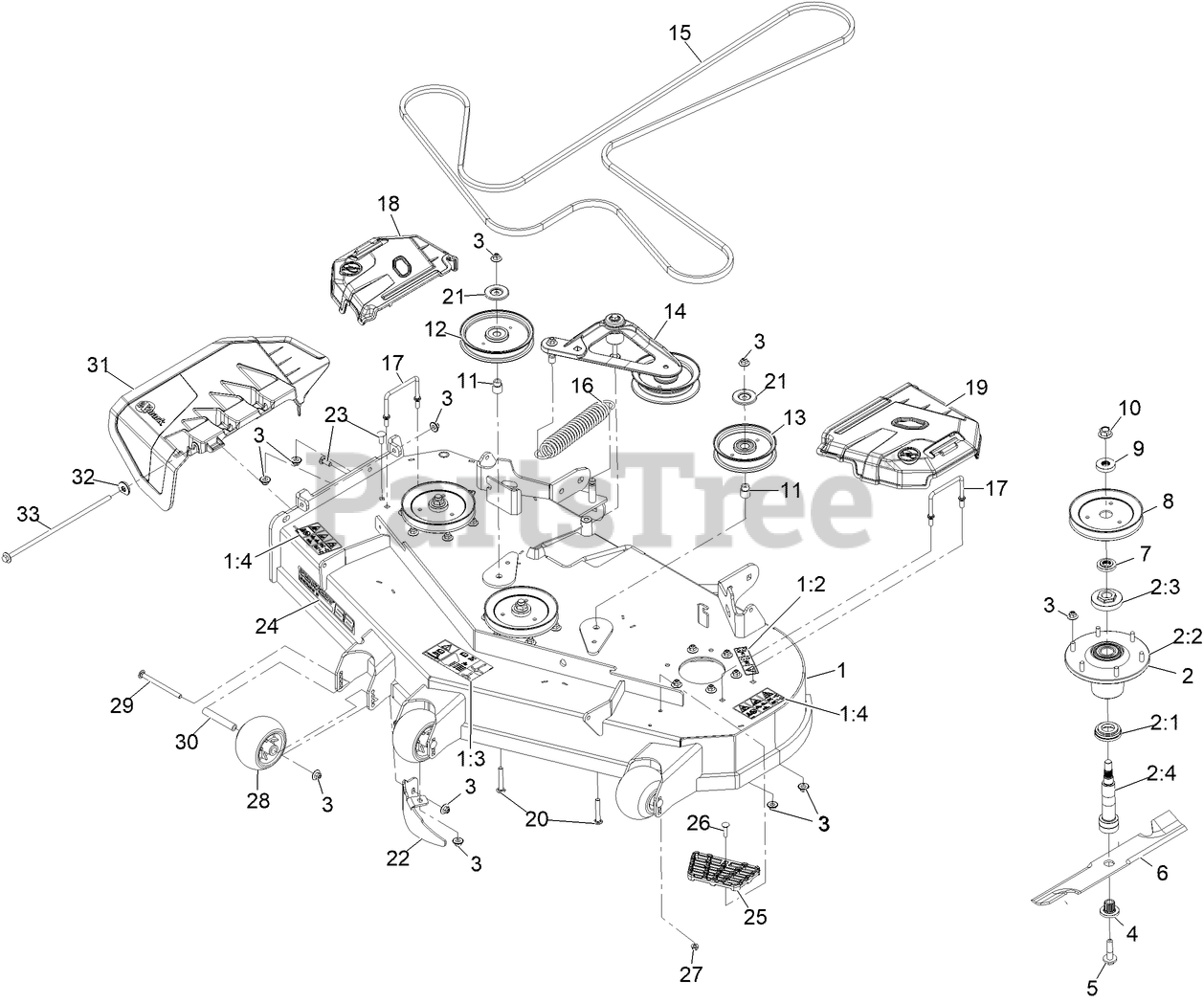

Deck Assembly Parts Diagram

  • Title

1

Exmark 146-1325

ASM, Deck W/Decals 52

$2810.99

$

Usually ships in 0 days

0

1:2

Exmark 112-9028

DECAL-COVER, MISSING

$23.99

$

Usually ships in 3-6 days

0

1:3

Exmark 146-3805

DECAL-ANTI-SCALP-BELT ROUTING

$

$

Not available

1:4

Exmark 126-6464

DECAL-DANGER THROWN OBJECTS

$3.99

$

In Stock, only 2 left!

0

2

Exmark 109-6917

ASM,SPINDLE HOUSING

$434.99

$

In Stock, only 3 left!

0

2:1

Exmark 103-9504

GUARD,BOTTOM

$13.99

$

In Stock, only 4 left!

0

2:2

Exmark 103-9539

ASM,CUTTER HOUSING

$427.99

$

In Stock, only 2 left!

0

2:3

Exmark 109-0916

NUT, SPINDLE 7/8-14

Note: Torque to 160-185 ft-lb

$26.99

$

In Stock, only 2 left!

0

2:4

Exmark 109-6881

SPINDLE,DOUBLE SPLINE

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade anti-seize). See operator s manual for locations.

$155.99

$

In Stock, only 3 left!

0

3

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

4

Exmark 103-3037

BUSHING,SPLINED

$23.99

$

In Stock, Qty 12

0

5

Exmark 109-9220

SCREW,SEMS 1/2-20 X 2.19

$8.99

$

In Stock, Qty 20+

0

6

Exmark 103-6387

USE 103-6387-S
(Superseded to 103-6387-S)

Note: Optional Equipment

$37.99

$

In Stock, Qty 6

0

6

Exmark 103-6382

USE 103-6382-S
(Superseded to 103-6382-S)

Note: Optional Equipment

$38.99

$

In Stock, only 4 left!

0

6

Exmark 103-6392

USE 103-6392-S
(Superseded to 103-6392-S)

Note: Requires installation of mulch kit for proper mulching. See your Exmark dealer for details.

$33.99

$

In Stock, Qty 10

0

6

Exmark 103-6402

USE 103-6402-S
(Superseded to 103-6402-S)

$33.99

$

In Stock, Qty 20+

0

6

Exmark 116-5175

USE 116-5175-S
(Superseded to 116-5175-S)

Note: Optional Equipment

$33.99

$

In Stock, Qty 20+

0

7

Exmark 103-9522

SPACER,SPLINED STEPPED

$7.49

$

In Stock, Qty 17

0

8

Exmark 116-0185

SHEAVE,BLADE DRIVE

$69.99

$

Usually ships in 3-6 days

0

9

Exmark 103-9523

SPACER,SPLINED

$8.99

$

In Stock, Qty 20+

0

10

Exmark 109-7033

NUT-FLANGE, CENTERLOCK

$2.99

$

In Stock, Qty 20+

0

11

Exmark 1-633456

BUSHING-IDLER

$5.49

$

In Stock, Qty 20+

0

12

Exmark 146-4625

Idler-Pulley, Flat

$50.99

$

Usually ships in 0 days

0

13

Exmark 146-4624

Pulley-Idler, Flat

$36.99

$

Usually ships in 0 days

0

14

Exmark 146-5154

ASM-IDLER, DECK

$204.99

$

Usually ships in 0 days

0

15

Exmark 135-5776

USE 135-5776-SL
(Superseded to 135-5776-SL)

$176.99

$

In Stock, Qty 11

0

16

Exmark 116-6317

SPRING-EXTENSION

$30.99

$

In Stock, Qty 16

0

17

Exmark 109-6982

WIREFORM-COVER

$12.99

$

In Stock, only 2 left!

0

18

Exmark 142-7103

SHIELD, RT

$22.99

$

In Stock, only 1 left!

0

19

Exmark 142-7102

SHIELD, LT

$22.99

$

In Stock, only 2 left!

0

20

Exmark 3231-44

SCREW-CARR

$2.99

$

In Stock, Qty 20+

0

21

Exmark 126-8043

SHIELD-DUST

$3.49

$

In Stock, Qty 20+

0

22

Exmark 116-5814-01

BAFFLE-DOGLEG, LZ-VT52

$74.99

$

Usually ships in 3-6 days

0

23

Exmark 3231-22

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

24

Exmark 126-6591

Decal, 526

$10.99

$

Usually ships in 0 days

0

25

Exmark 126-4781-03

STEP-DECK

$31.99

$

In Stock, only 2 left!

0

26

Exmark 3230-3

Bolt-Carriage 5/16-18 X 1 1/4

$1.49

$

In Stock, Qty 9

0

27

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 10

0

28

Exmark 146-1989

ROLLER-SCALP, ANTI

$24.99

$

In Stock, Qty 12

0

29

Exmark 109-6795

BOLT-CARR

$5.49

$

In Stock, only 4 left!

0

30

Exmark 146-1990

SPACER-AXLE

$7.99

$

In Stock, Qty 12

0

31

Exmark 142-7025

Chute-Deck Discharge

$88.99

$

In Stock, only 4 left!

0

32

Exmark 146-0943

Retainer, Chute

$1.49

$

In Stock, only 4 left!

0

33

Exmark 142-8544

Pin, Chute

$9.49

$

In Stock, only 4 left!

0
