LRX801GKA606Q1 - Exmark 60" Lazer Z X-Series Zero-Turn Mower, Kawasaki FX801V (SN: 417930746 & Above) (Rev A) (2025) Fuel Assembly Parts Diagram

60" Lazer Z X-Series Zero-Turn Mower, Kawasaki FX801V

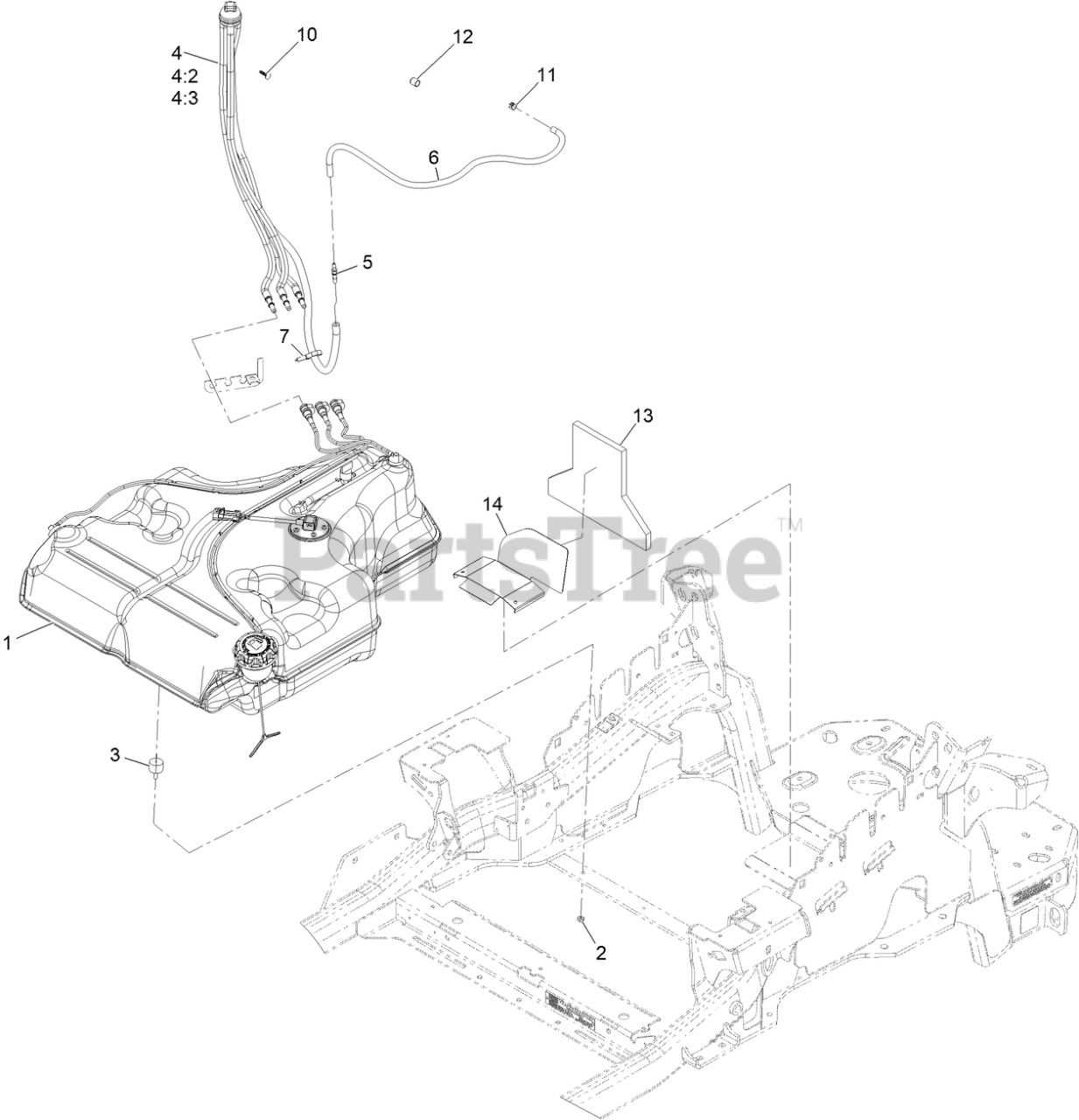

Fuel Assembly Parts Diagram

  • Title

1

Exmark 135-0643

FUEL TANK ASM

$847.99

$

Usually ships in 3-6 days

0

2

Exmark 3218-1

NUT-JAM

$1.49

$

In Stock, only 4 left!

0

3

Exmark 1-523420

BUMPER

$15.99

$

Usually ships in 3-6 days

0

4

Exmark 127-0583

FUEL MANIFOLD VENT ASM

$77.99

$

Usually ships in 3-6 days

0

4:2

Exmark 109-0302

HOSE-FUEL

$13.99

$

In Stock, only 2 left!

0

4:3

Exmark 108-5376

HOSE-FUEL

$46.99

$

In Stock, only 1 left!

0

5

Exmark 135-5678

BARB-FUEL

$1.99

$

Usually ships in 3-6 days

0

6

Exmark 140-4956

Hose-Fuel

$31.99

$

Usually ships in 3-6 days

0

7

Exmark 105-1853

CLAMP-HOSE

$5.49

$

In Stock, only 2 left!

0

10

Exmark 125-8067

PLUG-PLASTIC

$0.99

$

Usually ships in 3-6 days

0

11

Exmark 2412-80

CLAMP-HOSE

$5.49

$

In Stock, only 2 left!

0

12

Exmark 116-4464

PLUG-PORT

$1.49

$

Usually ships in 3-6 days

0

13

Exmark 126-0224

INSULATION-FOAM, FUEL TANK

$10.99

$

Usually ships in 3-6 days

0

14

Exmark 126-0032-01

GUARD-EXHAUST

$30.99

$

Usually ships in 3-6 days

0
