LRX801GKA606Q1 - Exmark 60" Lazer Z X-Series Zero-Turn Mower, Kawasaki FX801V (SN: 417930746 & Above) (Rev A) (2025) Roll Over Protection System (cont.) Parts Diagram

60" Lazer Z X-Series Zero-Turn Mower, Kawasaki FX801V

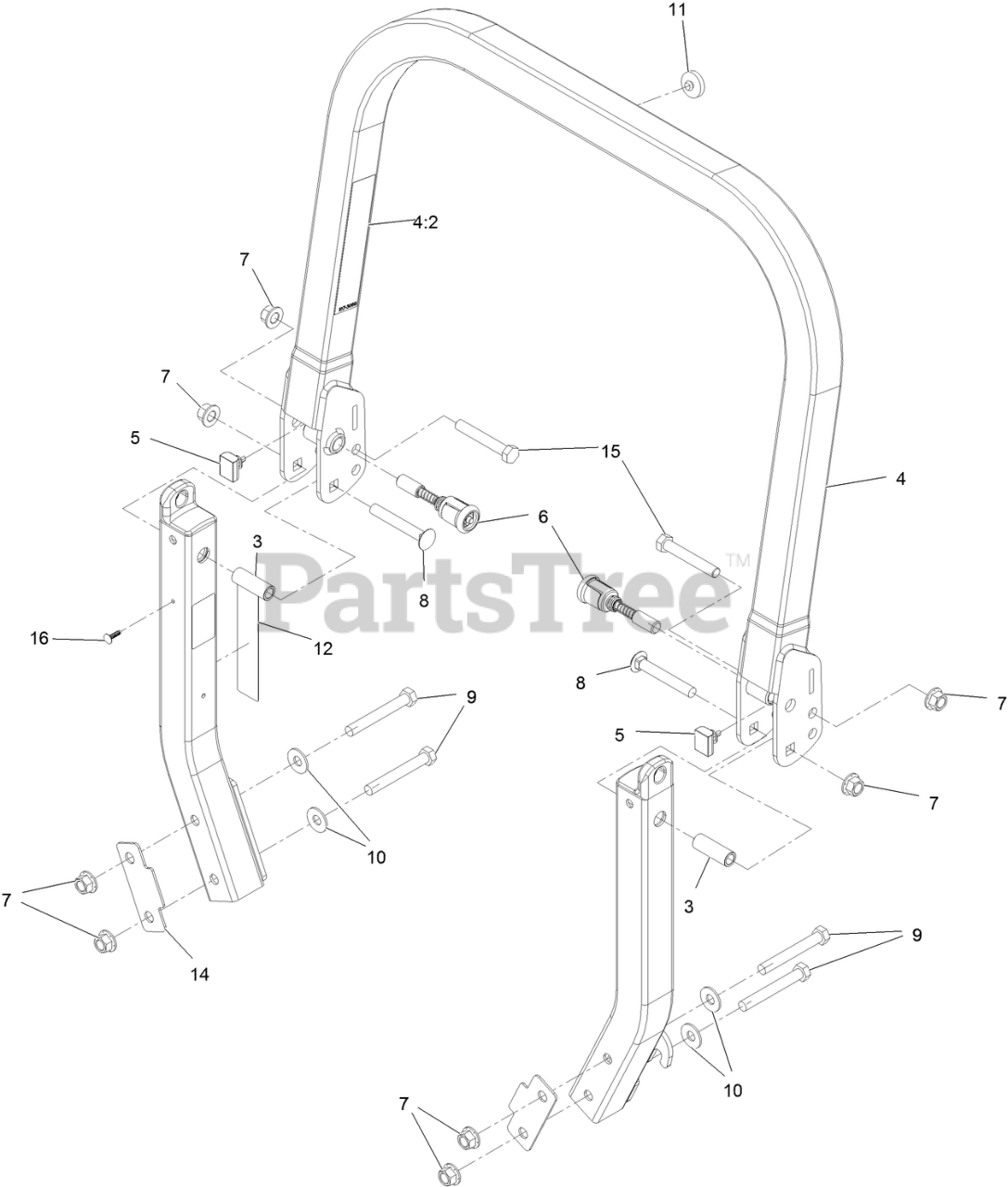

Roll Over Protection System (cont.) Parts Diagram

  • Title

3

Exmark 109-6653

SPACER

$6.99

$

In Stock, only 2 left!

0

4

Exmark 116-0019

UPPER ROPS ASM

$528.99

$

Usually ships in 3-6 days

0

4:2

Exmark 107-3069

DECAL-WARNING

$26.99

$

Usually ships in 3-6 days

0

5

Exmark 109-5337

BUMPER-ROPS

$6.99

$

In Stock, only 2 left!

0

6

Exmark 116-0104

PIN-SPRING

$52.99

$

Usually ships in 3-6 days

0

7

Exmark 99-5107

Nut-Lock 1/2-13

$2.49

$

In Stock, Qty 15

0

8

Exmark 3233-10

SCREW-CARR

$7.49

$

In Stock, only 2 left!

0

9

Exmark 325-35

SCREW-HH

$12.99

$

Usually ships in 3-6 days

0

10

Exmark 109-9505

WASHER-SPRING

$5.99

$

In Stock, Qty 13

0

11

Exmark 109-9233

BUMPER-PUSH-IN, RUBBER

$5.99

$

In Stock, Qty 12

0

12

Exmark 117-0346

DECAL-CAUTION, FUEL VENT

$10.99

$

Usually ships in 3-6 days

0

14

Exmark 116-0960

SPACER

Note: Not required for some models

$8.49

$

Usually ships in 3-6 days

0

15

Exmark 325-13

SCREW-HH

$0.99

$

In Stock, Qty 17

0

16

Exmark 125-8067

PLUG-PLASTIC

$0.99

$

Usually ships in 3-6 days

0
