Exmark LRX820AKA606Q1 - Exmark 60" Lazer Z X-Series Zero-Turn Mower, Kawasaki FX820V (SN: 417930746 & Above) (Rev A) (2025) Deck Lift Assembly Parts Lookup with Diagrams

1

Exmark 109-7952

DECK STRUT ASM

$158.99

$

In Stock, Qty 8

1:2

Exmark 109-5009

BUSHING-SUSPENSION, RUBBER

$5.49

$

In Stock, Qty 20+

1:3

Exmark 109-5010

SPACER

$14.99

$

In Stock, Qty 20+

2

Exmark 109-5013

PANHARD ROD ASM

$155.99

$

In Stock, Qty 9

2:2

Exmark 109-5009

BUSHING-SUSPENSION, RUBBER

$5.49

$

In Stock, Qty 20+

2:3

Exmark 109-5010

SPACER

$14.99

$

In Stock, Qty 20+

3

Exmark 86-1990

WASHER-THRUST

$4.49

$

In Stock, Qty 18

4

Exmark 99-5107

Nut-Lock 1/2-13

$2.49

$

In Stock, Qty 15

5

Exmark 325-12

SCREW-HH

$6.49

$

In Stock, Qty 10

6

Exmark 325-17

SCREW-HH

$6.49

$

In Stock, Qty 7

7

Exmark 3233-34

SCREW-CARR

$10.99

$

In Stock, only 3 left!

8

Exmark 127-0553

SUPPORT-CROSS SHAFT, BEARING REAR

$15.99

$

In Stock, Qty 6

9

Exmark 109-7173

BEARING-CROSS SHAFT, REAR

$5.49

$

In Stock, Qty 20+

10

Exmark 3231-7

Bolt-Carriage 3/8-16 X 2 1/4

$7.49

$

In Stock, Qty 20+

11

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

12

Exmark 109-9409

SUPPORT-CROSS SHAFT, BEARING

$15.99

$

In Stock, Qty 9

13

Exmark 109-9410

BEARING-CROSS SHAFT, FRON

$5.49

$

In Stock, Qty 20+

14

Exmark 116-1700

Bolt-Carriage 1/2-13 X 2 1/2 Spl Neck

$5.49

$

Usually ships in 3-6 days

15

Exmark 142-7458-03

Shaft- Deck Lift Front [black]

$258.99

$

Usually ships in 0 days

16

Exmark 146-5194

LINK-LIFT, DECK

$390.99

$

Usually ships in 0 days

17

Exmark 142-7459-03

Shaft- Deck Lift Rear [black]

$258.99

$

Usually ships in 0 days

18

Exmark 116-0000

SPRING-EXTENSION

$149.99

$

Usually ships in 3-6 days

19

Exmark 109-9065

SCREW-HH

$3.99

$

In Stock, Qty 13

20

Exmark 32128-37

NUT-HF

$4.99

$

In Stock, Qty 20+

21

Exmark 92-7674

BOLT-SHOULDER

$2.99

$

In Stock, Qty 8

22

Exmark 116-0780

SCREW-SHOULDER, HHF 1/2-13 X 1.12

$9.49

$

In Stock, Qty 20+

23

Exmark 116-2022

SCREW-HHF, SHOULDER

$9.49

$

Usually ships in 3-6 days

24

Exmark 121-4517

WASHER-WAVE

$4.49

$

Usually ships in 3-6 days

25

Exmark 3256-28

WASHER-FLAT

$3.99

$

In Stock, Qty 20+

26

Exmark 146-4129

ASM-HOC Box W/ Decals

$100.99

$

Usually ships in 0 days

26:2

Exmark 146-4580

Decal-HOC

$9.49

$

Usually ships in 0 days

26:3

Exmark 116-5988

DECAL-PARK BRAKE, CE

$15.99

$

Usually ships in 3-6 days

27

Exmark 142-9775

ASM- HOC PIN

$26.99

$

In Stock, only 4 left!

29

Exmark 109-8353

TRUNNION

$15.99

$

In Stock, Qty 15

30

Exmark 109-7840

ADJUSTER-LIFT, DECK

$8.49

$

In Stock, Qty 5

31

Exmark 109-8007

LINK-ADJUSTER, DECK LIFT

$17.99

$

In Stock, Qty 5

32

Exmark 3218-5

NUT-JAM

$1.49

$

In Stock, Qty 10

33

Exmark 116-1919-01

LEVER-FOOT

$108.99

$

Usually ships in 3-6 days

34

Exmark 3231-4

SCREW-CARR

$4.49

$

In Stock, only 2 left!

35

Exmark 109-9840

SCREW-SHOULDER, HHF

$5.49

$

In Stock, Qty 16

37

Exmark 142-8402

Bushing- Link

$17.99

$

Usually ships in 0 days

38

Exmark 146-3291-03

COVER-TRANSPORT LOCK

$4.49

$

Usually ships in 0 days

39

Exmark 87-6620

SCREW-TPH THD FORM

$1.99

$

Usually ships in 3-6 days

47

Exmark 116-2695

SPACER

$20.99

$

Usually ships in 3-6 days

50

Exmark 146-4947

Latch-Transport, HOC

$

Currently unavailable 

53

Exmark 3229-4

SCREW-CARR

$1.49

$

In Stock, only 2 left!

54

Exmark 142-9115

Spacer- 0.50" OD

$3.99

$

Usually ships in 0 days

55

Exmark 146-6056

ASM-TRANSPORT LOCK LEVER W/ GRIP

$41.99

$

Usually ships in 0 days

56

Exmark 3256-67

WASHER

$0.99

$

In Stock, Qty 8

57

Exmark 3296-56

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

61

Exmark 142-8428

Spring- Extension

$2.99

$

Usually ships in 0 days

62

Exmark 3231-38

Bolt-Carriage 3/8-16 X 1 1/4

$8.49

$

In Stock, only 4 left!

63

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

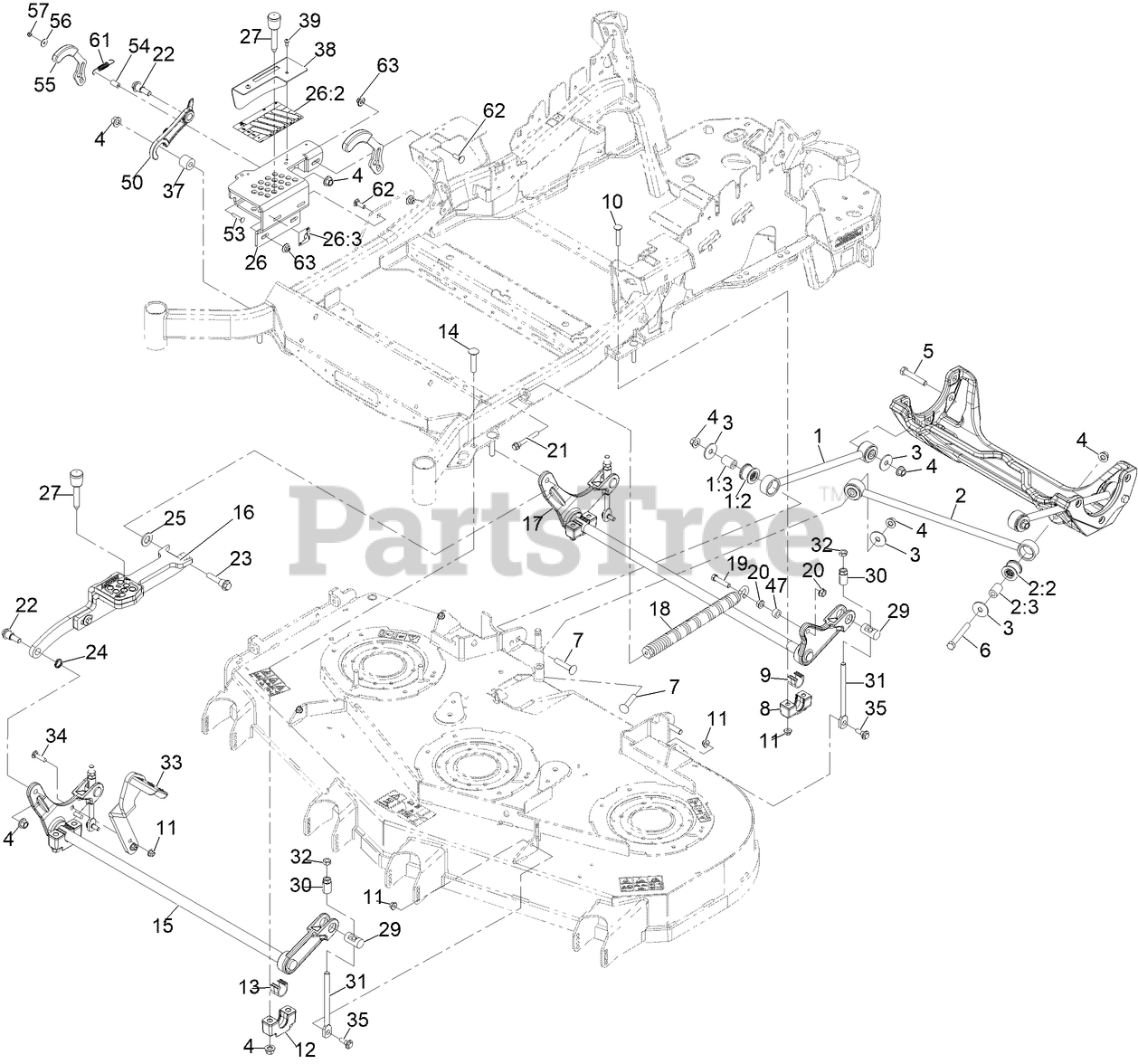

LRX820AKA606Q1 - Exmark 60" Lazer Z X-Series Zero-Turn Mower, Kawasaki FX820V (SN: 417930746 & Above) (Rev A) (2025) Deck Lift Assembly Parts Diagram

Deck Lift Assembly Parts Diagram
