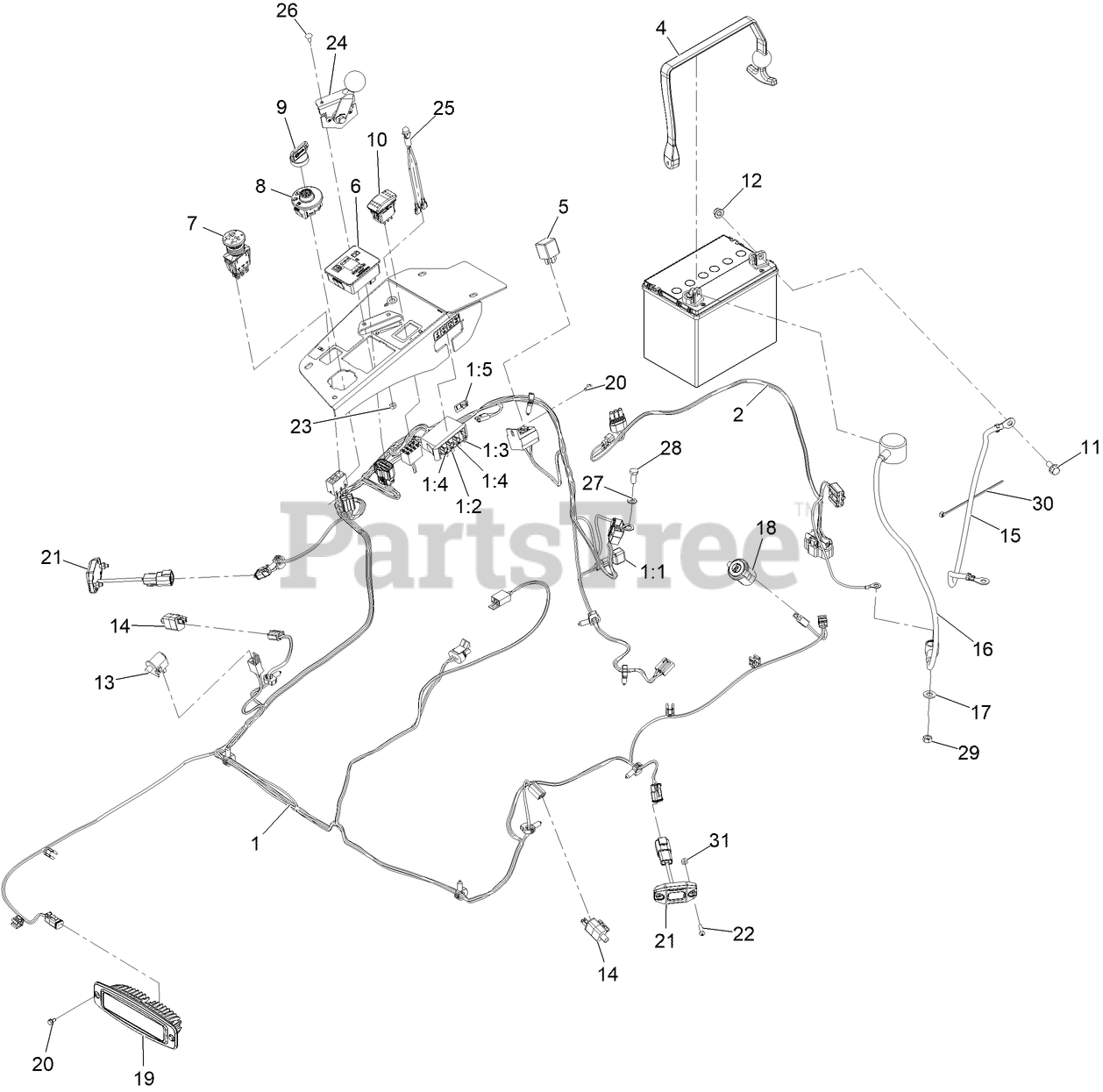

LRX820AKA606Q1 - Exmark 60" Lazer Z X-Series Zero-Turn Mower, Kawasaki FX820V (SN: 417930746 & Above) (Rev A) (2025) Electrical Assembly Parts Diagram

60" Lazer Z X-Series Zero-Turn Mower, Kawasaki FX820V

Electrical Assembly Parts Diagram

  • Title

1

Exmark 146-4030

HARNESS-MAIN LRX CARB

$322.99

$

Usually ships in 0 days

0

1:1

Exmark 103-3895

DIODE

$68.99

$

In Stock, only 2 left!

0

1:2

Exmark 218-578

FUSE-BLADE, 10 AMP

$2.99

$

In Stock, Qty 5

0

1:3

Exmark 109355

FUSE-BLADE, 15 AMP

$3.99

$

In Stock, only 2 left!

0

1:4

Exmark 109102

FUSE-BLADE, 25 AMP

$6.49

$

Usually ships in 3-6 days

0

1:5

Exmark 116-0053

CAP-PLUG

$43.99

$

Usually ships in 3-6 days

0

2

Exmark 146-4089

Harness-Adapter EFI, Etc

$

$

Currently unavailable

4

Exmark 146-4467

Strap-Bungee

$9.99

$

Usually ships in 0 days

0

5

Exmark 1-643275

RELAY

$25.99

$

In Stock, Qty 13

0

6

Exmark 117-3882

FUEL/HOUR METER ASM

$185.99

$

In Stock, only 4 left!

0

7

Exmark 135-3653

SWITCH, PTO 10A

$72.99

$

In Stock, Qty 16

0

8

Exmark 137-4100

SWITCH-IGNITION

$29.99

$

In Stock, Qty 20+

0

9

Exmark 103-2106

KEY-IGNITION

$5.99

$

In Stock, Qty 12

0

10

Exmark 95-8999

SWITCH

$48.99

$

In Stock, only 1 left!

0

11

Exmark 3234-5

SCREW-HHF

$1.49

$

In Stock, Qty 20+

0

12

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 10

0

13

Exmark 82-2190

SWITCH-BAIL

$15.99

$

In Stock, Qty 6

0

14

Exmark 110-6765

SWITCH

$14.99

$

In Stock, Qty 20+

0

15

Exmark 114-1218

CABLE-BATTERY, NEGATIVE

$25.99

$

In Stock, only 3 left!

0

16

Exmark 115-3864

CABLE-BATTERY, POSITIVE

$33.99

$

In Stock, Qty 6

0

17

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

18

Exmark 140-7955

PORT-POWER, USB

$38.99

$

Usually ships in 3-6 days

0

19

Exmark 139-8089

MOUNT-FLUSH, LIGHT

$105.99

$

Usually ships in 3-6 days

0

20

Exmark 104-2065

SCREW-HWH

$0.99

$

In Stock, Qty 20+

0

21

Exmark 146-3396

LIGHT-ROCK

$69.99

$

Usually ships in 0 days

0

22

Exmark 104-2408

Screw-HSBH

$2.99

$

Usually ships in 3-6 days

0

23

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 16

0

24

Exmark 146-1950

THROTTLE CONTROLLER-ETC

$121.99

$

Usually ships in 0 days

0

25

Exmark 1-643267

INDICATOR-LED, RED

$26.99

$

In Stock, only 4 left!

0

26

Exmark 1-807513

BOLT-CARR

$2.99

$

In Stock, Qty 16

0

27

Exmark 3255-8

WASHER-LOCK

$0.99

$

In Stock, only 3 left!

0

28

Exmark 33114-020

SCREW-HH

$0.99

$

In Stock, Qty 9

0

29

Exmark 33014-00

NUT-HEX

$0.99

$

In Stock, Qty 20+

0

30

Exmark 1-303287

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

31

Exmark 3290-277

Nut-Speed

$0.99

$

Usually ships in 3-6 days

0
