LRX820AKA606Q1 - Exmark 60" Lazer Z X-Series Zero-Turn Mower, Kawasaki FX820V (SN: 417930746 & Above) (Rev A) (2025) Fuel Assembly Parts Diagram

60" Lazer Z X-Series Zero-Turn Mower, Kawasaki FX820V

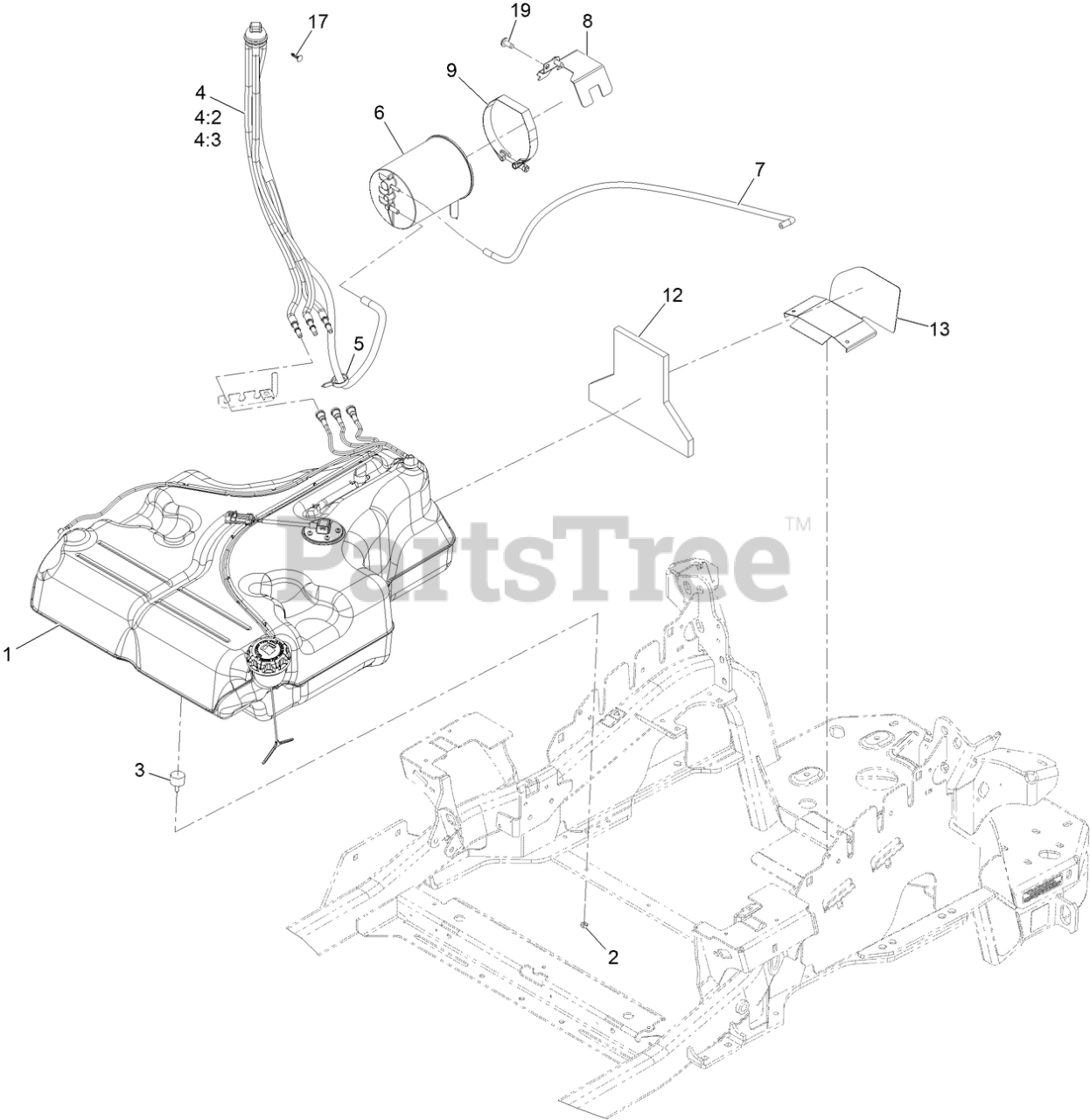

Fuel Assembly Parts Diagram

  • Title

1

Exmark 135-0643

FUEL TANK ASM

$847.99

$

Usually ships in 3-6 days

0

2

Exmark 3218-1

NUT-JAM

$1.49

$

In Stock, only 4 left!

0

3

Exmark 1-523420

BUMPER

$15.99

$

Usually ships in 3-6 days

0

4

Exmark 127-0583

FUEL MANIFOLD VENT ASM

$77.99

$

Usually ships in 3-6 days

0

4:2

Exmark 109-0302

HOSE-FUEL

$13.99

$

In Stock, only 2 left!

0

4:3

Exmark 108-5376

HOSE-FUEL

$46.99

$

In Stock, only 1 left!

0

5

Exmark 105-1853

CLAMP-HOSE

$5.49

$

In Stock, only 2 left!

0

6

Exmark 116-1442

CANISTER-CARBON, 1200CC

$169.99

$

Usually ships in 3-6 days

0

7

Exmark 51-3212

HOSE-FUEL

$17.99

$

In Stock, only 1 left!

0

8

Exmark 146-4026-01

Mount-Canister

$9.99

$

Usually ships in 0 days

0

9

Exmark 116-2228

CLAMP, T-BOLT

$49.99

$

Usually ships in 3-6 days

0

12

Exmark 126-0224

INSULATION-FOAM, FUEL TANK

$10.99

$

Usually ships in 3-6 days

0

13

Exmark 126-0032-01

GUARD-EXHAUST

$30.99

$

Usually ships in 3-6 days

0

17

Exmark 125-8067

PLUG-PLASTIC

$0.99

$

Usually ships in 3-6 days

0

19

Exmark 138-9753

SCREW

$1.49

$

In Stock, Qty 6

0
