LRX820AKA606Q1 - Exmark 60" Lazer Z X-Series Zero-Turn Mower, Kawasaki FX820V (SN: 417930746 & Above) (Rev A) (2025) Seat Assembly Parts Diagram

60" Lazer Z X-Series Zero-Turn Mower, Kawasaki FX820V

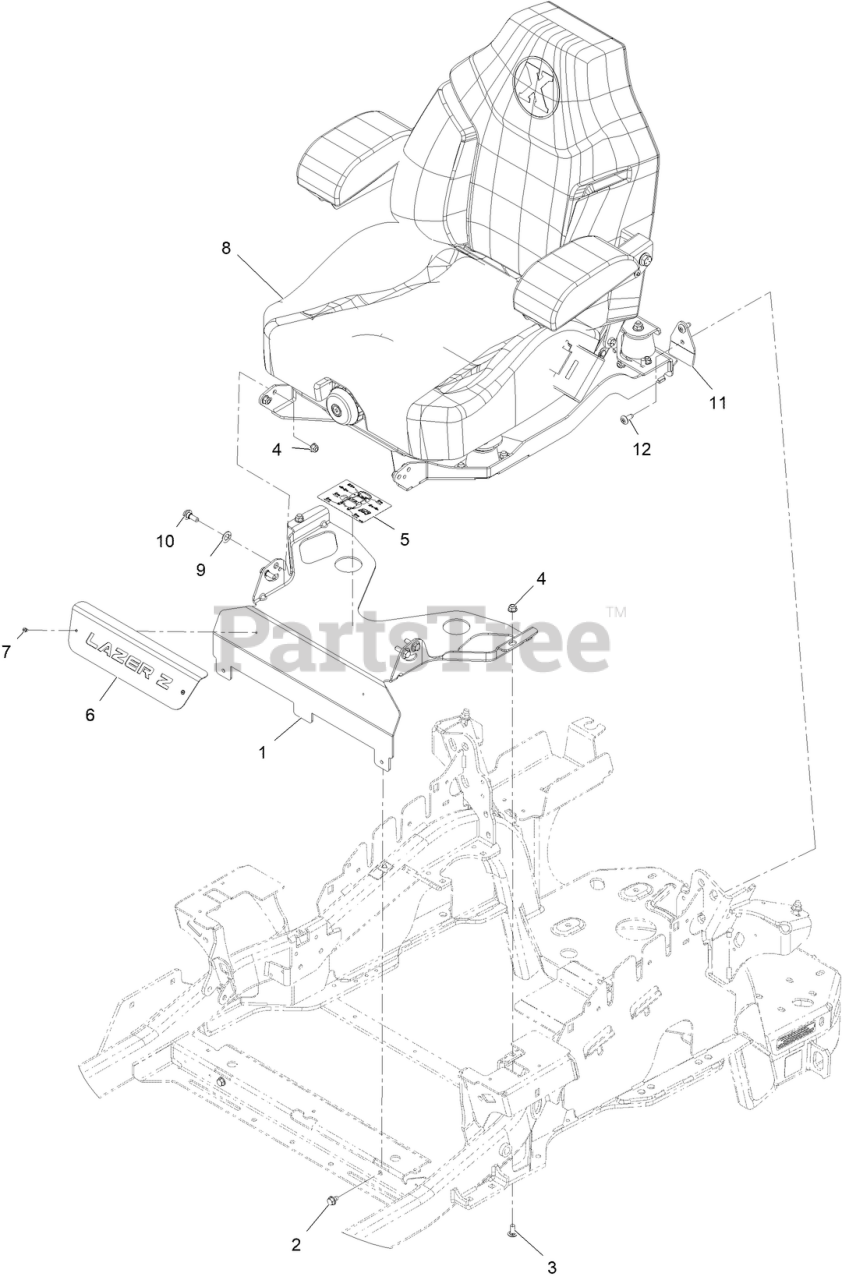

Seat Assembly Parts Diagram

  • Title

1

Exmark 146-4027-03

SUPPORT-SEAT

$47.99

$

Usually ships in 0 days

0

2

Exmark 9266934

SCREW

$9.49

$

In Stock, only 4 left!

0

3

Exmark 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

4

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 10

0

5

Exmark 114-4465

DECAL-SERVICE AID

$31.99

$

Usually ships in 3-6 days

0

6

Exmark 146-3930-01

PLATE-ACCENT HEEL

$

$

Not available

7

Exmark 125-0519

SCREW-PPH,SHEET METAL

$1.99

$

In Stock, only 2 left!

0

8

ASM-Seat Suspension

Note: Not serviced separately

$

$

Not available

9

Exmark 110-7191

WASHER-THRUST

$2.99

$

In Stock, Qty 20+

0

10

Exmark 116-1297

SCREW-SHOULDER

$5.49

$

Usually ships in 3-6 days

0

11

Exmark 146-4113

LATCH-SEAT, UPPER

$2.49

$

Usually ships in 0 days

0

12

Exmark 138-9753

SCREW

$1.49

$

In Stock, Qty 6

0
