LRX820AKA726Q1 - Exmark 72" Lazer Z X-Series Zero-Turn Mower, Kawasaki FX820V (SN: 417930746 & Above) (Rev C) (2025) Seat Assembly Parts Diagram
72" Lazer Z X-Series Zero-Turn Mower, Kawasaki FX820V

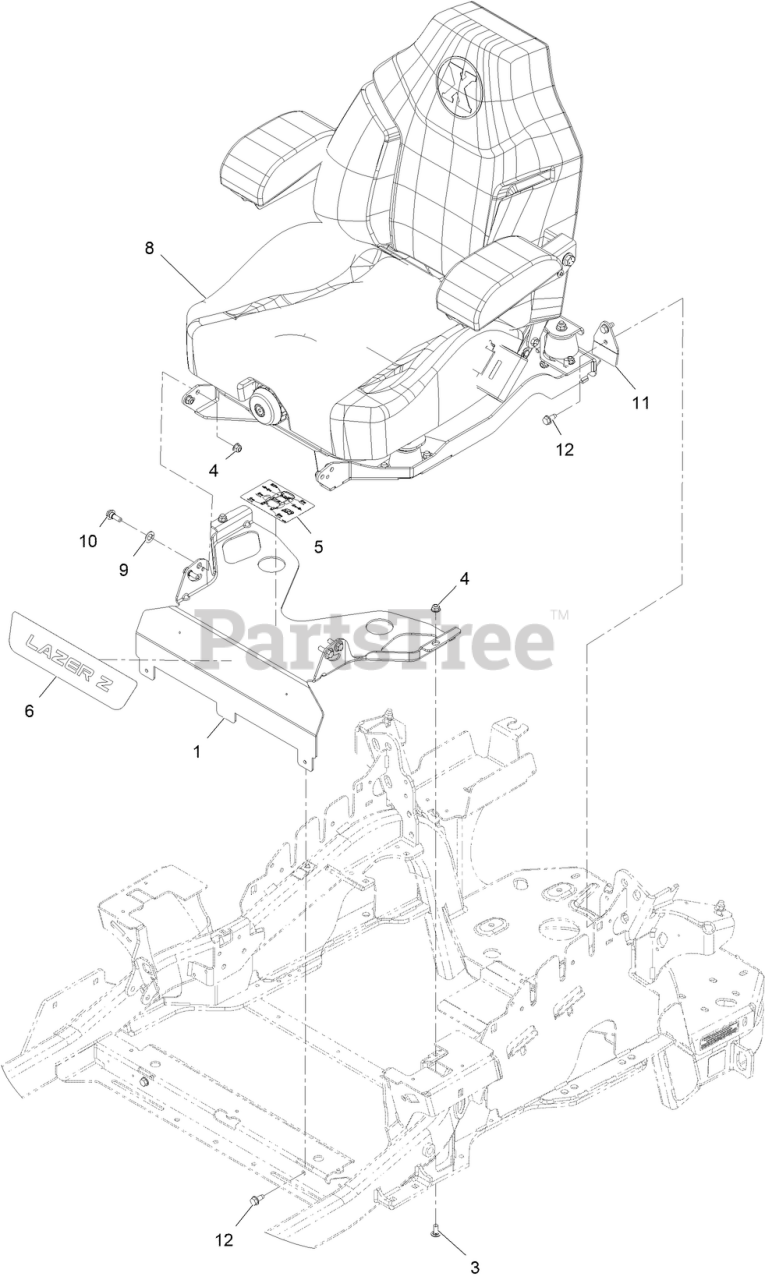

Seat Assembly Parts Diagram
Exmark 146-4027-03
SUPPORT-SEAT
$47.99
$
Usually ships in 3-6 days
Exmark 3230-23
SCREW-CARR
$1.49
$
In Stock, Qty 20+
Exmark 104-8300
NUT-HF, NI
$1.49
$
In Stock, Qty 20+
Exmark 114-4465
DECAL-SERVICE AID
$31.99
$
Usually ships in 3-6 days
Exmark 146-6123
Decal-Lazer Logo
$15.99
$
Usually ships in 3-6 days
8
ASM-Seat Suspension
Note: Not serviced separately
$
$
Not available
Exmark 110-7191
WASHER-THRUST
$2.99
$
In Stock, Qty 20+
Exmark 116-1297
SCREW-SHOULDER
$5.49
$
Usually ships in 3-6 days
Exmark 146-4113
LATCH-SEAT, UPPER
$2.49
$
Usually ships in 3-6 days
Exmark 32144-70
Screw-HWH 5/16-18 X 3/4 Tf
$2.99
$
In Stock, Qty 9
