LRX980EKC606Q1 - Exmark 60" Lazer Z X-Series Zero-Turn Mower, Kohler EKC980 (SN: 417930746 & Above) (Rev A) (2025) Engine Assembly Parts Diagram

60" Lazer Z X-Series Zero-Turn Mower, Kohler EKC980

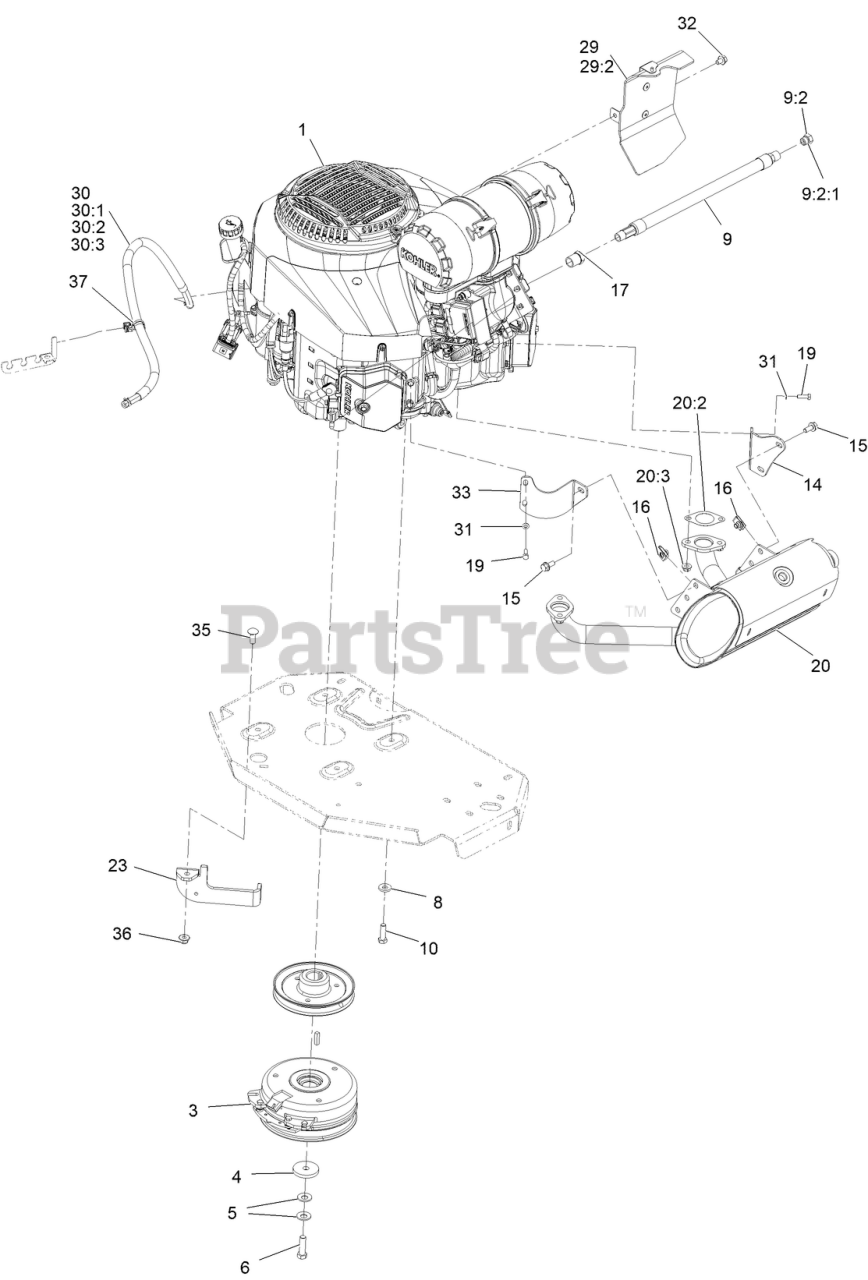

Engine Assembly Parts Diagram

  • Title

1

Engine-Kohler Ecv980-3028

Note: Not serviced separately | Obtain parts from www.kohlerplus.com

$

$

Not available

3

Exmark 126-4185

CLUTCH KIT

$754.99

$

In Stock, only 1 left!

0

4

Exmark 109-6919

WASHER-CLUTCH

$8.99

$

In Stock, Qty 5

0

5

Exmark 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 7

0

6

Exmark 109-9761

SCREW-HH 7/16-20 X 1 1/2 W/LOCTITE

$5.49

$

In Stock, only 1 left!

0

8

Exmark 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

9

Exmark 116-5316

OIL DRAIN HOSE ASM

$60.99

$

In Stock, Qty 15

0

9:2

Exmark 353-508

PLUG-HH

Note: Torque to 24-26 ft-lb

$9.49

$

In Stock, only 2 left!

0

9:2:1

Exmark 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0

10

Exmark 323-7

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

14

Exmark 116-9048

BRACKET-MUFFLER

$23.99

$

Usually ships in 3-6 days

0

15

Exmark 3234-5

SCREW-HHF

$1.49

$

In Stock, Qty 20+

0

16

Exmark 94-2413

NUT-U

$2.99

$

In Stock, Qty 14

0

17

Exmark 103-1390

BUSHING

$6.99

$

Usually ships in 3-6 days

0

19

Exmark 116-4295

SCREW-HH M6-1 X 20Mm W/Patch

$5.49

$

In Stock, only 3 left!

0

20

Exmark 126-4645

MUFFLER-940-980 KOH EFI

$604.99

$

Usually ships in 3-6 days

0

20

Exmark 126-5423

MUFFLER KIT

$727.99

$

Usually ships in 3-6 days

0

20:2

Exmark 126-0359

GASKET-EXHAUST

$5.99

$

Usually ships in 3-6 days

0

20:3

Exmark 116-9626

NUT-FLANGE, LOCK

$1.49

$

Usually ships in 3-6 days

0

23

Exmark 146-4184-01

Bracket-Clutch Anchor

$14.99

$

Usually ships in 0 days

0

29

Exmark 135-7328

Baffle Kit

$119.99

$

Usually ships in 3-6 days

0

29:2

Exmark 104-2628

SCREW-HWH

$1.99

$

In Stock, Qty 7

0

29:2

Exmark 68-9410

Screw-HHF

$9.49

$

Usually ships in 3-6 days

0

30

Exmark 126-0231

FUEL LINE ASM

$30.99

$

Usually ships in 3-6 days

0

30:1

Exmark 109-0284

HOSE-FUEL

$13.99

$

Usually ships in 3-6 days

0

30:2

Exmark 126-0232

SLEEVE, THERMAL

$15.99

$

Usually ships in 3-6 days

0

30:3

Exmark 2412-98

CLAMP-HOSE

$1.99

$

In Stock, Qty 20+

0

31

Exmark 1-303435

WASHER-SPRING

$1.99

$

In Stock, Qty 20+

0

32

Exmark 68-9410

Screw-HHF

$9.49

$

Usually ships in 3-6 days

0

33

Exmark 126-5620

BRACKET-MUFFLER, FRONT

$18.99

$

Usually ships in 3-6 days

0

35

Exmark 3231-22

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

36

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

37

Exmark 32180-078

Clip-Edge

$5.99

$

Usually ships in 3-6 days

0
