LRX980EKC606Q1 - Exmark 60" Lazer Z X-Series Zero-Turn Mower, Kohler EKC980 (SN: 417930746 & Above) (Rev A) (2025) Hydraulic Assembly Parts Diagram

60" Lazer Z X-Series Zero-Turn Mower, Kohler EKC980

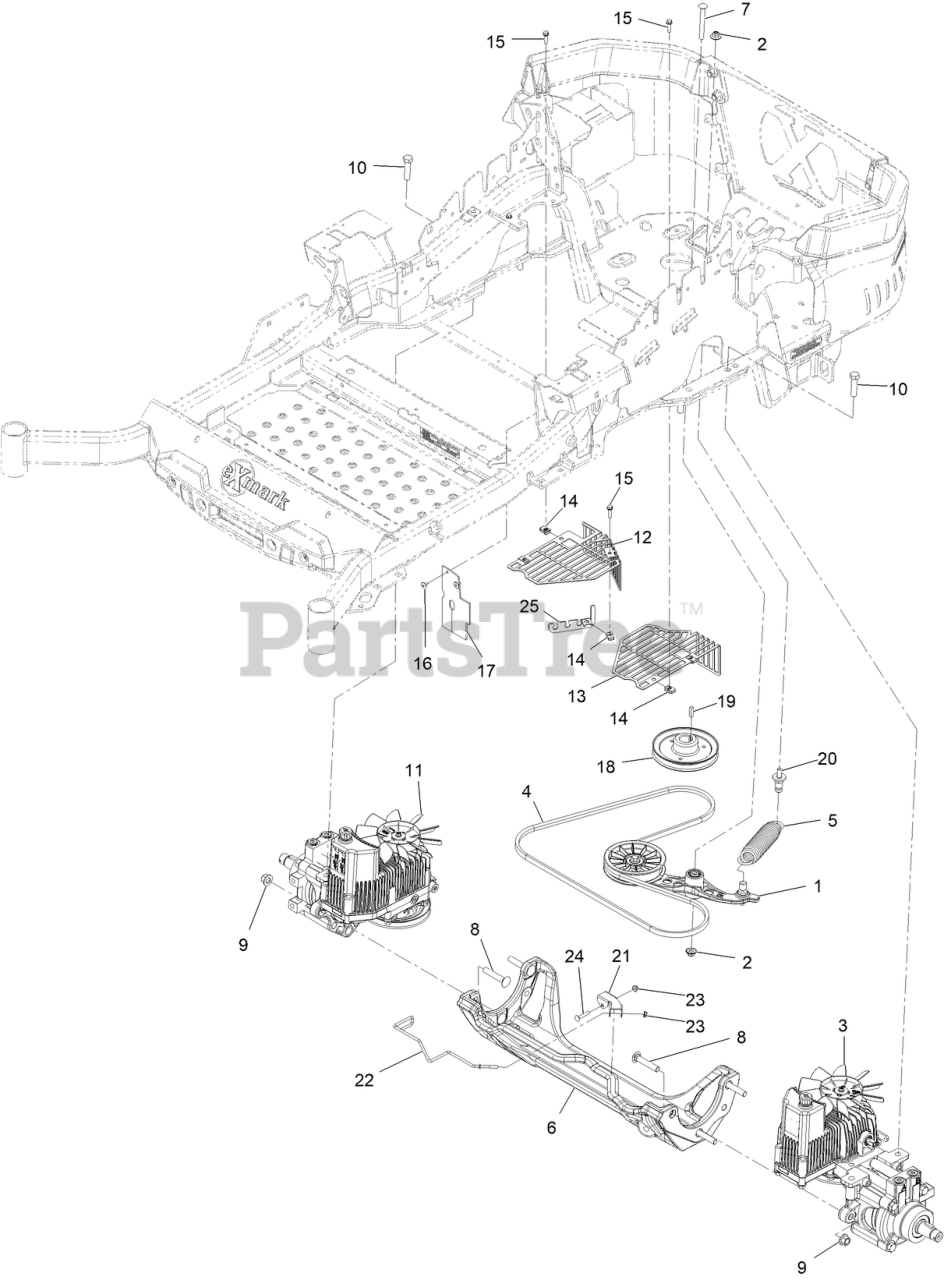

Hydraulic Assembly Parts Diagram

  • Title

1

Exmark 116-1255

PUMP IDLER ASM

$230.99

$

In Stock, only 1 left!

0

2

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

3

Exmark 135-7907

HYDRO-LH

$3754.99

$

Usually ships in 3-6 days

0

4

Exmark 126-9835

Belt-V

$47.99

$

In Stock, Qty 10

0

5

Exmark 116-6317

SPRING-EXTENSION

$30.99

$

In Stock, Qty 16

0

6

Exmark 116-7558

CRADLE-HYDRO

$249.99

$

In Stock, only 1 left!

0

7

Exmark 116-1502

BOLT-SHOULDER, CARRIAGE 3/8-16 X 3 1/2

$8.49

$

In Stock, only 2 left!

0

8

Exmark 126-0095

SCREW-CARR

$2.99

$

In Stock, Qty 11

0

9

Exmark 99-5107

Nut-Lock 1/2-13

$2.49

$

In Stock, Qty 15

0

10

Exmark 325-8

SCREW-HH

$5.99

$

In Stock, only 3 left!

0

11

Exmark 135-7908

HYDRO-RH

$3754.99

$

Usually ships in 3-6 days

0

12

Exmark 146-5711-03

SHROUD-RH HYDRO

$41.99

$

Usually ships in 0 days

0

13

Exmark 146-6146-03

Shroud-LH Hydro [black]

$

$

Currently unavailable

14

Exmark 107069

CLIP

$2.99

$

In Stock, Qty 20+

0

15

Exmark 120-4654

SCREW-HHF

$6.49

$

Usually ships in 3-6 days

0

16

Exmark 1-803035

RIVET-POP

$1.49

$

In Stock, Qty 10

0

17

Exmark 116-2362

DEFLECTOR-AIR FLOW

$6.99

$

Usually ships in 3-6 days

0

18

Exmark 146-4626

SHEAVE-W/ HUB 5.81

$39.99

$

Usually ships in 0 days

0

19

Exmark 1-807259

KEY

$2.49

$

In Stock, only 3 left!

0

20

Exmark 146-3603

Pin-Spring, Anchor

$6.99

$

Usually ships in 0 days

0

21

Exmark 146-5102

Bracket-U

$5.49

$

Usually ships in 0 days

0

22

Exmark 146-5103

Guide-Belt

$12.99

$

Usually ships in 0 days

0

23

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

24

Exmark 3229-4

SCREW-CARR

$1.49

$

In Stock, only 2 left!

0

25

Exmark 146-5713

Clip-Vent Lines

$

$

Currently unavailable

99

Exmark 109-9828

OIL-HYD, (QUART)

Note: Not illustrated

$18.99

$

In Stock, Qty 20+

0

99

Exmark 116-0164

FILTER-HYDRO

Note: Not illustrated

$76.99

$

In Stock, Qty 20+

0

99

Exmark 116-1218

OIL-HYD, 1 GALLON

Note: Not illustrated

$71.99

$

In Stock, Qty 20+

0

99

Exmark 126-8103

KIT-HYDRO SERVICE, NO BELT

Note: Not illustrated

$269.99

$

In Stock, Qty 8

0
