LRX993EBX606Q1 - Exmark 60" Lazer Z X-Series Zero-Turn Mower, 993cc Vanguard (SN: 417930746 & Above) (Rev A) (2025) Engine Assembly Parts Diagram

60" Lazer Z X-Series Zero-Turn Mower, 993cc Vanguard

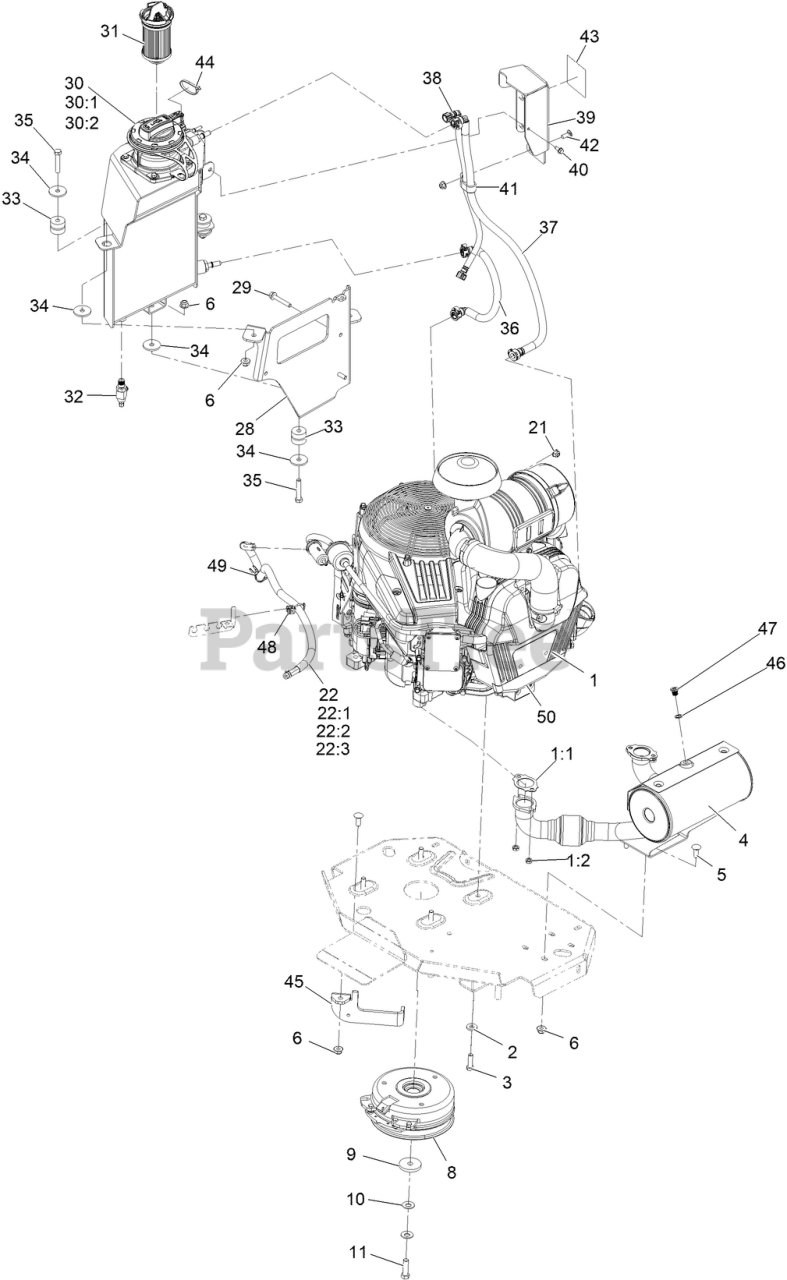

Engine Assembly Parts Diagram

  • Title

1

Engine Vanguard EFI

Note: Not serviced separately

$

$

Not available

1:1

Exmark 142-6842

GASKET-EXHAUST

$6.99

$

Usually ships in 3-6 days

0

1:2

Exmark 142-6843

NUT-HEX

$5.99

$

Usually ships in 3-6 days

0

2

Exmark 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

3

Exmark 323-7

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

4

Exmark 142-5876

MUFFLER

$410.99

$

Usually ships in 3-6 days

0

5

Exmark 3231-22

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

6

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

8

Exmark 126-4185

CLUTCH KIT

$754.99

$

In Stock, only 1 left!

0

9

Exmark 109-6919

WASHER-CLUTCH

$8.99

$

In Stock, Qty 5

0

10

Exmark 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 5

0

11

Exmark 109-9761

SCREW-HH 7/16-20 X 1 1/2 W/LOCTITE

$5.49

$

In Stock, only 2 left!

0

21

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

22

Exmark 126-0231

FUEL LINE ASM

$30.99

$

Usually ships in 3-6 days

0

22:1

Exmark 109-0284

HOSE-FUEL

$13.99

$

Usually ships in 3-6 days

0

22:2

Exmark 126-0232

SLEEVE, THERMAL

$15.99

$

Usually ships in 3-6 days

0

22:3

Exmark 2412-98

CLAMP-HOSE

$1.99

$

In Stock, Qty 20+

0

28

Exmark 142-6608

Mount-Tank, Oil

$

$

Currently unavailable

29

Exmark 142-6275

SCREW-HHF

$2.49

$

Usually ships in 3-6 days

0

30

Exmark 142-6840

RESERVOIR-OIL

$

$

Not available

30:1

Exmark 142-7452

OIL DIPSTICK ASM

$30.99

$

In Stock, only 1 left!

0

30:2

Exmark 142-7453

OIL TANK CAP ASM

$40.99

$

Usually ships in 3-6 days

0

31

Exmark 142-6841

FILTER-OIL

$51.99

$

In Stock, Qty 6

0

32

Exmark 103-6602

VALVE-OIL DRAIN

$94.99

$

Usually ships in 3-6 days

0

33

Exmark 142-6009

ISOLATOR-TANK

$25.99

$

Usually ships in 3-6 days

0

34

Exmark 1-213069

WASHER

$2.99

$

In Stock, Qty 20+

0

35

Exmark 323-10

SCREW-HH

$1.49

$

In Stock, Qty 6

0

36

Exmark 142-7420

HOSE-SUPPLY

$25.99

$

Usually ships in 3-6 days

0

37

Exmark 142-7421

HOSE-SCAVENGE

$73.99

$

Usually ships in 3-6 days

0

38

Exmark 142-6393

HOSE-VENT

$26.99

$

Usually ships in 3-6 days

0

39

Exmark 142-6731-03

GUARD-HOSE

$30.99

$

Usually ships in 3-6 days

0

40

Exmark 32144-10

SCREW-HWH

$4.99

$

In Stock, Qty 8

0

41

Exmark 120-1959

CLAMP

$3.99

$

Usually ships in 3-6 days

0

42

Exmark 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

43

Exmark 142-7806

DECAL-OIL GUARD

$5.49

$

Usually ships in 3-6 days

0

44

Exmark 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 9

0

45

Exmark 146-4184-01

Bracket-Clutch Anchor

$14.99

$

Usually ships in 3-6 days

0

46

Exmark 139-3385

Washer-Copper

$

$

Currently unavailable

47

Exmark 139-3390

Plug-HSH

$

$

Currently unavailable

48

Exmark 32180-078

Clip-Edge

$5.99

$

Usually ships in 3-6 days

0

49

Exmark 32180-082

Clip-Edge W/Tie, Perpendicular

$6.99

$

Usually ships in 3-6 days

0

50

Exmark 146-5949

Shield-Heat, 993

$

$

Currently unavailable
