LRX993EBX606Q1 - Exmark 60" Lazer Z X-Series Zero-Turn Mower, 993cc Vanguard (SN: 417930746 & Above) (Rev A) (2025) Rear Cage Assembly Parts Diagram

60" Lazer Z X-Series Zero-Turn Mower, 993cc Vanguard

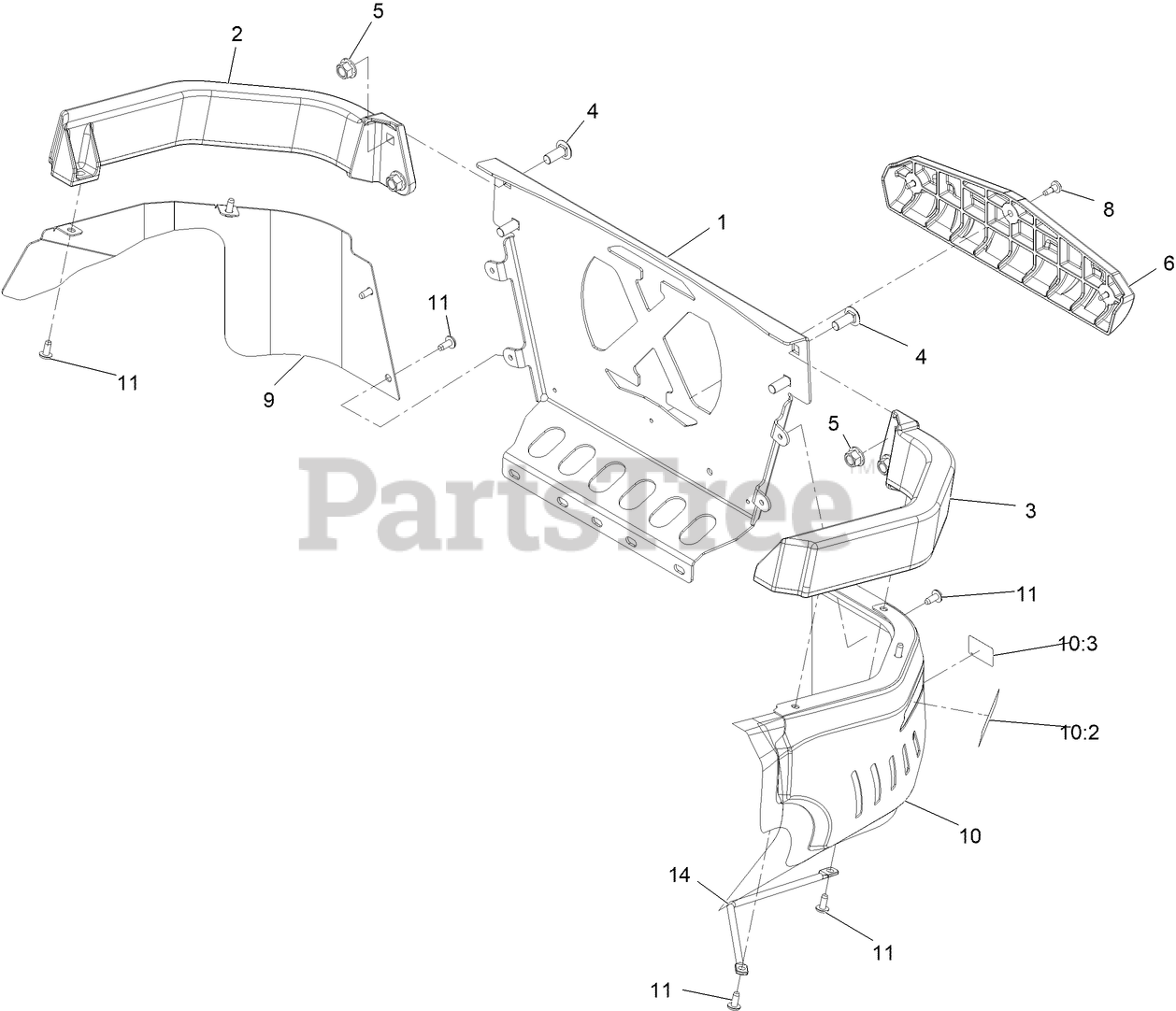

Rear Cage Assembly Parts Diagram

  • Title

1

Exmark 146-5373-01

PLATE-REAR

$122.99

$

Usually ships in 0 days

0

2

Exmark 146-4013-01

SIDE-CAGE, RT

$38.99

$

Usually ships in 0 days

0

3

Exmark 146-4014-01

SIDE-CAGE, LT

$38.99

$

Usually ships in 0 days

0

4

Exmark 3233-26

SCREW-CARR, SHORT NECK

$2.99

$

Usually ships in 3-6 days

0

5

Exmark 99-5107

Nut-Lock 1/2-13

$2.49

$

In Stock, Qty 15

0

6

Exmark 146-2990

BUMPER-REAR

$21.99

$

Usually ships in 0 days

0

8

Exmark 135-2015

SCREW-SHOULDER

$3.99

$

Usually ships in 3-6 days

0

9

Exmark 146-5004

Panel-Quarter RH

$

$

Currently unavailable

10

Exmark 146-4946

PANEL-QUARTER, LH ASM

$115.99

$

Usually ships in 0 days

0

10:2

Exmark 146-4048

DECAL-X-SERIES

$4.49

$

Usually ships in 0 days

0

10:3

Exmark 106-5517

DECAL-WARNING

$5.49

$

In Stock, only 1 left!

0

11

Exmark 138-9753

SCREW

$1.49

$

In Stock, Qty 6

0

14

Exmark 146-4455

GUARD-MUFFLER WIREFORM

$6.99

$

Usually ships in 0 days

0
