LRX993EBX726Q1 - Exmark 72" Lazer Z X-Series Zero-Turn Mower, 993cc Vanguard (SN: 417930746 & Above) (Rev A) (2025) Main Frame Assembly Parts Diagram

72" Lazer Z X-Series Zero-Turn Mower, 993cc Vanguard

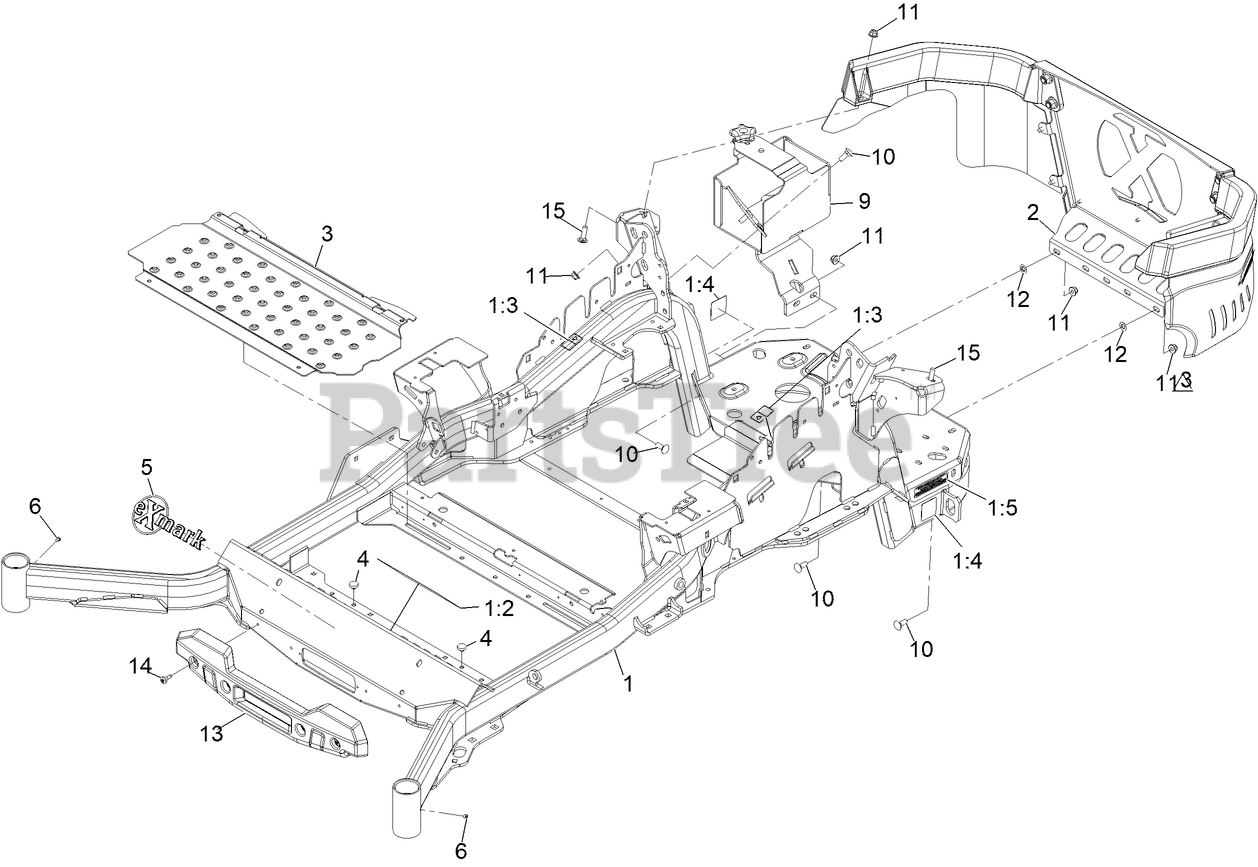

Main Frame Assembly Parts Diagram

  • Title

1

Exmark 146-6176

ASM-Mainframe W/Decals

$3409.99

$

Usually ships in 3-6 days

0

1:2

Exmark 132-0871

DECAL-DANGER

$10.99

$

In Stock, only 2 left!

0

1:3

Exmark 106-5517

DECAL-WARNING

$5.49

$

Usually ships in 3-6 days

0

1:4

Exmark 106-2655

DECAL-HAZARD, PINCHED FINGER

$1.99

$

Usually ships in 3-6 days

0

1:5

Exmark 133-8062

DECAL-ARRESTOR, SPARK

$3.49

$

Usually ships in 3-6 days

0

2

Cage-Rear [oil Guard]

Note: Not serviced separately

$

$

Not available

3

Exmark 116-8898-01

FLOORPAN

$115.99

$

Usually ships in 3-6 days

0

4

Exmark 1-513658

BUMPER

$6.99

$

In Stock, Qty 7

0

5

Exmark 146-5196

EMBLEM-EXMARK

$32.99

$

Usually ships in 3-6 days

0

6

Exmark 1-811010

PLUG

$5.99

$

In Stock, Qty 9

0

9

Exmark 146-3673

ASM-Battery Box

$192.99

$

Usually ships in 3-6 days

0

10

Exmark 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

11

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

12

Exmark 107-3154

NUT-PUSH

$1.49

$

In Stock, Qty 5

0

13

Exmark 146-3434

BUMPER-FRONT

$31.99

$

Usually ships in 3-6 days

0

14

Exmark 135-2015

SCREW-SHOULDER

$3.99

$

Usually ships in 3-6 days

0

15

Exmark 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 15

0
