LRXE 4500 (UT-03821) - Homelite Generator Control Panel Parts Diagram

Generator

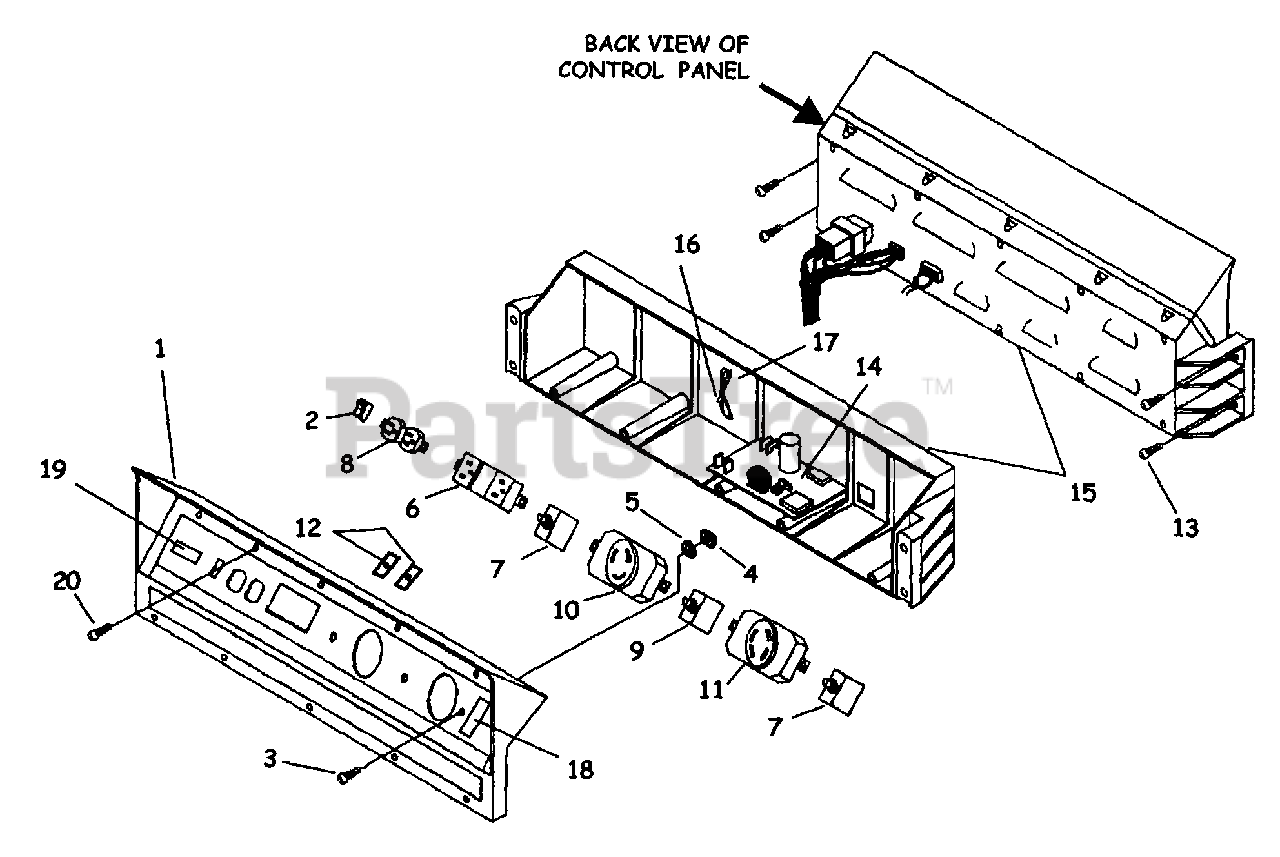

Control Panel Parts Diagram

  • Title

1

Homelite UP03528

Control Panel
(Superseded to A07101A)

Note: (Incl. items 2 - 6)

$

$

Not available

2

Homelite 02497

Switch
(Superseded to 985703001)

$

$

Not available

3

Homelite 80577

Screw - Pan Hd. (8-32 X 7/8")
(Superseded to UP03389)

$

$

Not available

4

Homelite 81009

Nut - Hex

$

$

Not available

5

Homelite 83022

Washer - Lock
(Superseded to UP03410)

$

$

Not available

6

Homelite UP03110

Receptacle (GFCI)

$

$

Currently unavailable

7

Homelite 09183

Circuit Breaker (20 amp)

$

$

Not available

8

Homelite 51373

Receptacle - Duplex

$

$

Not available

9

Homelite 06692A

Circuit Breaker (30 amp)
(Superseded to 49814)

$

$

Not available

10

Homelite 42601

Receptacle - Locking (120V)

$

$

Not available

11

Homelite 46508

Receptacle - Locking (240V)

$

$

Not available

12

Homelite 98792

Rubber Bumper

$1.49

$

In Stock, only 3 left!

0

13

Homelite 96620

Screw - Torx Hd. (10-24 X 1/2")

$2.99

$

Usually ships in 3-7 days

0

14

Homelite UP00087

Control Board

$

$

Not available

15

Homelite 066461

Control Panel Back
(Superseded to UP03466)

$

$

Not available

16

Homelite 06655

Clip, Tie
(Superseded to UP03468)

$

$

Not available

17

Homelite 04805

Tie, Cable
(Superseded to R44302)

$

$

Not available

18

Homelite UP04800

Volt Meter

$

$

Not available

19

Homelite UP04799

Hour Meter

$

$

Not available

20

Homelite 82536

Screw, Plastite (8-16 X 3/4")

$

$

Not available
