LRXE 4500 (UT-03821) - Homelite Generator Ignition Parts Diagram

Generator

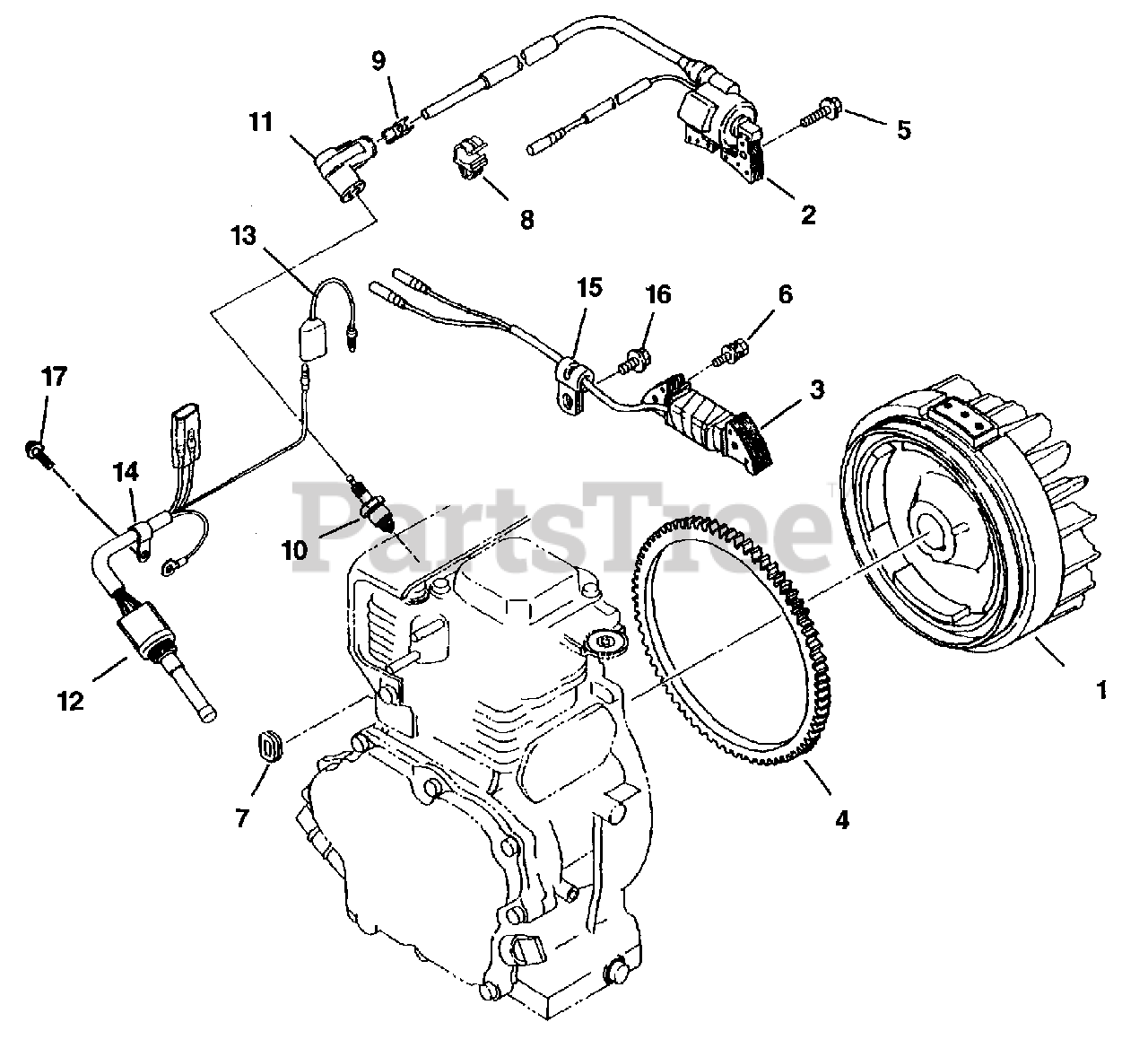

Ignition Parts Diagram

  • Title

1

Homelite UP04477

Flywheel

$

$

Not available

2

Homelite UP04478

Ignition coil

$

$

Not available

3

Homelite UP04479

Charge coil

$

$

Not available

4

Homelite UP04480

Ring gear

$

$

Not available

5

Homelite UP03293

Bolt & washer M6 x 25

Note: (Torque to 15 - 20 in/lbs [1.7 - 2.3 Nm])

$

$

Not available

6

Homelite UP04481

Screw & washer M6 x 20

Note: (Torque to 15 - 20 in/lbs [1.7 - 2.3 Nm])

$

$

Currently unavailable

7

Homelite UP03348

Grommet

$

$

Not available

8

Homelite UP04066

Clamp

$

$

Not available

9

Homelite UP03356

Plug terminal

$

$

Not available

10

Homelite UP04484

Spark plug

Note: (Torque to 166 - 195 in/lbs [18.8 - 22.0 Nm])

$

$

Not available

11

Homelite UP03351

Spark plug cap

$

$

Not available

12

Homelite UP04526

Oil sensor

$

$

Not available

13

Homelite UP03354

Wire 22

$

$

Not available

14

Homelite UP04070

Clamp

$

$

Not available

15

Homelite UP03349

Clamp

$

$

Not available

16

Homelite UP04497

Panhead screw

Note: (Torque to 15 - 20 in/lbs [1.7 - 2.3 Nm])

$

$

Not available

17

Homelite UP03353

Bolt & washer

$

$

Not available
