LS-1827 - Toro Challenger Walk-Behind Mower (1967) PARTS LIST FOR REO MOWER-CHALLENGER MODEL LS-1827 Parts Diagram

Challenger Walk-Behind Mower

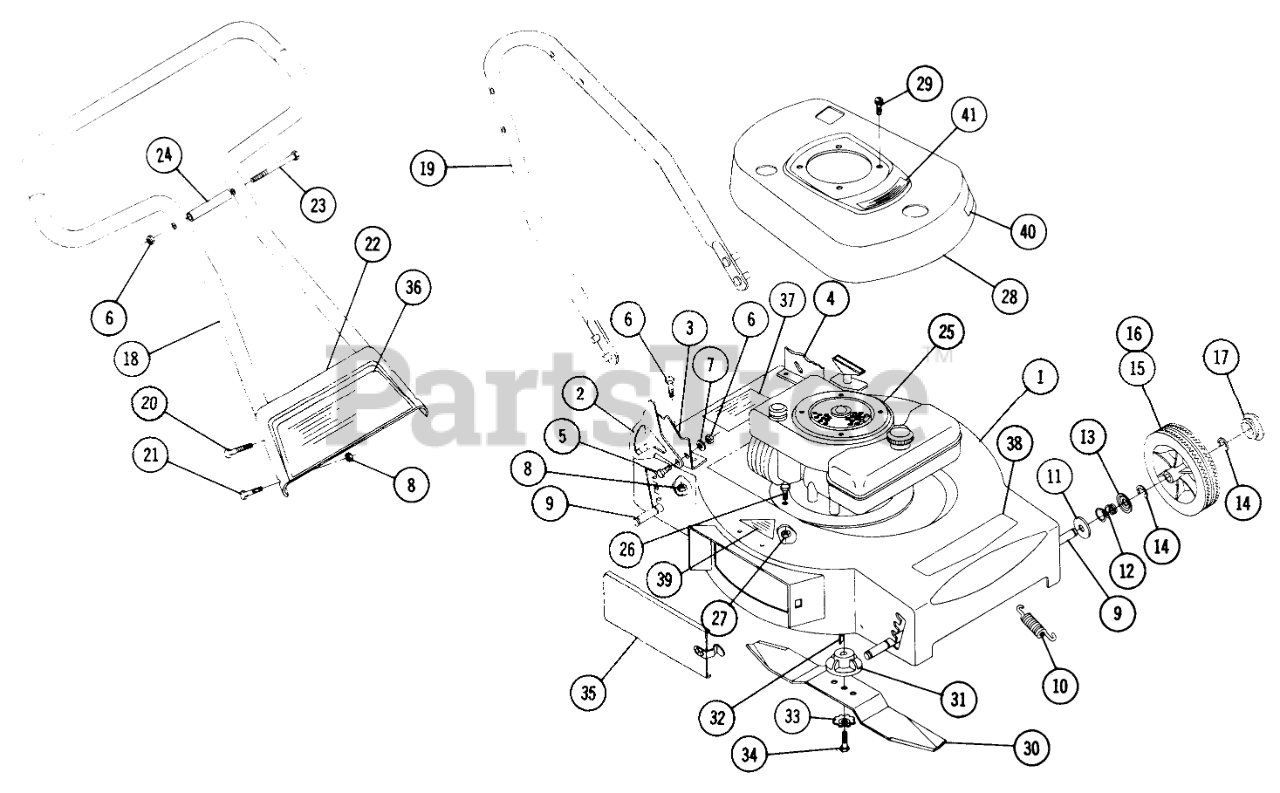

PARTS LIST FOR REO MOWER-CHALLENGER MODEL LS-1827 Parts Diagram

  • Title

1

Toro 7190

Ass-y. Deck

$

$

Currently unavailable

2

Toro 7090

Latch-Handle Mounting

$

$

Currently unavailable

3

Toro 7088

Bracket Handle R.H.

$

$

Currently unavailable

4

Toro 7089

Bracket Handle L.H.

$

$

Currently unavailable

5

Toro 908002-4

Bolt-1/4-20 x 5/8

$

$

Currently unavailable

6

Toro 915111-6

Nut-Nylok

$

$

Currently unavailable

7

Toro 920007-4

Washer

$

$

Currently unavailable

8

Toro 960008-4

Nut Hex 5/4-20 Nylok

$

$

Currently unavailable

9

Toro MW-8640

Shaft-Axle

$

$

Currently unavailable

10

Toro MW-8402

Spring-Idler

$

$

Currently unavailable

11

Toro 920213-4

Washer

$

$

Currently unavailable

12

Toro 5363

Spring-Wheel

$

$

Currently unavailable

13

Toro MW-5191

Washer-Cup

$

$

Currently unavailable

14

Toro MW-4564

Lock Rod

$

$

Currently unavailable

15

Toro 6316

Wheel-Rear 8"

$

$

Currently unavailable

16

Toro 6315

Wheel-Front 7"

$

$

Currently unavailable

17

Toro 6287

Hubcap

$

$

Currently unavailable

18

Toro 7099

Handle, Upper

$

$

Currently unavailable

19

Toro 7192

Ass-y. Handle-Lower

$

$

Currently unavailable

20

Toro 908007-4

Bolt 1/4-20 x 1 1/2

$

$

Currently unavailable

21

Toro 908006-4

Bolt 1/4 20 x 1 1/4

$

$

Currently unavailable

22

Toro 7101

Shield-Handle

$

$

Currently unavailable

23

Toro 908148-4

Bolt Hex 1/4-20 x 4 1/2

$

$

Currently unavailable

24

Toro 7102

20210 '60&UP 21 SP

$

$

Not available

25

Toro 7193

Engine-2 Cycle

$

$

Currently unavailable

26

Toro 908016-4

Bolt Hex 5/16-18

$

$

Currently unavailable

27

Toro 915112-6

Nut-Nylok

$

$

Currently unavailable

28

Toro 7113

Shroud-Engine

$

$

Currently unavailable

29

Toro 910487-4

Screw Sems 1/4-28 x 3/8

$

$

Currently unavailable

30

Toro MW-8034

Blade 18" Rotary

$

$

Currently unavailable

31

Toro MW-7726

Drive Blade

$

$

Currently unavailable

32

Toro 937010

WOODRUFF KEY

$0.99

$

Usually ships in 3-6 days

0

33

Toro 1336

WASHER

$

$

Not available

34

Toro 908184-5

Bolt 3/8-24 x 1 1/4 Nylok

$

$

Currently unavailable

35

Toro MW-8690

Ass-y. Plate-Mulching

$

$

Currently unavailable

36

Toro 7178

Decal-Shield
(Superseded to 83-3410)

$

$

Not available

37

Toro 6332

4XC6485 GIS ROTARY

$3.23

$

Usually ships in 3-6 days

0

38

Toro 7181

Decal-Reo Logo

$

$

Currently unavailable

39

Toro 6181

Decal-Caution
(Superseded to 704093)

$

$

Not available

40

Toro 7111

Decal-Shroud-Throttle

$

$

Currently unavailable

41

Toro 7110

Decal

$

$

Currently unavailable
