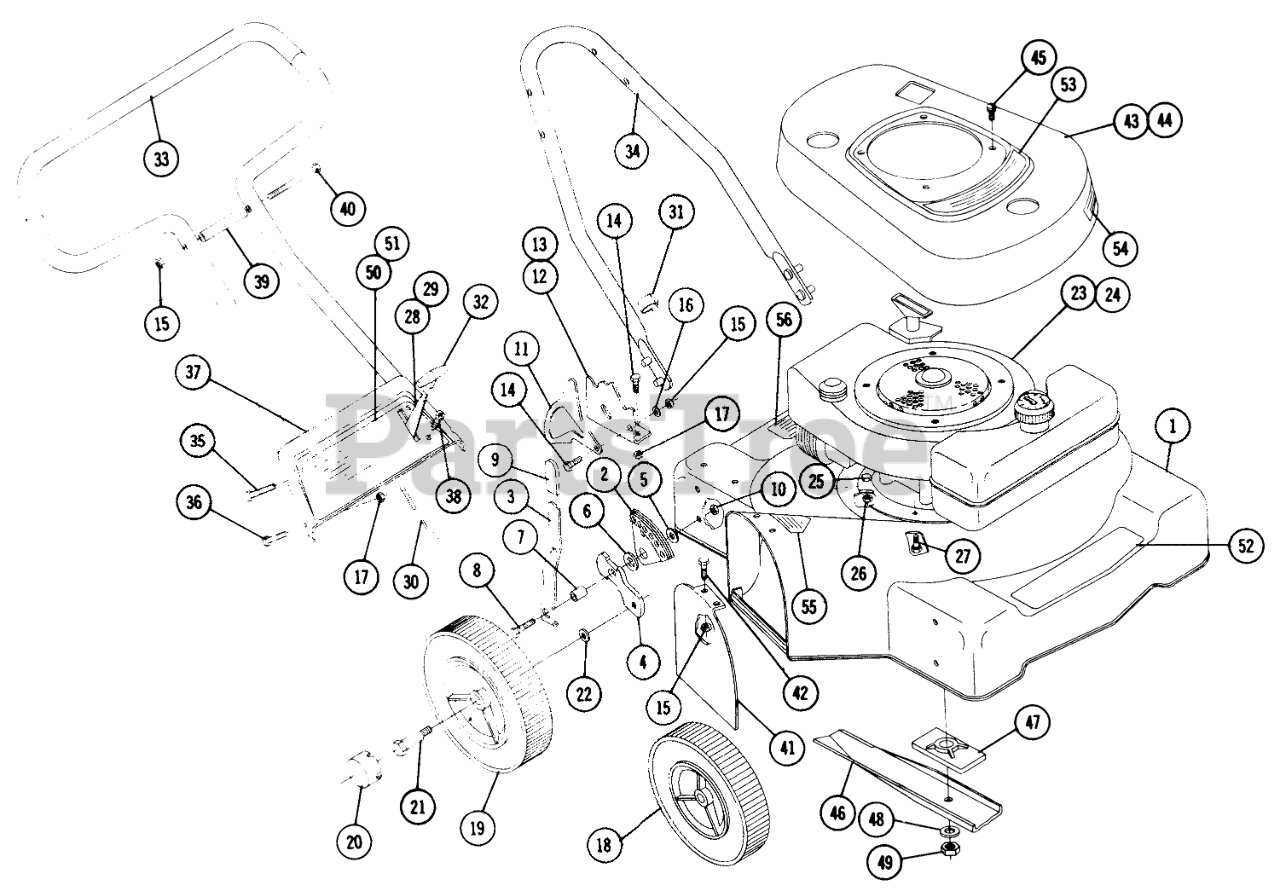

LS-2027 - Toro Challenger II Walk-Behind Mower (1967) PARTS LIST FOR REO MOWERS-CHALLENGER II Parts Diagram

Challenger II Walk-Behind Mower

PARTS LIST FOR REO MOWERS-CHALLENGER II Parts Diagram

  • Title

1

Toro 7078

Ass-y. Deck

$

$

Currently unavailable

2

Toro 7083

Quadrant-Wheel Bracket

$

$

Currently unavailable

3

Toro 7084

Lever-Height Adjustor

$

$

Currently unavailable

4

Toro 7085

Arm-Wheel Bracket

$

$

Currently unavailable

5

Toro 920223

Washer-Fibre

$

$

Currently unavailable

6

Toro 920222

Washer-Fibre

$

$

Currently unavailable

7

Toro 7086

Spacer-Bar & Lever Mounting

$

$

Currently unavailable

8

Toro 908035-4

Bolt 3/8-16 x 1

$

$

Currently unavailable

9

Toro 7087

Knob-Height Adjustor Lever

$

$

Currently unavailable

10

Toro 960012-4

Nut, Flange 3/8-16

$

$

Currently unavailable

11

Toro 7090

Latch-Handle Mounting

$

$

Currently unavailable

12

Toro 7088

Bracket Handle R.H.

$

$

Currently unavailable

13

Toro 7089

Bracket Handle L.H.

$

$

Currently unavailable

14

Toro 908002-4

Bolt-1/4-20 x 5/8

$

$

Currently unavailable

15

Toro 91511-6

Nut 1/4-20 Nylok

$

$

Currently unavailable

16

Toro 920007-4

Washer

$

$

Currently unavailable

17

Toro 960008-4

Nut Hex 5/4-20 Nylok

$

$

Currently unavailable

18

Toro 7091

31000 '60 17 SNWHOU

$3.23

$

Usually ships in 3-6 days

0

19

Toro 7092

PART CAT OPC

$3.23

$

Usually ships in 3-6 days

0

20

Toro 7093

Cap-Hub

$

$

Currently unavailable

21

Toro 7094

Bolt-Shoulder

$

$

Currently unavailable

22

Toro 920217-4

Washer

$

$

Currently unavailable

24

Toro 7096

Engine-4 Cycle

$

$

Currently unavailable

27

Toro 910499-4

Screw Hex-Sems 5/16-18 x 3/4

$

$

Currently unavailable

28

Toro 7097

Ass-y Throttle Control

$

$

Currently unavailable

29

Toro 7105

31100 '60&UP 17 SNW

$3.23

$

Usually ships in 3-6 days

0

30

Toro 7104

Ass-y. Cable

$

$

Currently unavailable

31

Toro 7098

Clip-Control

$

$

Currently unavailable

32

Toro 6161

Knob

$

$

Currently unavailable

33

Toro 7099

Handle, Upper

$

$

Currently unavailable

34

Toro 7100

Ass-y. Handle-Lower

$

$

Currently unavailable

35

Toro 908007-4

Bolt 1/4-20 x 1 1/2

$

$

Currently unavailable

36

Toro 908006-4

Bolt 1/4 20 x 1 1/4

$

$

Currently unavailable

37

Toro 7101

Shield-Handle

$

$

Currently unavailable

38

Toro 911725-4

Screw #2 Phillips Sems #8-32 x 1/4

$

$

Currently unavailable

39

Toro 7102

20210 '60&UP 21 SP

$

$

Not available

40

Toro 908148-4

Bolt Hex 1/4-20 x 4 1/2

$

$

Currently unavailable

41

Toro 7103

Mulcher-Leaf

$

$

Currently unavailable

42

Toro 908001-4

Bolt, 1/4-x 1/2

$

$

Currently unavailable

44

Toro 7114

Shroud-Engine

$

$

Currently unavailable

45

Toro 910487-4

Screw Sems 1/4-28 x 3/8

$

$

Currently unavailable

46

Toro 7106

Blade 20"

$

$

Not available

47

Toro 6650

Drive Blade

$

$

Currently unavailable

48

Toro 920013-4

Washer, 5/8

$

$

Currently unavailable

49

Toro 915639-4

Nut Hex 5/8-18 Thin

$

$

Currently unavailable

51

Toro 7166

Decal-Handle Challenger IV

$

$

Currently unavailable

52

Toro 7109

Decal-Deck

$

$

Currently unavailable

53

Toro 7110

Decal

$

$

Currently unavailable

55

Toro 6181

Decal-Caution
(Superseded to 704093)

$

$

Not available

56

Toro 6332

4XC6485 GIS ROTARY

$3.23

$

Usually ships in 3-6 days

0

23

Toro 7095

31000 '60&UP 17 SNO

$3.23

$

Usually ships in 3-6 days

0

25

Toro 908016

Bolt
(Superseded to 322-2)

$2.49

$

In Stock, Qty 20+

0

26

Toro 915112-6

Nut-Nylok

$

$

Currently unavailable

43

Toro 7113

Shroud-Engine

$

$

Currently unavailable

50

Toro 7107

Decal-Handle-Challenger II
(Superseded to 83-3410)

$

$

Not available

54

Toro 7111

Decal-Shroud-Throttle

$

$

Currently unavailable
