LS 21 - Bear Cat 21-Ton Log Splitter, 190cc Subaru (SN: C01077 - C99999) Beam - LS21 (SN C01077 - C03652) Parts Diagram

21-Ton Log Splitter, 190cc Subaru

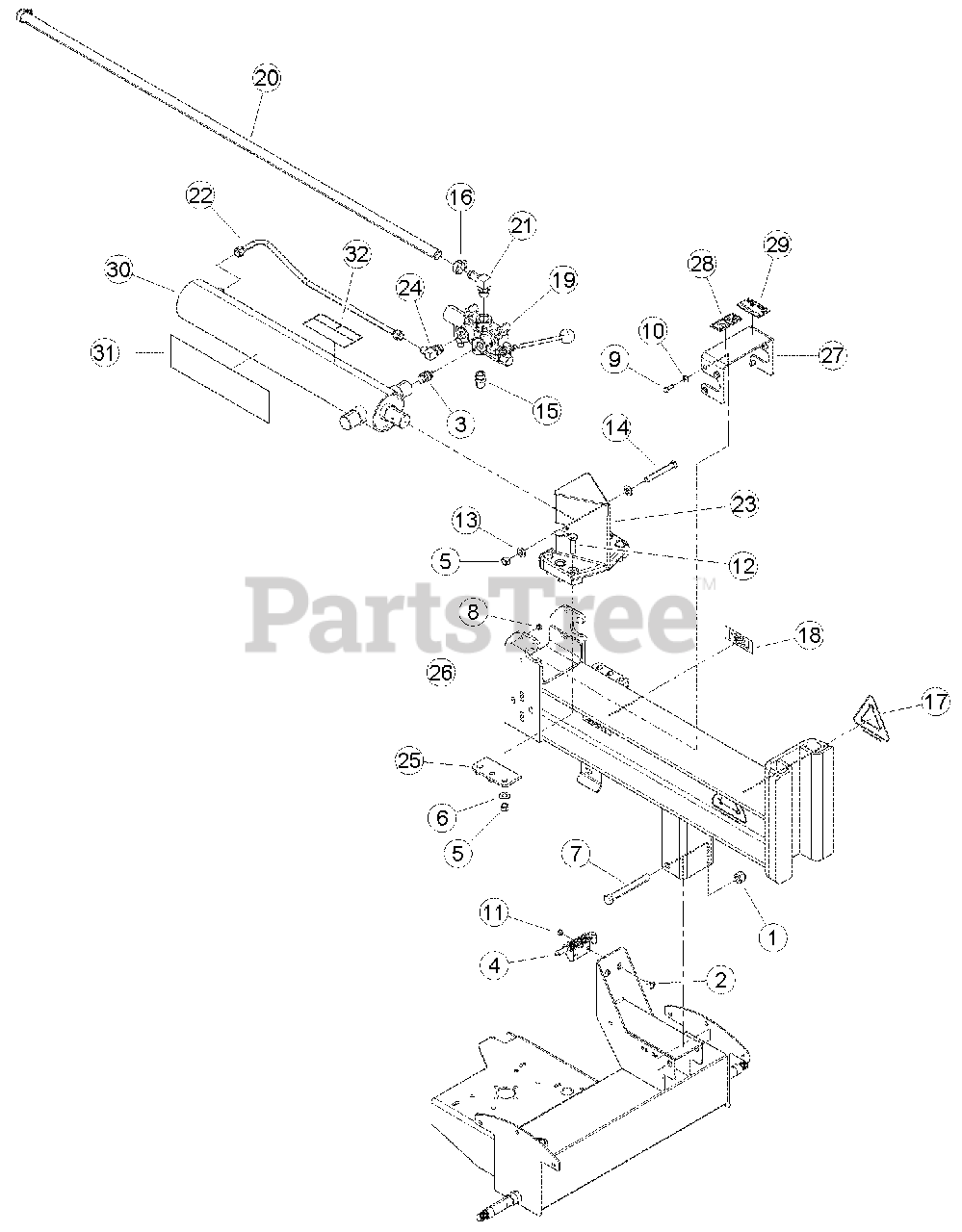

Beam - LS21 (SN C01077 - C03652) Parts Diagram

  • Title

1

0101-0102-00

NUT, 5/8-11 UNC NYLOCK

$

$

Not available

2

0103-0909-00

BOLT, 5/16-18 X 3/4 CRG GR5 SN

$

$

Not available

3

12339

ADAPTER, -8 MORING / -8 MORING ADJ

$

$

Not available

4

Bear Cat 14971-00

LATCH, RH HINGE

$

$

Not available

5

Bear Cat 15049

NUT, 1/2 CENTERLOCK GRB ZP

$0.99

$

Usually ships in 3-7 days

0

6

Bear Cat 15097

WASHER, 1/2 SAE FLAT ZP

$0.99

$

Usually ships in 3-7 days

0

7

15170

BOLT, 5/8 X 5-1/2 HEX HD GR5 ZP

$

$

Not available

8

15178

NUT 5/16 CENTERLOCK NC ZP

$

$

Not available

9

Bear Cat 15219

BOLT, 5/16 X 1 HEX HD GR5 NC ZP

$

$

Not available

10

Bear Cat 15250

WASHER, 5/16 FLAT ZP

$

$

Not available

11

Bear Cat 15356

NUT, 5/16 NE NYLOCK ZP

$0.99

$

Usually ships in 3-7 days

0

12

15478

BOLT, 1/2 X 1-3/4 HEX HD GR5 NC ZP

$

$

Not available

13

Bear Cat 15762-00

WASHER, 1/2 HI-STRENGTH SAE ZP

$

$

Not available

14

Bear Cat 15874-00

BOLT, 1/2 X 3-3/4 HEX HD GR8 NC

$4.49

$

Usually ships in 3-7 days

0

15

16330

ADAPTER, -10 MORING / -10 MJIC

$

$

Not available

16

16602

CLAMP, 1-1/4" HOSE

$

$

Not available

17

Bear Cat 31392-00

DECAL, RECLAIM IT

$9.99

$

Usually ships in 3-7 days

0

18

Bear Cat 31926-00

DECAL, MODEL LS21

$

$

Not available

19

Bear Cat 31946-00

VALVE, LOG SPLITTER
(Superseded to 77622-00)

$402.99

$

Usually ships in 3-7 days

0

20

Bear Cat 31952-00

HOSE, 0.75 ID X 60" 100R4 HYD

$96.99

$

Usually ships in 3-7 days

0

21

Bear Cat 36017-00

ADAPTER, -10 MORING/.75 90 DEG. HOSE

$42.99

$

Usually ships in 3-7 days

0

22

Bear Cat 36216-00

TUBE, HYDRAULIC

$

$

Not available

23

WEDGE, CAST (WAS 36333-12, FOR SERVICE ORDER KIT #77380-00, CAST WEDGE WITH SPACERS)

$

$

Not available

24

41287

ADAPTER, -8 MORING / -8 MJIC 90 DEG.

$

$

Not available

25

Bear Cat 76228-12

PLATE, CAST WEDGE BOTTOM

$38.99

$

Usually ships in 3-7 days

0

26

Bear Cat 77184-35

WELDMENT, BEAM

$1192.99

$

Usually ships in 3-7 days

0

27

Bear Cat 77347-00

CHANNEL, CRADLE CYLINDER, SERVICE PART

Note: (INCLUDES ITEMS 28 & 29)

$83.99

$

Usually ships in 3-7 days

0

28

Bear Cat 18983-00

DECAL, CRUSHING ISO

$5.49

$

Usually ships in 3-7 days

0

29

Bear Cat 36090-00

DECAL, CYLINDER OPERATION (ISO)

$7.49

$

Usually ships in 3-7 days

0

30

Bear Cat 77350-00

CYLINDER, WELDED 4.00 X 24.00, SERVICE PART

Note: (INCLUDES ITEMS 31 & 32)

$1086.99

$

Usually ships in 3-7 days

0

31

Bear Cat 14786-00

DECAL, ECHO BEARCAT 14.12 X 4.00

$

$

Not available

32

Bear Cat 14942-00

DECAL, MUTILINGUAL MANUAL

$38.99

$

Usually ships in 3-7 days

0
