LS 21 - Bear Cat 21-Ton Log Splitter, 190cc Subaru (SN: C01077 - C99999) Drive Parts Diagram

21-Ton Log Splitter, 190cc Subaru

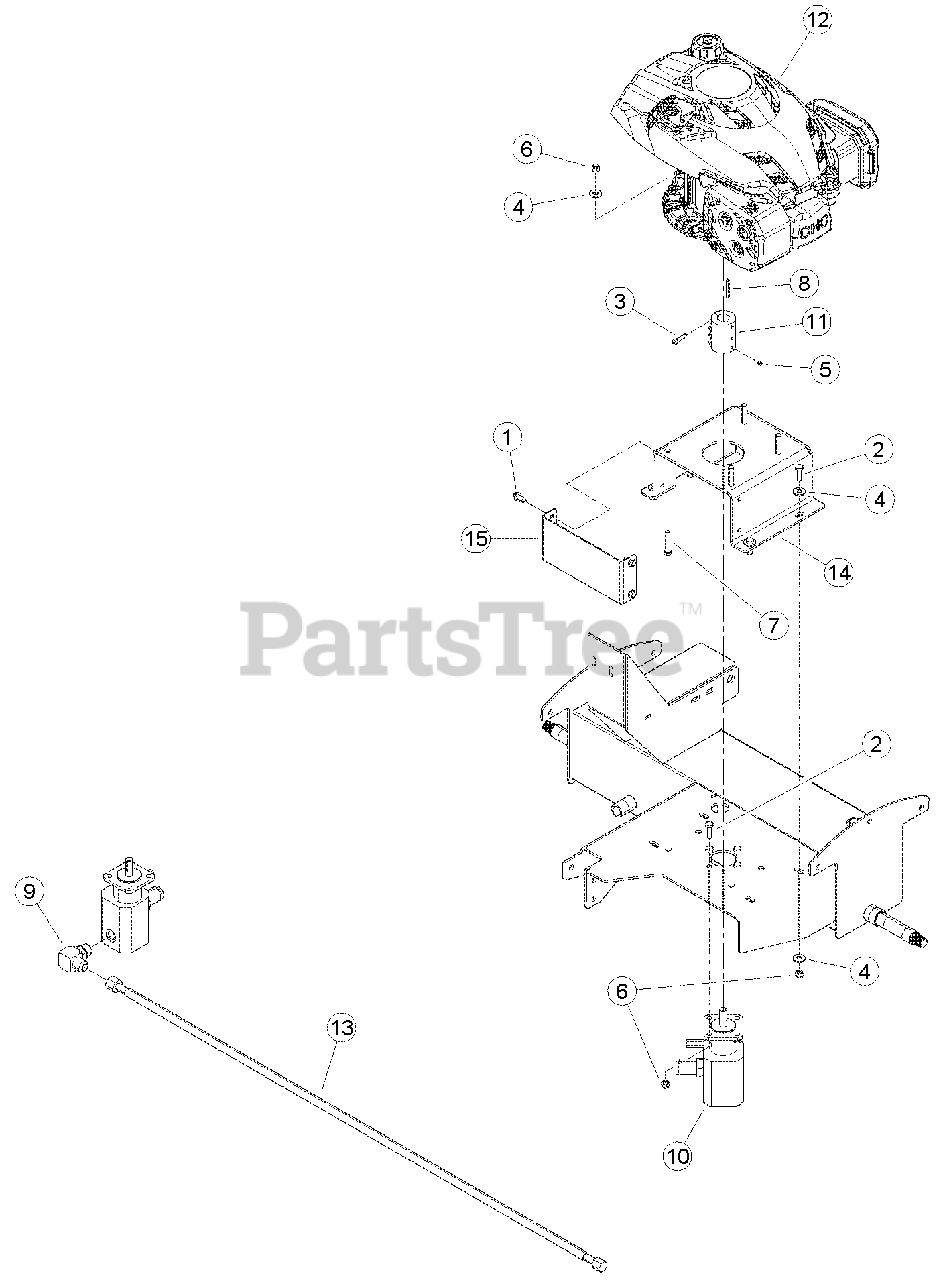

Drive Parts Diagram

  • Title

1

15176

SCREW, 11/32 X 7/8 HWH AB THREAD ZP

$

$

Not available

2

Bear Cat 15219

BOLT, 5/16 X 1 HEX HD GR5 NC ZP

$

$

Not available

3

15242

BOLT, 1/4 X 1 SOC HD CAP SCRW

$

$

Not available

4

Bear Cat 15250

WASHER, 5/16 FLAT ZP

$

$

Not available

5

15332

SCREW, 1/4-20 X 1/4 KNR CUP SKT SET

$

$

Not available

6

Bear Cat 15356

NUT, 5/16 NE NYLOCK ZP

$0.99

$

Usually ships in 3-7 days

0

7

Bear Cat 15403

BOLT, 5/16-18 X 1-3/4 HEX HD GR5 ZP

$

$

Not available

8

Bear Cat 15434

KEY, 3/16 SQUARE X 1-1/2 LONG

$1.49

$

Usually ships in 3-7 days

0

9

16638

ADAPTER, -10 MORING / -10 MJIC 90 DEG.

$

$

Not available

10

Bear Cat 31945-00

PUMP, LOG SPLITTER 2 STAGE
(Superseded to 30155-00)

$526.99

$

Usually ships in 3-7 days

0

11

Bear Cat 31948-00

COUPLER, SPLIT 7/8" TO 1/2" SHAFT

$148.99

$

Usually ships in 3-7 days

0

12

ENGINE, SUBARU EA190V (FOR SERVICE CONSULT ENGINE OWNER'S MANUAL OR YOUR NEAREST AUTHORIZED SUBARU INDUSTRIAL ENGINE DEALER)

$

$

Not available

13

Bear Cat 36177-00

HOSE, .50 X 50 -10 FJICSW / -10 FJICSW

$107.99

$

Usually ships in 3-7 days

0

14

Bear Cat 77227-12

MOUNT, VERT ENGINE

$156.99

$

Usually ships in 3-7 days

0

15

Bear Cat 77228-12

COVER, ENGINE SHAFT

$45.99

$

Usually ships in 3-7 days

0
