LS 25 CC (24BF552B710) - Cub Cadet Log Splitter (2013) General Assembly Parts Diagram

Log Splitter

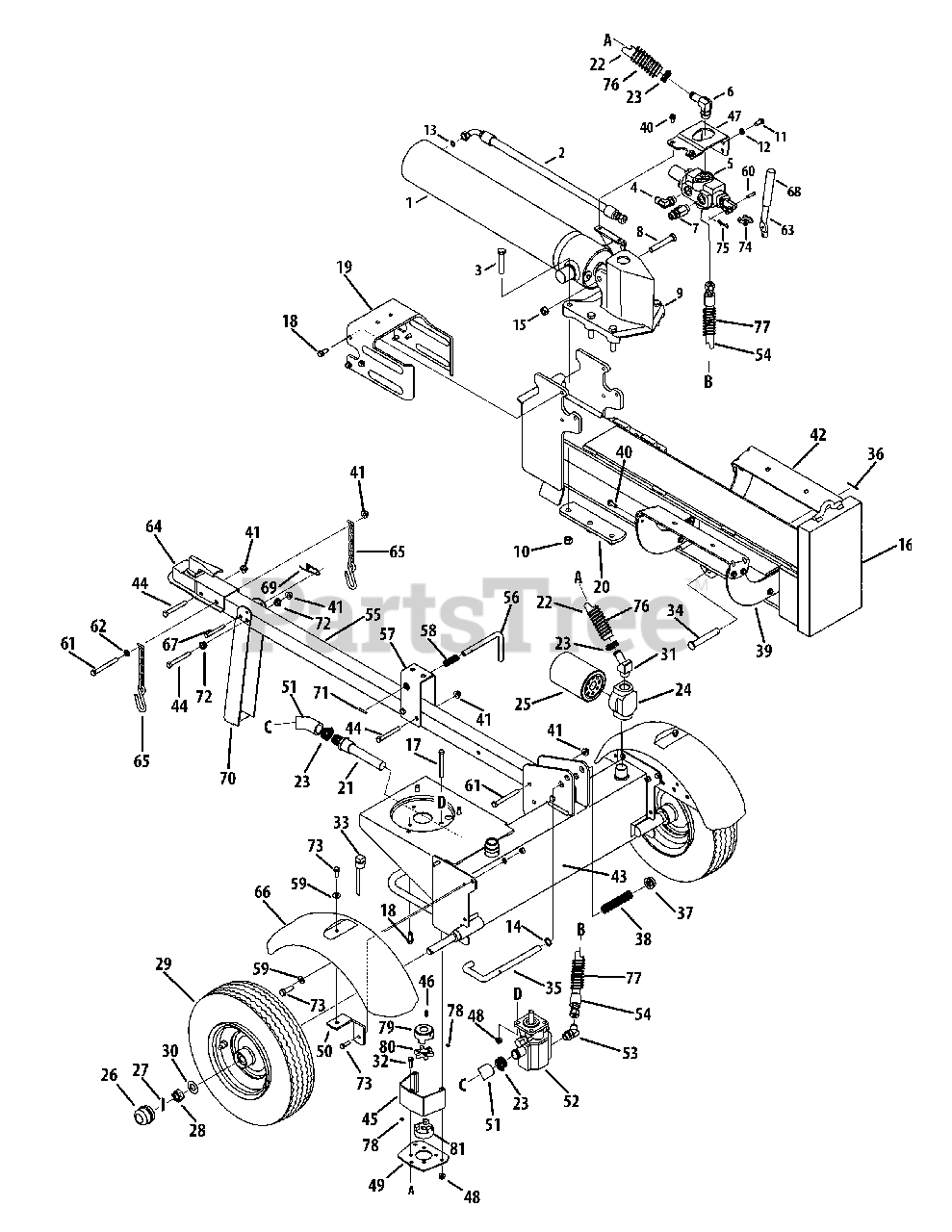

General Assembly Parts Diagram

  • Title

1

Cub Cadet 918-04713

Hydraulic Cylinder

$866.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 727-04362

Hydraulic Tube

$97.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 710-1018

Hex Cap Screw, 1/2-20 x 2.75

$11.99

$

In Stock, Qty 16

0

4

Cub Cadet 737-04320

90 Degree Solid Adapter

$21.99

$

In Stock, only 3 left!

0

5

Cub Cadet 918-04740

Control Valve

$325.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 737-04307

Return Elbow

$25.99

$

In Stock, only 2 left!

0

7

Cub Cadet 737-04309

Nipple Pipe, 1/2-14

$20.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 710-1806

Hex Cap Screw, 1/2-13 x 3.25

$10.99

$

In Stock, only 2 left!

0

9

Cub Cadet 719-04529

Wedge Assembly

$267.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 912-3058

Hex Lock Nut, 1/2-20

$5.99

$

In Stock, Qty 18

0

11

Cub Cadet 710-0216

Hex Cap Screw, 3/8-16 x .75

$4.49

$

In Stock, Qty 8

0

12

Cub Cadet 936-0169

Lock Washer, 3/8
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 721-04411

O-Ring, .489 ID x .070 Dia.

$4.49

$

Usually ships in 3-6 days

0

14

Cub Cadet 936-0116

Flat Washer, .635 x.93 x.06

$7.49

$

In Stock, only 1 left!

0

15

Cub Cadet 712-3022

Hex Lock Nut, 1/2-13

$4.49

$

In Stock, Qty 20+

0

16

Cub Cadet 681-04112-0637

Beam Assembly
(Superseded to 681-04112A-0637)

$1470.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 710-3056

Hex Screw, 5/16-18 x 3.25

$10.99

$

In Stock, only 1 left!

0

18

Cub Cadet 710-04683A

Self Tapping Screw, 3/8-16 x 1.0
(Superseded to 710-04683C)

$6.99

$

In Stock, Qty 20+

0

19

Cub Cadet 781-04426-4021

Dislodger Bracket

$86.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 781-0790A-0637

Back Plate

$43.99

$

In Stock, only 2 left!

0

21

Cub Cadet 737-04308

Inlet Filter

$

$

Not available

22

Cub Cadet 727-0443

Return Hose, 3/4 x 44

$125.99

$

In Stock, only 2 left!

0

23

Cub Cadet 726-0132

Hose Clamp, 5/8

$16.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 737-04267

Filter Housing

$60.99

$

In Stock, Qty 5

0

25

Cub Cadet 723-0405

Oil Filter
(Superseded to 723P0405)

$45.99

$

In Stock, Qty 17

0

26

Cub Cadet 734-0873

Hub Cap

$12.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 714-0162

Cotter Pin

$5.49

$

In Stock, Qty 20+

0

28

Cub Cadet 712-0359

Slotted Nut, 3/4-16

$12.99

$

In Stock, only 2 left!

0

29

Cub Cadet 634-0187

Complete Wheel Assembly

$385.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 921-0168

Dust Seal

$9.99

$

In Stock, Qty 15

0

29

Cub Cadet 941-04089

Roller Bearing
(Superseded to 941-04298)

$17.99

$

In Stock, Qty 20+

0

30

Cub Cadet 936-0351

Flat Washer, .760 x.500
(Superseded to 736-0351)

$4.49

$

In Stock, Qty 20+

0

31

Cub Cadet 737-04323

Hydraulic Fitting, 1 1/16 Orb x .75

$30.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 710-0376

Hex Screw, 5/16-18 x 1.00

$4.49

$

In Stock, Qty 20+

0

33

Cub Cadet 737-0348A

Vented Dipstick

$24.99

$

In Stock, only 3 left!

0

34

Cub Cadet 711-05169

Clevis Pin

$5.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 747-04983

Lock Rod

$26.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 914-0470

Cotter Pin
(Superseded to 714-0470)

$4.49

$

In Stock, Qty 15

0

37

Cub Cadet 726-0214

Push Cap

$11.99

$

In Stock, Qty 20+

0

38

Cub Cadet 732-0583

Compression Spring

$12.99

$

In Stock, Qty 8

0

39

Cub Cadet 781-04293-0637

Log Tray Bracket

$21.99

$

In Stock, Qty 11

0

40

Cub Cadet 710-04484

Hex Washer Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

41

Cub Cadet 712-04065

Flange Lock Nut, 3/8-16

$4.49

$

In Stock, Qty 20+

0

42

Cub Cadet 781-04179-0637

Log Tray

$53.99

$

In Stock, Qty 5

0

43

Cub Cadet 681-04131-0637

Frame Assembly

$588.99

$

Usually ships in 3-6 days

0

44

Cub Cadet 710-0521

Hex Bolt, 3/8-16 x 3

$5.49

$

In Stock, Qty 6

0

45

Cub Cadet 719-0353

Coupling Shield

$57.99

$

Usually ships in 3-6 days

0

46

Cub Cadet 914-0122

Square Key, 3/16" x .75
(Superseded to 714-0122)

$

$

Not available

47

Cub Cadet 781-04418-0637

Outer Valve Bracket

$18.99

$

Usually ships in 3-6 days

0

48

Cub Cadet 712-04063

Flange Lock Nut, 5/16-18

$4.49

$

In Stock, Qty 20+

0

49

Cub Cadet 781-0097-0637

Rear Coupling Support Bracket

$74.99

$

In Stock, only 2 left!

0

50

Cub Cadet 781-1024A-0637

Fender Mounting Bracket

$33.99

$

Usually ships in 3-6 days

0

51

Cub Cadet 727-04290

Hose
(Superseded to 727-04130)

$113.99

$

In Stock, only 2 left!

0

52

Cub Cadet 918-04127

Gear Pump

$796.99

$

Usually ships in 3-6 days

0

53

Cub Cadet 737-04321

45 Degree Elbow Fitting

$18.99

$

In Stock, only 1 left!

0

54

Cub Cadet 727-04288

High Pressure Hydraulic Hose

$97.99

$

Usually ships in 3-6 days

0

55

Cub Cadet 781-04424-4021

Tongue Assembly

$62.99

$

Usually ships in 3-6 days

0

56

Cub Cadet 747-1261

Latch Rod

$42.99

$

Usually ships in 3-6 days

0

57

Cub Cadet 781-1045-4021

Latch

$59.99

$

Usually ships in 3-6 days

0

58

Cub Cadet 932-3127

Compression Spring

$4.99

$

In Stock, Qty 15

0

59

Cub Cadet 736-0371

Flat Washer

$4.99

$

In Stock, only 2 left!

0

60

Cub Cadet 711-04585

Clevis Pin

$7.49

$

In Stock, Qty 11

0

61

Cub Cadet 710-3085

Hex Cap Screw, 3/8-16 x 3.50

$4.99

$

In Stock, Qty 20+

0

62

Cub Cadet 936-0185

Flat Washer, .375 x.738 x.063
(Superseded to 736-0185)

$4.49

$

In Stock, only 4 left!

0

63

Cub Cadet 747-04539A

Hydraulic Valve Control

$48.99

$

Usually ships in 3-6 days

0

64

Cub Cadet 681-04030

Hitch Coupling Assembly

$77.99

$

Usually ships in 3-6 days

0

65

Cub Cadet 713-0433A

Chain

$47.99

$

In Stock, only 1 left!

0

66

Cub Cadet 731-2496A

Fender

$87.99

$

Usually ships in 3-6 days

0

67

Cub Cadet 911-0813

Clevis Pin

$7.49

$

In Stock, only 2 left!

0

68

Cub Cadet 720-04088

Grip

$10.99

$

Usually ships in 3-6 days

0

69

Cub Cadet 732-0194

Spring Pin

$4.99

$

In Stock, Qty 7

0

70

Cub Cadet 781-04430-4021

Jack Stand

$45.99

$

Usually ships in 3-6 days

0

71

Cub Cadet 715-0120

Spiral Pin

$11.99

$

In Stock, Qty 5

0

72

Cub Cadet 941-0475

Plastic Bushing, .380 ID

$4.49

$

In Stock, Qty 20+

0

73

Cub Cadet 710-0602

Self-Tapping Screw, 5/16-18 x 1.00

$4.99

$

In Stock, Qty 20+

0

74

Cub Cadet 913-04036

Valve Handle Link

$22.99

$

In Stock, only 4 left!

0

75

Cub Cadet 714-04040

Cotter Pin, Bow Tie

$1.49

$

In Stock, Qty 20+

0

76

Cub Cadet 781-0526A

Hose Guard, 44"

$56.99

$

Usually ships in 3-6 days

0

77

Cub Cadet 781-0538A

Hose Guard, 48"

$37.99

$

Usually ships in 3-6 days

0

78

Cub Cadet 710-1842A

Set Screws

$5.99

$

In Stock, Qty 5

0

79

Cub Cadet 718-04395

Coupling, .875

$19.99

$

In Stock, Qty 8

0

80

Cub Cadet 735-04103

Spider Bushing

$15.99

$

In Stock, Qty 13

0

81

Cub Cadet 718-04392

Coupling, .500

$15.99

$

In Stock, Qty 10
