LS 25 CC (24BF552B710) - Cub Cadet Log Splitter (2020) Cylinder Parts Diagram

Log Splitter

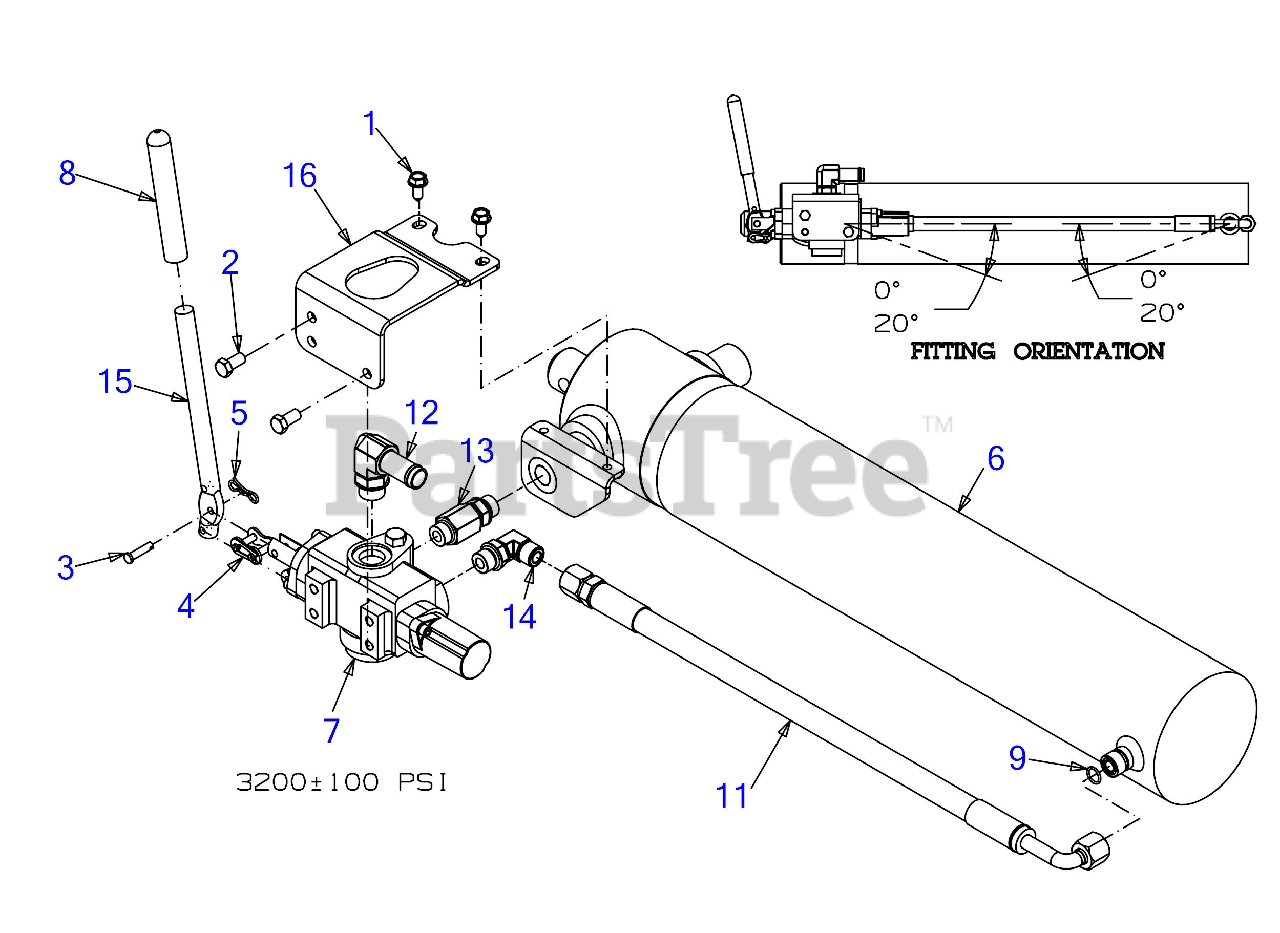

Cylinder Parts Diagram

  • Title

1

Cub Cadet 710-04484

SCREW 5/16-18 x .750

$3.49

$

In Stock, Qty 20+

0

2

Cub Cadet 710-3119

SCREW 3/8-16 x .75 GR 5

$6.49

$

In Stock, Qty 8

0

3

Cub Cadet 711-04585

CLEVIS PIN .25 x 1.00

$6.49

$

In Stock, only 3 left!

0

4

Cub Cadet 913-04036

VALVE HANDLE LINK

$19.99

$

In Stock, only 2 left!

0

5

Cub Cadet 714-04040

BOW TIE COTTER PIN 1/4-5/16

$1.49

$

In Stock, Qty 20+

0

6

Cub Cadet 918-04713

HYDRAULIC CYLINDER

$760.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 918-04740

LOGSPLITTER VALVE

$292.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 720-04088

GRIP

$9.99

$

In Stock, only 1 left!

0

9

Cub Cadet 721-04411

O-RING

$3.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 727-04362

HYDRAULIC HOSE

$85.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 737-04307

HYDRAULIC FITTING

$22.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 737-04309

HYDRAULIC FITTING

$19.99

$

In Stock, Qty 7

0

14

Cub Cadet 737-04320

HYDRAULIC FITTING

$19.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 747-04539A

CONTROL VALVE HANDLE

$42.99

$

In Stock, only 1 left!

0

16

Cub Cadet 781-04418-0637

VALVE BRACKET

$16.99

$

Usually ships in 3-6 days

0
