LS 25 CC (24BG55M1710) - Cub Cadet Log Splitter (2015) 170-DU Fuel Tank Parts Diagram

Log Splitter

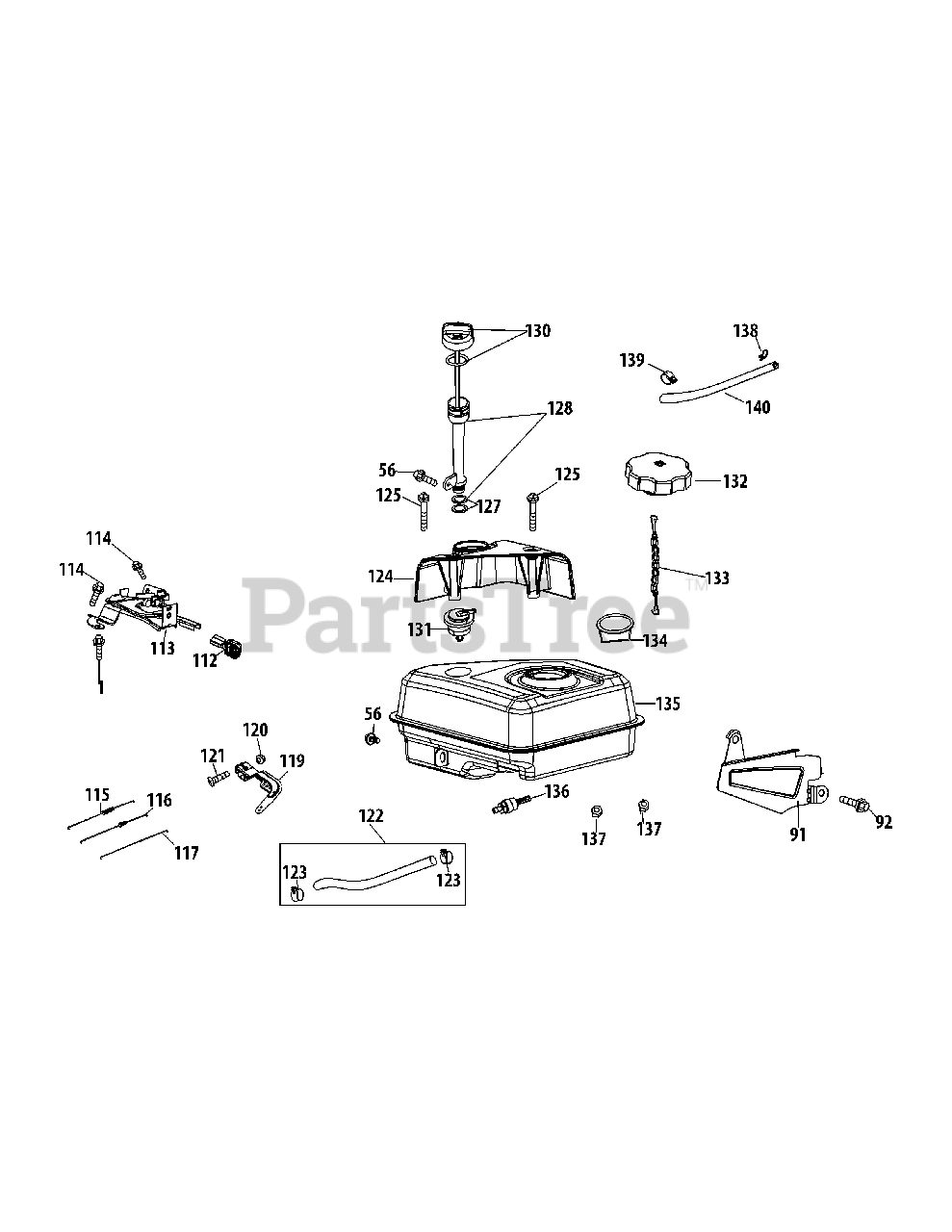

170-DU Fuel Tank Parts Diagram

  • Title

1

Cub Cadet 710-04968

Bolt M6×16

$6.49

$

In Stock, only 3 left!

0

56

Cub Cadet 710-04915

Bolt M6×12

$4.49

$

In Stock, Qty 10

0

91

Cub Cadet 951-11110

Air Flow Shield

$3.99

$

Usually ships in 3-6 days

0

92

Cub Cadet 710-04940

Bolt M6×10

$4.99

$

In Stock, only 3 left!

0

112

Cub Cadet 951-11067

Throttle Control Knob

$3.99

$

Usually ships in 3-6 days

0

113

Cub Cadet 951-12131

Primer Bracket

$19.99

$

Usually ships in 3-6 days

0

114

Cub Cadet 710-05103

Bolt M6×12

$3.99

$

In Stock, only 2 left!

0

115

Cub Cadet 951-11585

Governor Spring

$6.99

$

In Stock, Qty 8

0

116

Cub Cadet 951-10664

Throttle Linkage Spring
(Superseded to 751P10664A)

$2.49

$

In Stock, Qty 10

0

117

Cub Cadet 951-10665

Throttle Linkage
(Superseded to 751P10665A)

$1.99

$

In Stock, only 3 left!

0

119

Cub Cadet 951-11106

Governor Arm

$7.49

$

Usually ships in 3-6 days

0

120

Cub Cadet 712-04212

Nut M6
(Superseded to 712-05015)

$6.49

$

Usually ships in 3-6 days

0

121

Cub Cadet 710-04908

Governor Arm Bolt

$5.99

$

Usually ships in 3-6 days

0

122

Cub Cadet 951-10650

Kit-Fuel Line

$26.99

$

In Stock, Qty 8

0

123

Cub Cadet 951-11700

Fuel Hose Clamp
(Superseded to 951-11700A)

$3.99

$

In Stock, only 3 left!

0

124

Cub Cadet 951-11914

Dipstick Decoration Cover

$13.99

$

Usually ships in 3-6 days

0

125

Cub Cadet 710-04905

Bolt

$4.49

$

Usually ships in 3-6 days

0

127

Cub Cadet 951-11381

Oil Fill Tube O-Ring 15×1.5

$4.99

$

Usually ships in 3-6 days

0

128

Cub Cadet 951-11913

Oil Fill Tube Assy

$15.99

$

In Stock, only 1 left!

0

130

Cub Cadet 951-12482

Dipstick Assy

$14.99

$

Usually ships in 3-6 days

0

131

Cub Cadet 951-14075

Roll Over Valve
(Superseded to 951-14075A)

$26.99

$

Usually ships in 3-6 days

0

132

Cub Cadet 951-12535

Cap Comp,Fuel

$21.99

$

Usually ships in 3-6 days

0

133

Cub Cadet 951-14076

Fuel Cap Chain

$8.49

$

Usually ships in 3-6 days

0

134

Cub Cadet 951-11933

Fuel Filter

$8.99

$

In Stock, only 1 left!

0

135

Cub Cadet 951-14332

Fuel Tank Assembly

$129.99

$

In Stock, only 3 left!

0

136

Cub Cadet 951-10651

Fuel Tank Nipple

$14.99

$

In Stock, Qty 10

0

137

Cub Cadet 712-05015

Nut M6

$6.49

$

Usually ships in 3-6 days

0

138

Cub Cadet 723-04093

Hose Clamp

$3.99

$

Usually ships in 3-6 days

0

139

Cub Cadet 732-05143

Hose Clamp
(Superseded to 932-05143)

$5.49

$

Usually ships in 3-6 days

0

140

Cub Cadet 751-14541

Primer Hose Assembly
(Superseded to 951-14541)

$7.99

$

In Stock, only 1 left!

0
