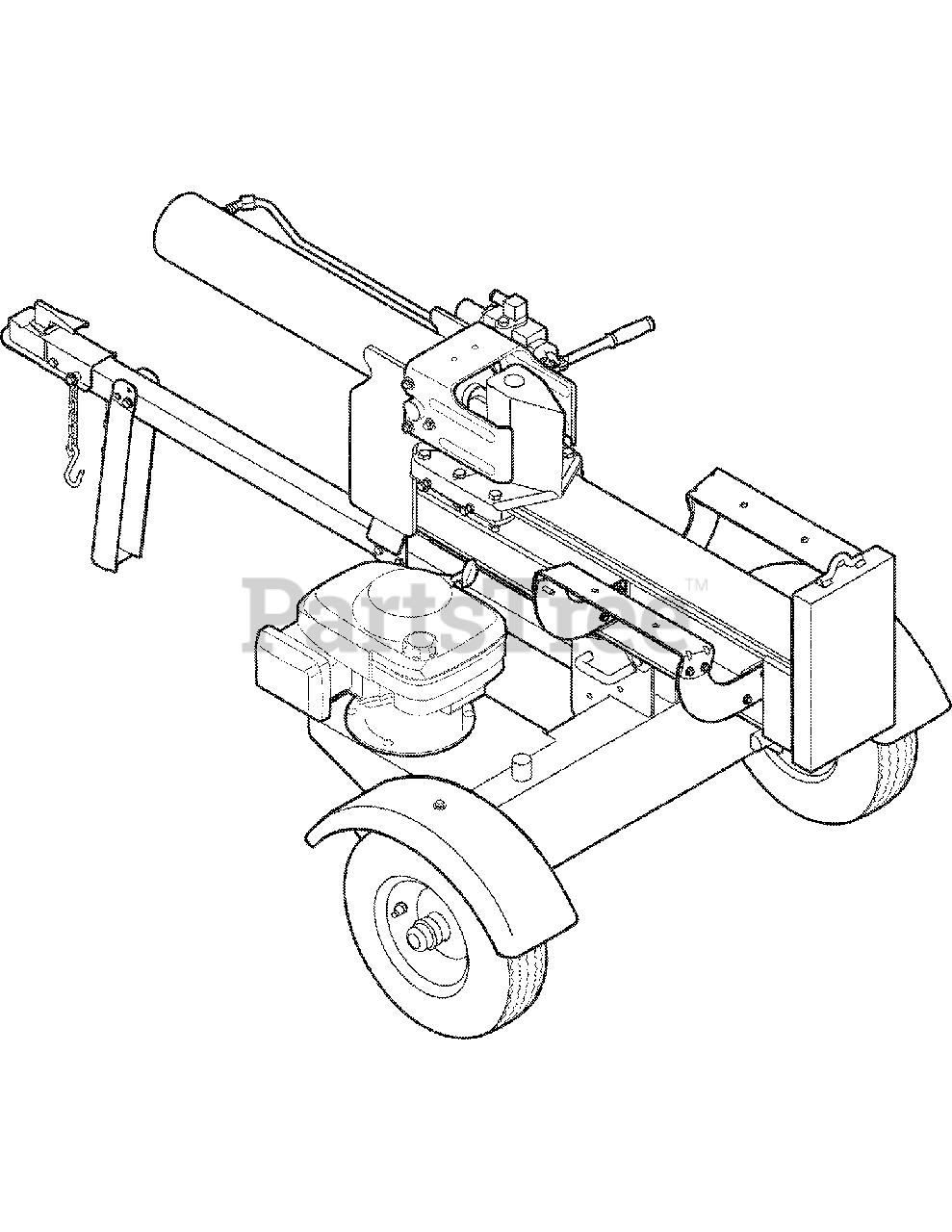

LS 27 (24BF572B711) - Troy-Bilt Log Splitter (2007) .Quick Reference Parts Diagram

Log Splitter

.Quick Reference Parts Diagram

  • Title

Troy-Bilt 98079-56846

Spark Plug

$3.99

$

Usually ships in 3-6 days

0

N/A

Pre Filter

$

$

Not available

Troy-Bilt 17211-ZL8-023

Air Filter

$6.49

$

In Stock, Qty 20+

0

N/A

Fuel Filter

$

$

Not available

Troy-Bilt 723-0405

Hydraulic Filter
(Superseded to 723P0405)

$45.99

$

In Stock, Qty 20+

0

Troy-Bilt 737-04093

Inlet Filter

$96.99

$

Usually ships in 3-6 days

0

Troy-Bilt 737-0348A

Vented Dipstick

$24.99

$

In Stock, only 2 left!

0

Troy-Bilt 718-04145

Flexible Coupling
(Superseded to 918-04145)

$96.99

$

In Stock, only 1 left!

0

Troy-Bilt 781-0351

Adjustable Gibbs

$19.99

$

In Stock, Qty 6

0

Troy-Bilt 747-04539

Hydraulic Valve Control
(Superseded to 747-04539A)

$48.99

$

In Stock, only 1 left!

0

Troy-Bilt 720-04088

Grip

$10.99

$

Usually ships in 3-6 days

0

Troy-Bilt 713-04036

Valve Handle Link
(Superseded to 913-04036)

$22.99

$

In Stock, only 2 left!

0

Troy-Bilt 713-0433A

Chain Hitch

$47.99

$

Usually ships in 3-6 days

0

Troy-Bilt 741-0987

Tapered Roller Bearing
(Superseded to 941-04298)

$17.99

$

In Stock, Qty 20+

0

Troy-Bilt 721-0168

Grease Retainer
(Superseded to 921-0168)

$9.99

$

In Stock, Qty 6

0

Troy-Bilt 734-0873

Hub Cap

$12.99

$

In Stock, Qty 7

0

Troy-Bilt 634-0186

Wheel Assembly

$385.99

$

In Stock, only 1 left!

0

Troy-Bilt 718-0769A

Hydraulic Cylinder
(Superseded to 918-0769A)

Note: XINGHUI or ENERGY

$1050.99

$

Usually ships in 3-6 days

0

Troy-Bilt 953-05607

Kit Seal 4.5" XINGHUI

Note: See Service Kit 753-05607

$90.99

$

Usually ships in 3-6 days

0

Troy-Bilt 953-05608

Kit Seal 4.5" ENERGY

Note: See Service Kit 753-05608

$240.99

$

Usually ships in 3-6 days

0
