LS 27 (24BF572B711) - Troy-Bilt Log Splitter (SN: 1H240H40026 & Below) (2009) General Assembly Parts Diagram

Log Splitter

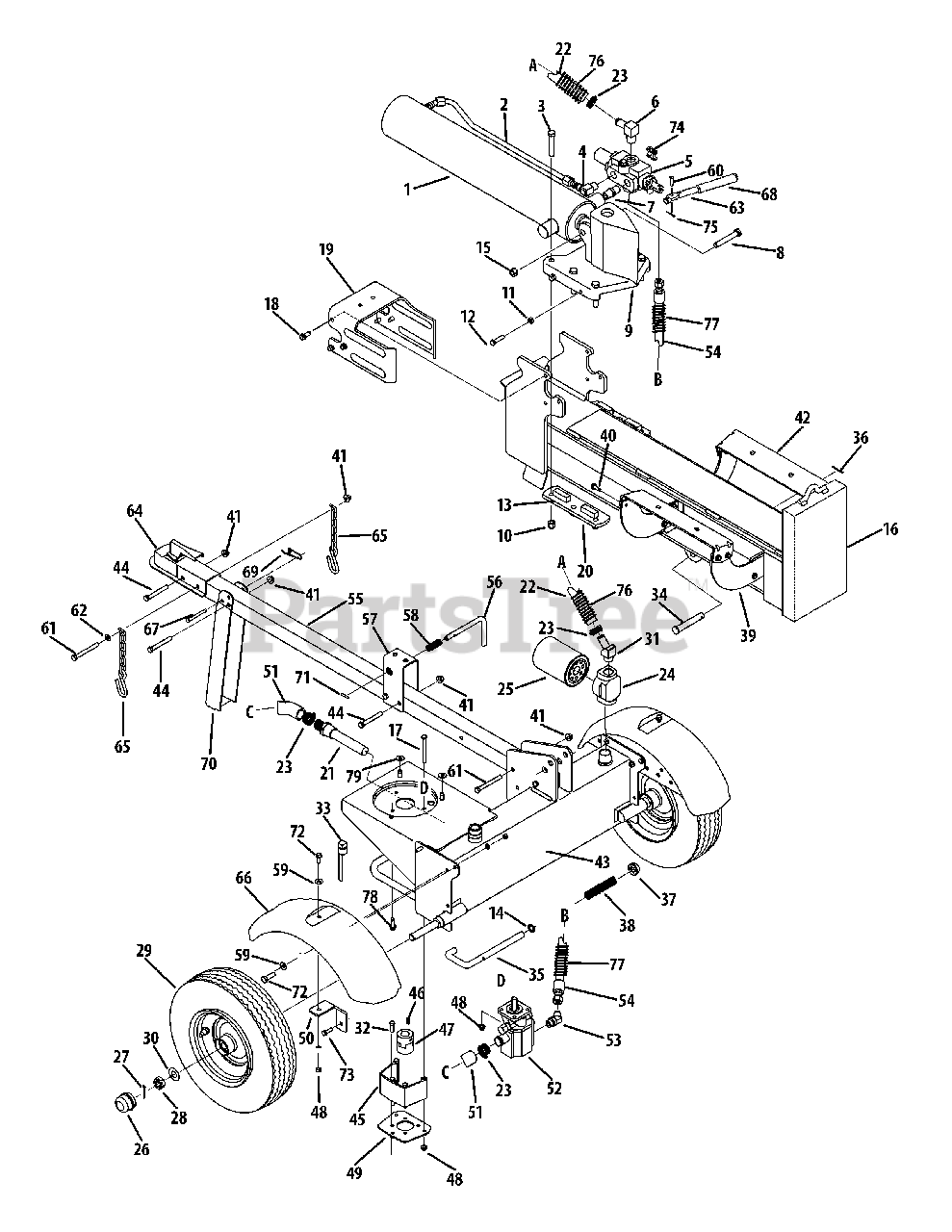

General Assembly Parts Diagram

  • Title

1

Troy-Bilt 918-0769A

Hydraulic Cylinder

$922.99

$

Usually ships in 3-6 days

0

1

Troy-Bilt 953-05607

Kit Seal 4.5" for XINGHUI cylinder

Note: See Service Kit 753-05607

$79.99

$

In Stock, only 1 left!

0

1

Troy-Bilt 953-05608

Kit Seal 4.5" for ENERGY cylinder

Note: See Service Kit 753-05608

$211.99

$

In Stock, only 2 left!

0

2

Troy-Bilt 727-04166

Hydraulic Tube

$106.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 710-1018

Hex Cap Screw, 1/2-20 x 2.75

$10.99

$

In Stock, Qty 20+

0

4

Troy-Bilt 737-0192

90 Degree Solid Adapter

$38.99

$

Usually ships in 3-6 days

0

5

Troy-Bilt 918-0481A

Control Valve

$365.99

$

In Stock, only 4 left!

0

6

Troy-Bilt 737-0153

Return Elbow

$53.99

$

Usually ships in 3-6 days

0

7

Troy-Bilt 737-0238

Nipple Pipe, 1/2-14

$24.99

$

In Stock, only 1 left!

0

8

Troy-Bilt 710-1806

Hex Cap Screw, 1/2-13 x 3.25

$9.49

$

In Stock, Qty 12

0

9

Troy-Bilt 719-0550A

Wedge Assembly

$245.99

$

In Stock, only 1 left!

0

10

Troy-Bilt 912-3058

Hex Lock Nut, 1/2-20

$5.49

$

In Stock, Qty 20+

0

11

Troy-Bilt 712-0711

Hex Jam Nut, 3/8-24

$3.99

$

In Stock, Qty 20+

0

12

Troy-Bilt 710-0459A

Hex Cap Screw, 3/8-24 x 1.5

$6.99

$

In Stock, Qty 10

0

13

Troy-Bilt 781-0351

Adjustable Gib

$17.99

$

In Stock, only 2 left!

0

14

Troy-Bilt 936-0116

Flat Washer, .635 x.93 x.06

$6.49

$

In Stock, only 1 left!

0

15

Troy-Bilt 712-3022

Hex Lock Nut, 1/2-13

$3.99

$

In Stock, Qty 20+

0

16

Troy-Bilt 681-04071A-0637

Beam Assembly

$1726.99

$

Usually ships in 3-6 days

0

17

Troy-Bilt 710-3056

Hex Screw, 5/16-18 x 3.25

$9.49

$

In Stock, only 1 left!

0

18

Troy-Bilt 710-0654A

Hex Washer Screw, 3/8-16 x 1.0

$3.99

$

In Stock, only 4 left!

0

19

Troy-Bilt 781-1048A-0638

Dislodger Bracket
(Superseded to 781-04426-0638)

$81.99

$

Usually ships in 3-6 days

0

20

Troy-Bilt 781-0790-0637

Back Plate
(Superseded to 781-0790A-0637)

$37.99

$

In Stock, only 2 left!

0

21

Troy-Bilt 737-04093

Inlet Filter

$90.99

$

Usually ships in 3-6 days

0

22

Troy-Bilt 727-0443

Return Hose, 3.4" ID x 44" Lg.

$110.99

$

In Stock, only 1 left!

0

23

Troy-Bilt 726-0132

Hose Clamp, 5.8"

$14.99

$

Usually ships in 3-6 days

0

24

Troy-Bilt 737-0316

Filter Housing
(Superseded to 753-06643)

$90.99

$

Usually ships in 3-6 days

0

25

Troy-Bilt 723-0405

Oil Filter
(Superseded to 723P0405)

$39.99

$

In Stock, Qty 5

0

26

Troy-Bilt 734-0873

Hub Cap

$11.99

$

In Stock, only 2 left!

0

27

Troy-Bilt 714-0162

Cotter Pin

$4.99

$

In Stock, Qty 20+

0

28

Troy-Bilt 712-0359

Slotted Nut, 3/4-16

$10.99

$

In Stock, Qty 5

0

29

Troy-Bilt 634-0186

Wheel Assembly

$337.99

$

In Stock, only 1 left!

0

29

Troy-Bilt 934-0180-0662

Wheel/Rim Assembly, 16.0 x 4.8 x 8.0
(Superseded to 634-0186)

Note: Not shown

$337.99

$

In Stock, only 1 left!

0

29

Troy-Bilt 921-0168

Dust Seal

Note: Not shown

$9.49

$

In Stock, Qty 18

0

29

Troy-Bilt 941-0987

Bearing, .75
(Superseded to 941-04298)

Note: Not shown

$15.99

$

In Stock, Qty 20+

0

30

Troy-Bilt 936-0351

Flat Washer, .760 ID x.500 OD
(Superseded to 736-0351)

$3.99

$

In Stock, Qty 20+

0

31

Troy-Bilt 737-0312

Adapter, 3/4-14

$48.99

$

Usually ships in 3-6 days

0

32

Troy-Bilt 710-0376

Hex Screw, 5/16-18 x 1.00

$3.99

$

In Stock, Qty 17

0

33

Troy-Bilt 737-0348A

Vented Dipstick

$21.99

$

In Stock, only 4 left!

0

34

Troy-Bilt 711-1587

Clevis Pin

$

$

Not available

35

Troy-Bilt 781-0690

Lock Rod

$33.99

$

In Stock, only 1 left!

0

36

Troy-Bilt 914-0470

Cotter Pin
(Superseded to 714-0470)

$3.99

$

In Stock, Qty 20+

0

37

Troy-Bilt 726-0214

Push Cap

$9.99

$

In Stock, Qty 20+

0

38

Troy-Bilt 732-0583

Compression Spring

$11.99

$

Usually ships in 3-6 days

0

39

Troy-Bilt 781-04180-0637

Log Tray Bracket

$32.99

$

In Stock, Qty 7

0

40

Troy-Bilt 710-04484

Hex Washer Screw, 5/16-18 x .750

$3.49

$

In Stock, Qty 20+

0

41

Troy-Bilt 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

42

Troy-Bilt 781-04179-0637

Log Tray

$46.99

$

In Stock, Qty 8

0

43

Troy-Bilt 981-04040A-0637

Frame Assembly

$909.99

$

Usually ships in 3-6 days

0

44

Troy-Bilt 710-0521

Hex Bolt, 3/8-16 x 3

$4.99

$

In Stock, Qty 15

0

45

Troy-Bilt 719-0353

Coupling Shield

$50.99

$

Usually ships in 3-6 days

0

46

Troy-Bilt 914-0122

Square Key, 3/16 x.75
(Superseded to 714-0122)

$

$

Not available

47

Troy-Bilt 918-04145

Coupling, Logsplitter

Note: (Incl. Parts Below)

$84.99

$

In Stock, Qty 12

0

47

Troy-Bilt 718-04392

Coupling, .500

Note: Not shown

$13.99

$

In Stock, only 4 left!

0

47

Troy-Bilt 718-04395

Coupling, .875

Note: Not shown

$17.99

$

In Stock, Qty 9

0

47

Troy-Bilt 735-04103

Spider Bushing

Note: Not shown

$13.99

$

In Stock, Qty 8

0

47

Troy-Bilt 710-1842

Set Screws
(Superseded to 710-1842A)

Note: Not shown

$5.49

$

In Stock, Qty 8

0

48

Troy-Bilt 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

49

Troy-Bilt 781-0097-0637

Rear Coupling Support Bracket

$64.99

$

In Stock, only 3 left!

0

50

Troy-Bilt 781-1024-0637

Fender Mounting Bracket
(Superseded to 781-1024A-0637)

$29.99

$

Usually ships in 3-6 days

0

51

Troy-Bilt 727-04130

Hose

$99.99

$

In Stock, only 1 left!

0

52

Troy-Bilt 918-04127

Gear Pump

$698.99

$

Usually ships in 3-6 days

0

53

Troy-Bilt 737-0329

45 Degree Elbow Fitting

$

$

Not available

54

Troy-Bilt 727-0502

High Pressure Hydraulic Hose

$194.99

$

Usually ships in 3-6 days

0

55

Troy-Bilt 781-0788-0638

Tongue Assembly

$

$

Not available

56

Troy-Bilt 747-1261

Latch Rod

$37.99

$

Usually ships in 3-6 days

0

57

Troy-Bilt 781-1045-0638

Latch

$55.99

$

Usually ships in 3-6 days

0

58

Troy-Bilt 932-3127

Compression Spring

$4.49

$

In Stock, Qty 18

0

59

Troy-Bilt 736-0371

Flat Washer

$4.49

$

In Stock, Qty 7

0

60

Troy-Bilt 711-04585

Clevis Pin

$6.49

$

In Stock, only 3 left!

0

61

Troy-Bilt 710-3085

Hex Cap Screw, 3/8-16 x 3.50

$4.49

$

In Stock, Qty 20+

0

62

Troy-Bilt 936-0185

Flat Washer, .375 x.738 x.063
(Superseded to 736-0185)

$3.49

$

In Stock, Qty 16

0

63

Troy-Bilt 747-04539

Hydraulic Valve Control
(Superseded to 747-04539A)

$42.99

$

In Stock, only 1 left!

0

64

Troy-Bilt 681-04030

Hitch Coupling Assembly

$67.99

$

Usually ships in 3-6 days

0

65

Troy-Bilt 713-0433A

Chain

$41.99

$

Usually ships in 3-6 days

0

66

Troy-Bilt 731-2496A

Fender

$76.99

$

Usually ships in 3-6 days

0

67

Troy-Bilt 911-0813

Clevis Pin

$6.49

$

In Stock, only 1 left!

0

68

Troy-Bilt 720-04088

Grip

$9.99

$

In Stock, only 1 left!

0

69

Troy-Bilt 732-0194

Spring Pin

$4.49

$

In Stock, only 1 left!

0

70

Troy-Bilt 781-0789-0638

Jack Stand

$

$

Not available

71

Troy-Bilt 915-0120

Spiral Pin
(Superseded to 715-0120)

$9.99

$

In Stock, only 4 left!

0

72

Troy-Bilt 710-0650

TT Screw, 5/16-18 x 0.875

$3.99

$

In Stock, Qty 20+

0

73

Troy-Bilt 710-0602

TT Screw, 5/16-18 x 1.00

$4.49

$

In Stock, Qty 20+

0

74

Troy-Bilt 913-04036

Valve Handle Link

$19.99

$

In Stock, only 2 left!

0

75

Troy-Bilt 914-0111

Cotter Pin
(Superseded to 714-0111)

$4.49

$

In Stock, Qty 20+

0

76

Troy-Bilt 781-0526A

Hose Guard, 44"

$49.99

$

Usually ships in 3-6 days

0

77

Troy-Bilt 781-0538A

Hose Guard, 48"

$33.99

$

Usually ships in 3-6 days

0

78

Troy-Bilt 710-0502A

Sems Screw, 3/8-16 x 1.250

$6.49

$

In Stock, Qty 7

0

79

Troy-Bilt 736-3010

Flat Washer, .407 x .812 x .135

$4.49

$

In Stock, Qty 20+

0
