LS 27 (24BF572B756) - Cub Cadet Log Splitter (2010) Honda Fuel Tank & Fan Cover Parts Diagram

Log Splitter

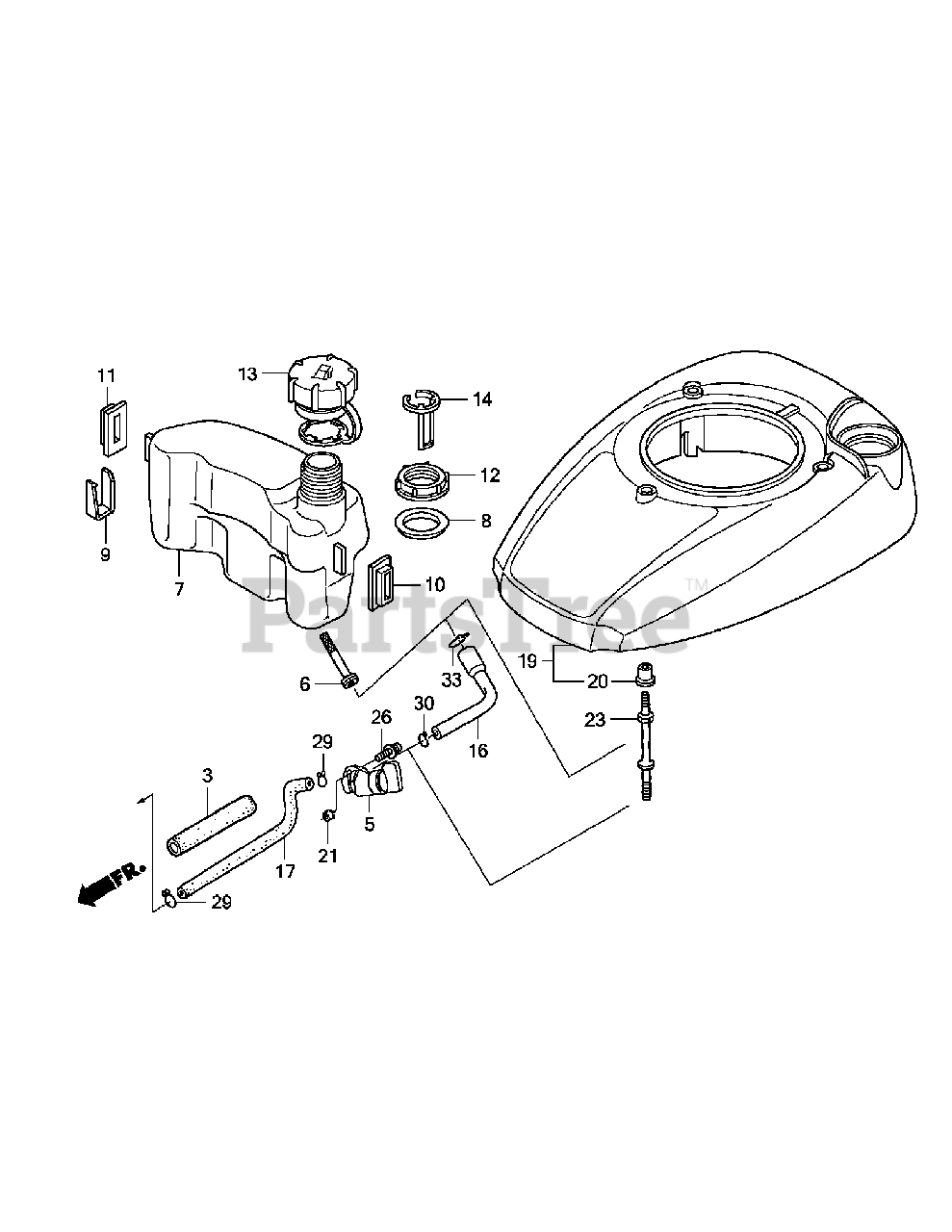

Honda Fuel Tank & Fan Cover Parts Diagram

  • Title

3

Honda 16854-ZH8-000

Rubber, Supporter (107mm)

$4.99

$

In Stock, Qty 10

0

5

Honda 16950-ZM0-003

Petcock Assy.

$8.99

$

In Stock, Qty 9

0

6

Honda 16952-ZA8-800

Filter, Fuel

$8.49

$

In Stock, Qty 20+

0

7

Honda 17511-Z0L-000

Tank, Fuel

$32.99

$

Usually ships in 3-6 days

0

8

Honda 17514-Z0L-000

Seal, Fuel Filler Neck

$0.99

$

In Stock, Qty 5

0

9

Honda 17516-Z0L-000

Clip, Tank Mounting.

$0.99

$

In Stock, only 4 left!

0

10

Honda 17532-Z0L-000

Rubber A, Tank Mounting

$0.99

$

In Stock, Qty 9

0

11

Honda 17533-Z0L-000

Rubber B, Tank Mounting

$0.99

$

In Stock, Qty 6

0

12

Honda 17534-Z0L-000

Nut, Tank Mounting

$0.99

$

In Stock, only 4 left!

0

13

Honda 17620-Z0J-800

Cap Assy., Fuel Tank.
(Superseded to 17620-Z8B-800)

$22.99

$

In Stock, Qty 14

0

14

Honda 17636-Z0L-000

Gauge, Fuel Level

$0.99

$

In Stock, Qty 9

0

16

Honda 17701-Z0L-810

Tube, Fuel Tank

$3.99

$

In Stock, Qty 9

0

17

Honda 17702-ZM0-800

Tube, Fuel

$8.99

$

In Stock, only 3 left!

0

19

Cub Cadet 19610-Z0L-850ZA

Cover, Fan *nh1* (Black)
(Superseded to 19611-Z0L-850ZA)

$37.99

$

In Stock, only 1 left!

0

20

Honda 19619-ZL8-300

Collar, Fan Cover

$1.49

$

In Stock, Qty 9

0

21

Honda 91501-Z0L-800

Collar, Fuel Petcock

$1.99

$

Usually ships in 3-6 days

0

23

Honda 90043-ZL8-000

Bolt, Stud (H=42.5mm)

$4.49

$

In Stock, Qty 20+

0

26

Honda 93891-05010-08

Screw-washer (5x10)

$1.49

$

In Stock, only 2 left!

0

29

Honda 95002-02080

Clip, Tube (B8)

$2.49

$

In Stock, Qty 20+

0

30

Honda 95002-02100

Clip, Tube (B10)

$2.49

$

In Stock, Qty 16

0

33

Honda 95002-70000

Clip, Tube (C11)

$1.99

$

In Stock, Qty 20+

0
