LS 27 CC (24BG5HM5710) - Cub Cadet Log Splitter (2017) Cylinder Parts Diagram

Log Splitter

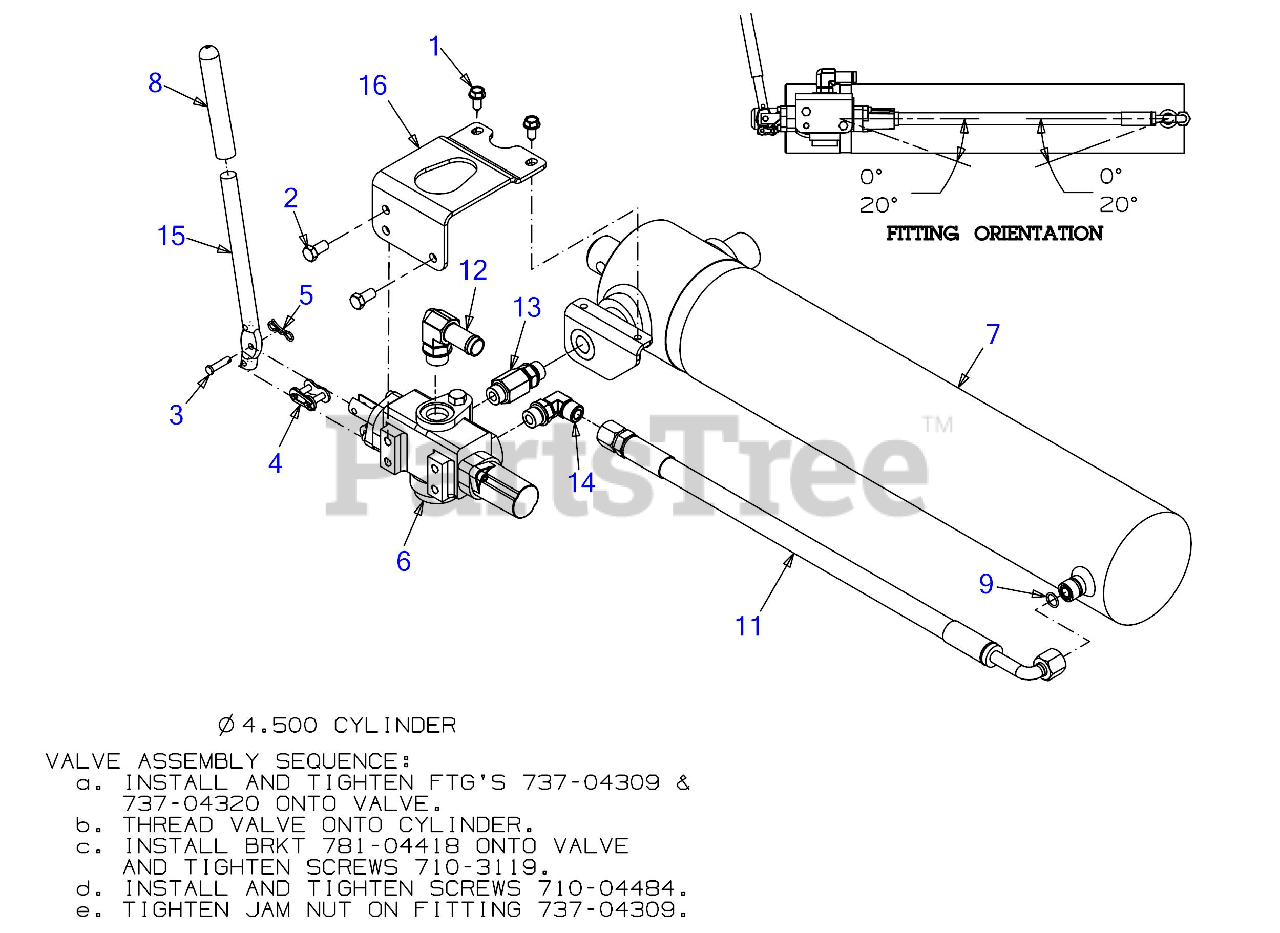

Cylinder Parts Diagram

  • Title

1

Cub Cadet 710-04484

SCREW 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

2

Cub Cadet 710-3119

SCREW 3/8-16 x .75 GR 5

$7.49

$

In Stock, Qty 20+

0

3

Cub Cadet 711-04585

CLEVIS PIN .25 x 1.00

$7.49

$

In Stock, Qty 11

0

4

Cub Cadet 913-04036

VALVE HANDLE LINK

$22.99

$

In Stock, only 2 left!

0

5

Cub Cadet 714-04040

BOW TIE COTTER PIN 1/4-5/16

$1.49

$

In Stock, Qty 20+

0

6

Cub Cadet 718-04706P

LOGSPLITTER VALVE

$388.99

$

In Stock, only 1 left!

0

7

Cub Cadet 918-04713

HYDRAULIC CYLINDER

$866.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 720-04088

GRIP

$10.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 721-04411

O-RING

$4.49

$

Usually ships in 3-6 days

0

11

Cub Cadet 727-04362

HYDRAULIC HOSE

$97.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 737-04307

HYDRAULIC FITTING

$25.99

$

In Stock, only 2 left!

0

13

Cub Cadet 737-04309

HYDRAULIC FITTING

$20.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 737-04320

HYDRAULIC FITTING

$21.99

$

In Stock, only 3 left!

0

15

Cub Cadet 747-04539A

CONTROL VALVE HANDLE

$48.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 781-04418-0637

VALVE BRACKET

$18.99

$

Usually ships in 3-6 days

0
