LS 27 CC (24BG5HM5710) - Cub Cadet Log Splitter (2017) Pump Parts Diagram

Log Splitter

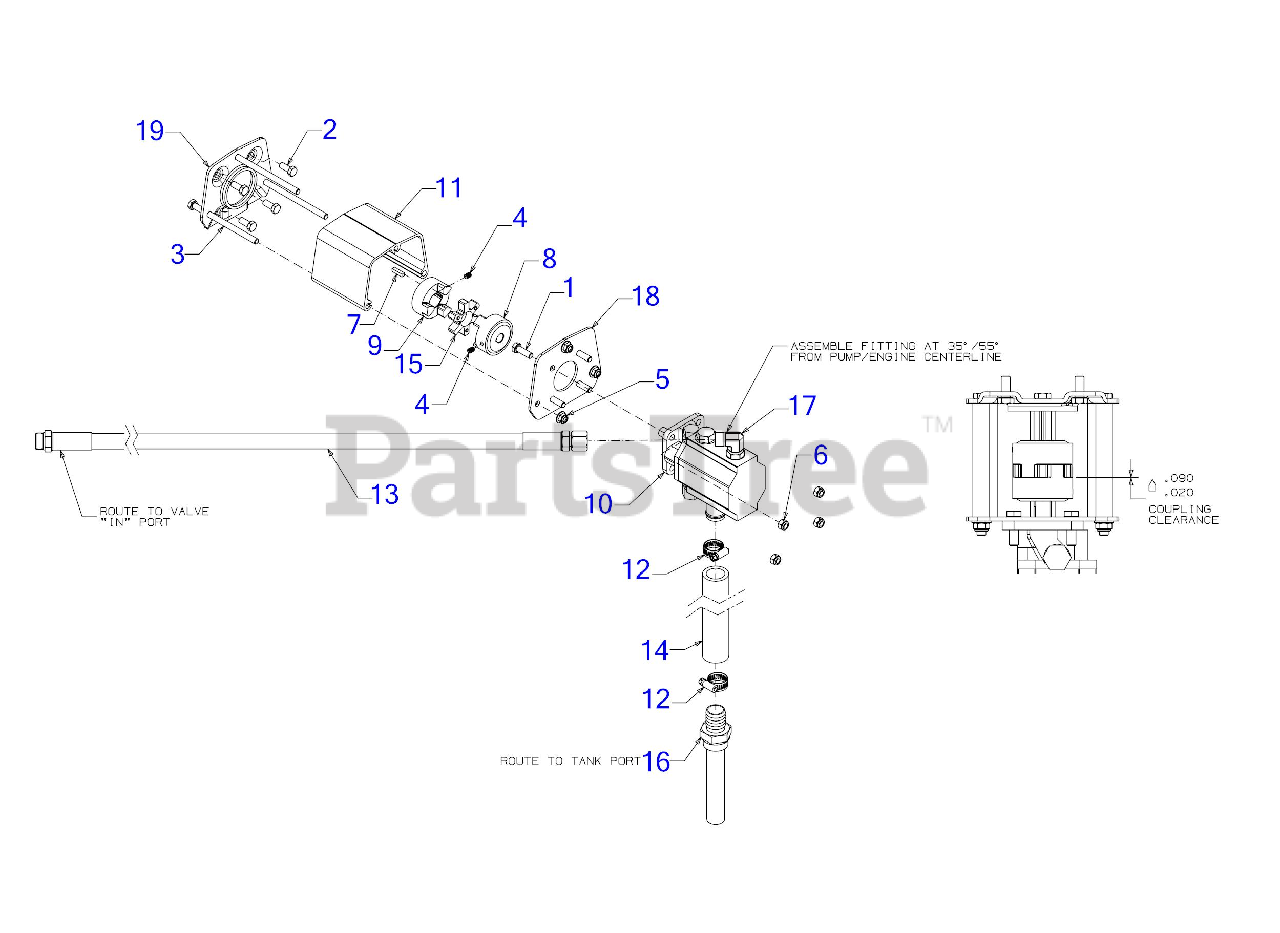

Pump Parts Diagram

  • Title

1

Cub Cadet 710-0376

SCREW 5/16-18 x 1.0 GR5

$3.99

$

In Stock, Qty 17

0

2

Cub Cadet 710-0627

SCREW 5/16-24 x .750 GR5

$3.99

$

In Stock, Qty 20+

0

3

Cub Cadet 710-0974

SCREW 5/16-18 x 4.750 GR5

$11.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 710-1842A

SCREW 1/4-20 x .38

$5.49

$

In Stock, Qty 8

0

5

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 912-0429

HEX NUT
(Superseded to 712-0429)

$3.99

$

In Stock, Qty 20+

0

7

Cub Cadet 914-0122

SQUARE KEY 3/16 x .7
(Superseded to 714-0122)

$

$

Not available

8

Cub Cadet 718-04392

LOGSPLITTER COUPLING .500

$13.99

$

In Stock, only 4 left!

0

9

Cub Cadet 718-04395

LOGSPLITTER COUPLING .875

$17.99

$

In Stock, Qty 9

0

10

Cub Cadet 918-04729

GEAR PUMP

$656.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 719-0281

COUPLING SHIELD

$41.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 726-0132

HOSE CLAMP-5/8

$14.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 727-04288

48" HYDRAULIC HOSE

$85.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 727-0451

SUCTION HOSE

$100.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 735-04103

SPIDER COUPLING BUSHING

$13.99

$

In Stock, Qty 8

0

16

Cub Cadet 737-04308

INLET FILTER

$40.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 737-04320

HYDRAULIC FITTING

$19.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 781-0097-0637

SUPPORT BRACKET

$64.99

$

In Stock, only 3 left!

0

19

Cub Cadet 781-0098A-0637

BRACKET

$40.99

$

Usually ships in 3-6 days

0
