LS 27 T (24AA570H100) - Cub Cadet Log Splitter (2001) Labels Parts Diagram

Log Splitter

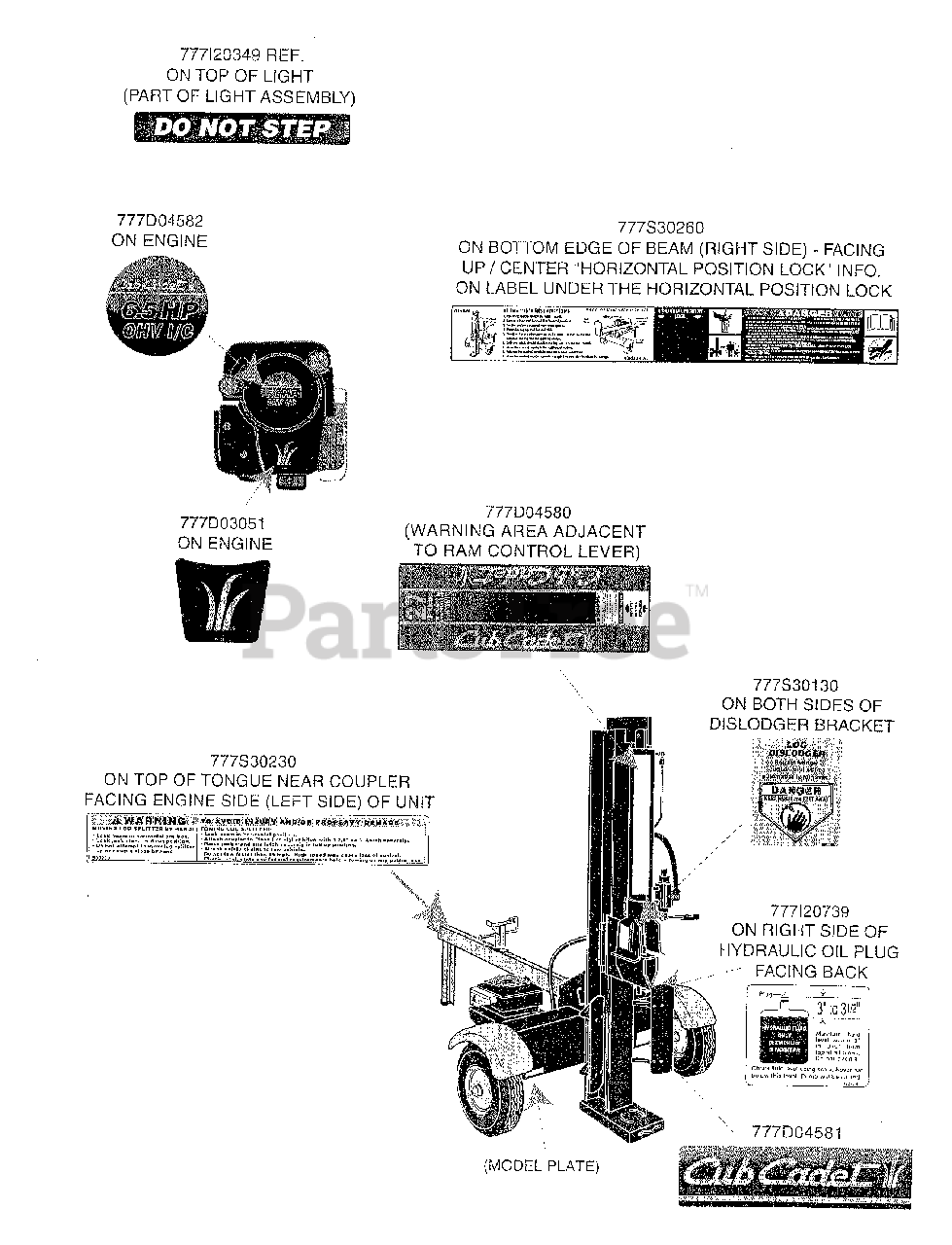

Labels Parts Diagram

  • Title

777I20349

Cub Cadet 777I20349

ON TOP OF LIGHT (PART OF LIGHT ASSEMBLY)

$3.49

$

Usually ships in 3-6 days

0

777D04582

Cub Cadet 777D04582

LABEL-6.5 HP OHV I/C

Note: ON ENGINE

$

$

Not available

777D03051

Cub Cadet 777D03051

LABEL-SPRIG LWR ENG

Note: ON ENGINE

$

$

Not available

777D04580

Cub Cadet 777D04580

LABEL-6.5 HP 27 TON

Note: (WARNING AREA ADJACENT TO RAM CONTROL LEVER)

$

$

Not available

777S30230

Cub Cadet 777S30230

ON TOP OF TONGUE NEAR COUPLER FACING ENGINE SIDE (LEFT SIDE) OF UNIT

$

$

Not available

777D04581

Cub Cadet 777D04581

LABEL-CUB CADET LGSP

$

$

Not available

777I20739

Cub Cadet 777I20739

LABEL-FLUID LEVEL TO

Note: ON RIGHT SIDE OF HYDRAULIC OIL PLUG FACING BACK

$

$

Not available

777S30130

Cub Cadet 777S30130

LABEL LOG DISLODGER

Note: ON BOTH SIDES OF DISLODGER BRACKET

$

$

Not available

777S30260

Cub Cadet 777S30260

LABEL-OPER INS/DNGR

Note: ON BOTTOM EDGE OF BEAM (RIGHT SIDE) - FACING UP / CENTER "HORIZONTAL POSITION LOCK" INFO. ON LABEL UNDER THE HORIZONTAL POSITION LOCK

$

$

Not available
