LS 27 T (24AF572B710) - Cub Cadet Log Splitter (2005-2) Oil Pan Parts Diagram

Log Splitter

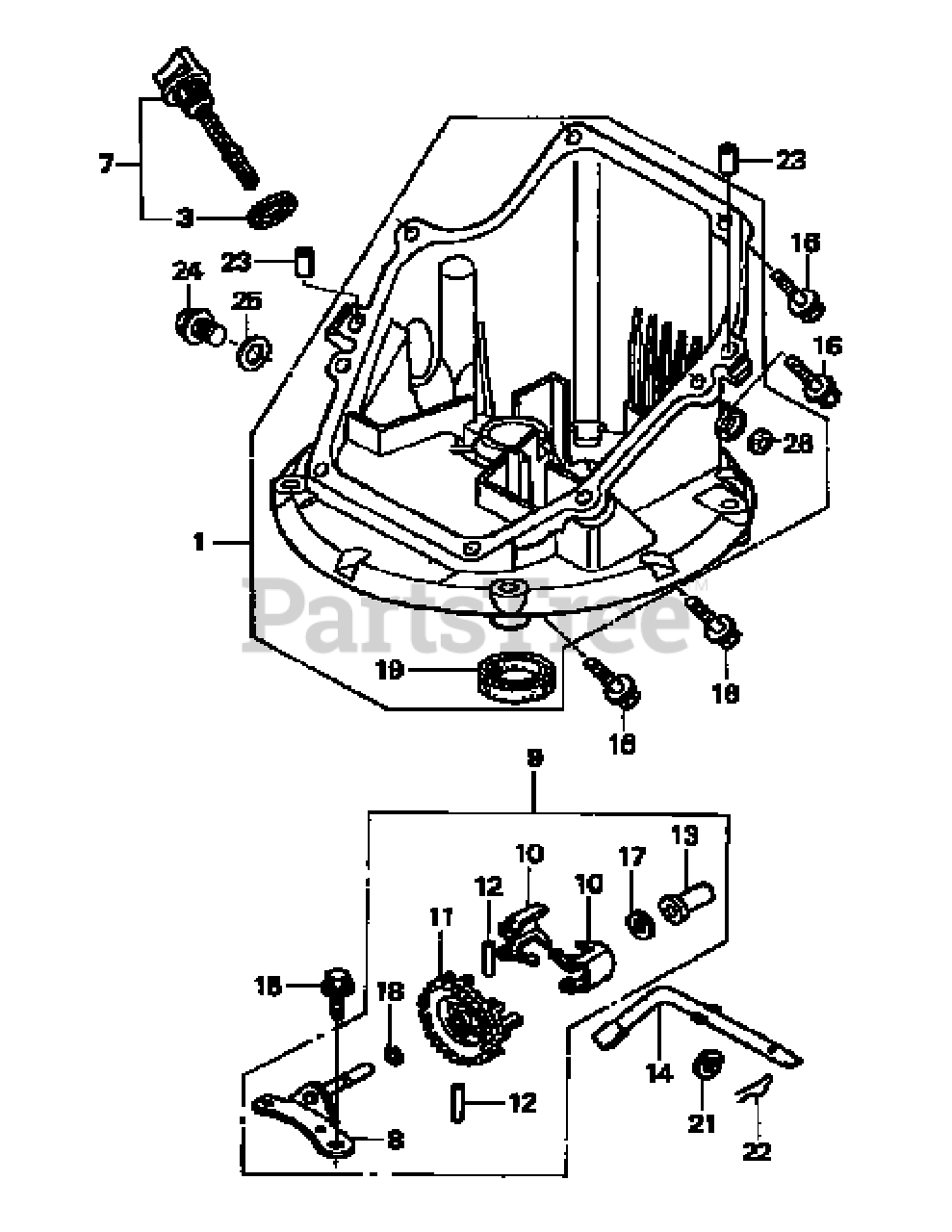

Oil Pan Parts Diagram

  • Title

1

Cub Cadet 11300-Z0L-405

Oil Pan Assy.
(Superseded to 11300-Z0L-821)

$228.99

$

Usually ships in 3-6 days

0

3

Honda 15625-ZE1-003

Oil Filler Cap Gasket

$3.49

$

In Stock, Qty 8

0

7

Honda 15650-ZM0-003

Oil Dipstick

$4.99

$

In Stock, Qty 5

0

8

Honda 16508-ZM0-010

Governor Holder Shaft

$6.99

$

Usually ships in 3-6 days

0

9

Honda 16510-ZM0-010

Governor Assy.

$21.99

$

Usually ships in 3-6 days

0

10

Honda 16511-ZL8-000

Governor Weight

$1.99

$

In Stock, only 4 left!

0

11

Honda 16512-ZM0-000

Governor Weight Holder

$12.99

$

Usually ships in 3-6 days

0

12

Honda 16513-ZE1-000

Governor Weight Pin

$1.99

$

Usually ships in 3-6 days

0

13

Honda 16531-ZE1-000

Governor Slider

$2.49

$

In Stock, only 2 left!

0

14

Honda 16541-ZM0-000

Governor Arm Shaft

$4.49

$

In Stock, only 4 left!

0

15

Honda 90014-952-000

Flange Bolt (6x14)

$2.99

$

In Stock, Qty 8

0

16

Honda 90121-952-000

Flange Bolt (6x25)

$2.99

$

In Stock, Qty 13

0

17

Honda 90451-ZE1-000

Thrust Washer (6mm)

$1.99

$

In Stock, Qty 8

0

18

Honda 90602-ZE1-000

Governor Holder Clip

$1.99

$

In Stock, Qty 11

0

19

Honda 91202-ZM0-V31

Oil Seal (28x41.25x6)

$7.99

$

In Stock, Qty 10

0

21

Honda 94101-06800

Plain Washer (6mm)

$0.99

$

In Stock, Qty 20+

0

22

Honda 94251-08000

Lock Pin (8mm)

$1.49

$

In Stock, Qty 20+

0

23

Honda 94301-08200

Dowel Pin (8x20)

$2.99

$

Usually ships in 3-6 days

0

24

Honda 90131-896-650

Drain Plug Bolt

$4.99

$

In Stock, Qty 8

0

25

Honda 94109-12000

Drain Plug Washer

$1.49

$

In Stock, Qty 20+

0
