LS-27 W (24AF570L790) - White Outdoor 27-Ton Log Splitter (2005) General Assembly Parts Diagram

27-Ton Log Splitter

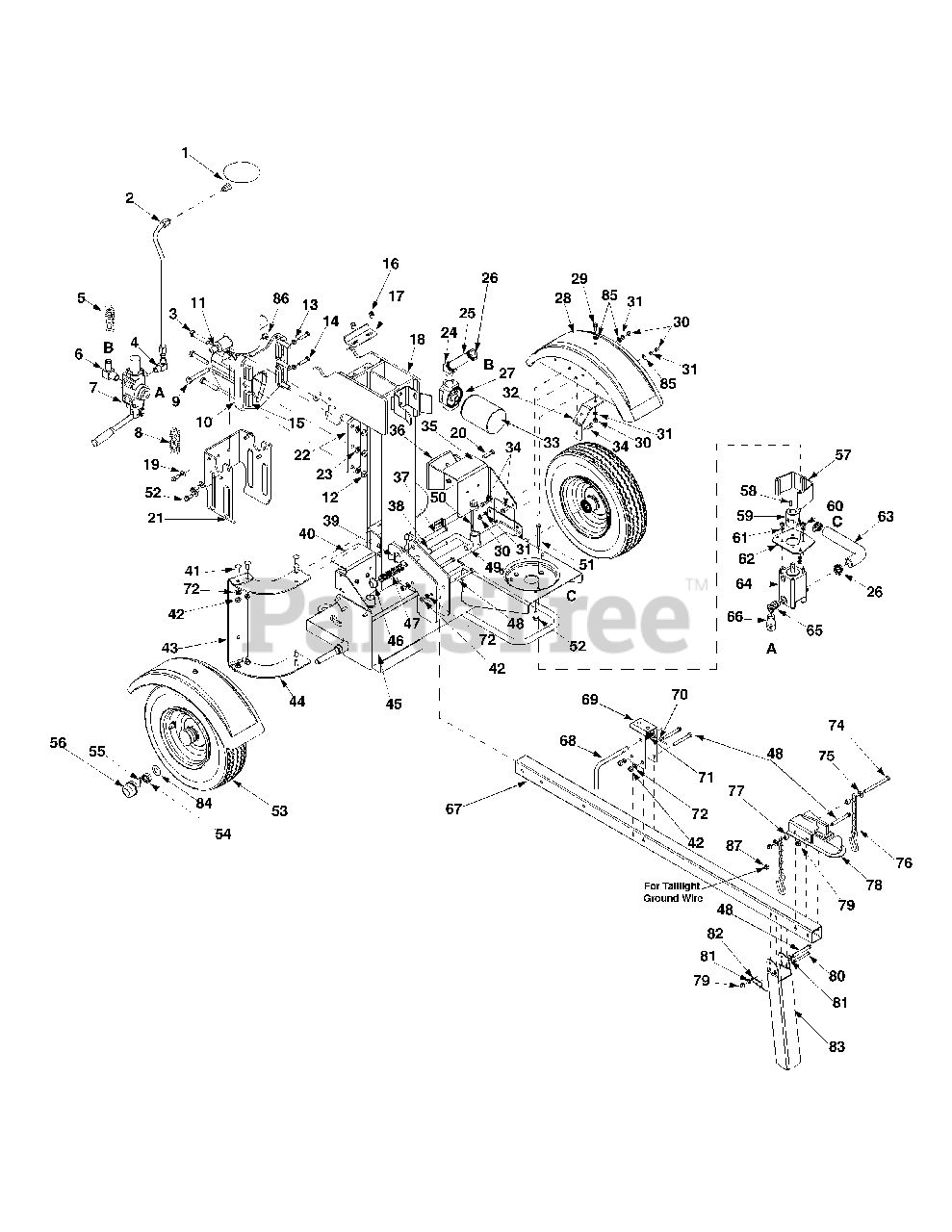

General Assembly Parts Diagram

  • Title

1

White Outdoor 918-0769A

Hydraulic Cylinder 718-0769A

$922.99

$

Usually ships in 3-6 days

0

1

White Outdoor 953-05607

Kit Seal 4.5" for XINGHUI cylinder 718-0769A

Note: See Service Kit 753-05607

$79.99

$

In Stock, only 1 left!

0

1

White Outdoor 953-05608

Kit Seal 4.5" for ENERGY cylinder 718-0769A

Note: See Service Kit 753-05608

$211.99

$

In Stock, only 2 left!

0

2

White Outdoor 727-0634

Hydraulic Tube

$

$

Not available

3

White Outdoor 710-1018

Hex Cap Screw 1/2-20 x 2.75

$10.99

$

In Stock, Qty 20+

0

4

White Outdoor 737-0192

90° Solid Adapter

$38.99

$

Usually ships in 3-6 days

0

5

White Outdoor 736-0371

Flat Washer, .434 x .880 x .062

$4.49

$

In Stock, Qty 7

0

6

White Outdoor 737-0153

Return Elbow

$53.99

$

Usually ships in 3-6 days

0

7

White Outdoor 918-0481A

Control Valve

$365.99

$

In Stock, only 4 left!

0

8

White Outdoor 936-0119

Lock Washer, 5/16

$4.49

$

In Stock, Qty 20+

0

9

White Outdoor 710-1806

Hex Cap Screw 1/2-13 x 3.25

$9.49

$

In Stock, Qty 12

0

10

White Outdoor 719-0550A

Wedge Assembly

$245.99

$

In Stock, only 1 left!

0

11

White Outdoor 737-0238

Nipple Pipe 1/2-14

$24.99

$

In Stock, only 1 left!

0

12

White Outdoor 912-0239

Lock Nut 1/2-20
(Superseded to 712-0239)

$

$

Not available

13

White Outdoor 712-0711

Hex Jam Nut 3/8-24

$3.99

$

In Stock, Qty 20+

0

14

White Outdoor 710-0459A

Hex Cap Screw 3/8-24 x 1.5

$6.99

$

In Stock, Qty 10

0

15

White Outdoor 781-0351

Adjustable Gib

$17.99

$

Usually ships in 3-6 days

0

16

White Outdoor 710-1260A

Screw 5/16-18 x.75

$3.49

$

In Stock, Qty 20+

0

17

White Outdoor 781-1054-0637

Cylinder Support Bracket

$

$

Not available

18

White Outdoor 681-0162-0637

Beam Assembly
(Superseded to 681-04071A-0637)

$1726.99

$

Usually ships in 3-6 days

0

19

White Outdoor 936-0300

Flat Washer.406 ID x.875 OD
(Superseded to 736-0300)

$3.99

$

In Stock, Qty 20+

0

20

White Outdoor 710-0654A

Hex Washer Screw 3/8-16 x 1.0

$3.99

$

In Stock, only 4 left!

0

21

White Outdoor 781-1048A-0637

Dislodger
(Superseded to 781-04426-0637)

$81.99

$

Usually ships in 3-6 days

0

22

White Outdoor 781-0790-0637

Back Plate
(Superseded to 781-0790A-0637)

$37.99

$

In Stock, only 2 left!

0

23

White Outdoor 936-0921

Lock Washer 1/2
(Superseded to 736-0921)

$4.49

$

In Stock, Qty 20+

0

24

White Outdoor 737-0312

Adapter 3/4-14

$48.99

$

Usually ships in 3-6 days

0

25

White Outdoor 727-0443

Return Hose 3/4" ID x 44"

$110.99

$

In Stock, only 1 left!

0

26

White Outdoor 726-0132

Hose Clamp 5/8"

$14.99

$

Usually ships in 3-6 days

0

27

White Outdoor 737-0316

Filter Housing
(Superseded to 753-06643)

$90.99

$

Usually ships in 3-6 days

0

28

White Outdoor 710-0874

Hex Screw, 5/16-18 x 1.25

$6.49

$

Usually ships in 3-6 days

0

29

White Outdoor 710-0376

Hex Screw , 5/16-18 x 1.0

$3.99

$

In Stock, Qty 17

0

30

White Outdoor 712-04063

Hex Flange Nut, Nylon, 5/16-18

$3.99

$

In Stock, Qty 20+

0

31

White Outdoor 936-0351

Flat Washer.760 ID x.500 OD
(Superseded to 736-0351)

$3.99

$

In Stock, Qty 20+

0

32

White Outdoor 710-3056

Hex Bolt 5/16-18 x 3.25"

$9.49

$

In Stock, only 1 left!

0

33

White Outdoor 723-0405

Oil Filter
(Superseded to 723P0405)

$39.99

$

In Stock, only 4 left!

0

35

White Outdoor 781-1024-0637

Mounting Bracket, Fender
(Superseded to 781-1024A-0637)

$29.99

$

Usually ships in 3-6 days

0

36

White Outdoor 710-1238

Hex Screw, 5/16-18 x .875
(Superseded to 710-1238A)

$3.99

$

In Stock, Qty 10

0

37

White Outdoor 711-1587

Clevis Pin

$

$

Not available

38

White Outdoor 936-0116

Flat Washer.635 ID x.93 OD

$6.49

$

In Stock, only 1 left!

0

39

White Outdoor 914-0470

Cotter Pin
(Superseded to 714-0470)

$3.99

$

In Stock, Qty 20+

0

40

White Outdoor 731-2496A

Fender, Black

$76.99

$

Usually ships in 3-6 days

0

41

White Outdoor 710-3097

Carriage Bolt 3/8-16 x 1.0

$6.49

$

In Stock, Qty 5

0

42

White Outdoor 712-04065

Hex Nut 3/8-16

$3.99

$

In Stock, Qty 20+

0

43

White Outdoor 753-05424

Log Tray

$49.99

$

Usually ships in 3-6 days

0

44

White Outdoor 753-05423

Log Tray Bracket

$

$

Not available

45

White Outdoor 681-04040A

Frame Assembly
(Superseded to 981-04040A-0637)

$909.99

$

Usually ships in 3-6 days

0

46

White Outdoor 726-0214

Push Cap

$9.99

$

In Stock, Qty 20+

0

47

White Outdoor 732-0583

Compression Spring

$11.99

$

In Stock, only 2 left!

0

48

White Outdoor 710-3130

Hex Bolt 3/8-16 x 3.25"

$9.49

$

In Stock, Qty 20+

0

49

White Outdoor 781-0690

Lock Rod

$33.99

$

In Stock, only 1 left!

0

50

White Outdoor 737-0348A

Vented Dipstick

$21.99

$

In Stock, Qty 5

0

51

White Outdoor 710-1338

Hex Screw 5/16-24 x 3.25

$

$

Not available

53

White Outdoor 634-0186

Wheel Assembly

$337.99

$

In Stock, only 1 left!

0

53

White Outdoor 941-0987

Cone Bearing
(Superseded to 941-04298)

$15.99

$

In Stock, Qty 20+

0

53

White Outdoor 921-0168

Grease Retainer

$9.49

$

In Stock, Qty 18

0

54

White Outdoor 712-0359

Slotted Nut 3/4-16

$10.99

$

In Stock, Qty 5

0

55

White Outdoor 714-0162

Cotter Pin

$4.99

$

In Stock, Qty 20+

0

56

White Outdoor 734-0873

Hub Cap

$11.99

$

In Stock, only 2 left!

0

57

White Outdoor 719-0353

Coupling Shield

$50.99

$

Usually ships in 3-6 days

0

58

White Outdoor 914-0122

Square Key 3/16" x.75
(Superseded to 714-0122)

$

$

Not available

59

White Outdoor 918-04145

Flexible Coupling

$84.99

$

In Stock, Qty 12

0

60

White Outdoor 747-04093A

Inlet Filter

$

$

Not available

61

White Outdoor 781-0789-0650

Jack Stand
(Superseded to 781-0789)

$

$

Not available

62

White Outdoor 781-0097-0637

Rear Coupling Support Bracket

$64.99

$

In Stock, only 3 left!

0

63

White Outdoor 727-04130

Hose

$99.99

$

In Stock, only 1 left!

0

64

White Outdoor 918-04127

Gear Pump

$698.99

$

Usually ships in 3-6 days

0

65

White Outdoor 737-0329

45° Elbow

$

$

Not available

66

White Outdoor 727-0502

High Pressure Hydraulic Hose

$194.99

$

Usually ships in 3-6 days

0

67

White Outdoor 781-0788-0650

Tongue Tube Assembly
(Superseded to 781-0788-0637)

$

$

Not available

68

White Outdoor 747-1261

Tongue Latch Rod

$37.99

$

Usually ships in 3-6 days

0

69

White Outdoor 781-1045-0650

Latch

$51.99

$

Usually ships in 3-6 days

0

70

White Outdoor 915-0120

Spiral Pin
(Superseded to 715-0120)

$9.99

$

In Stock, Qty 5

0

71

White Outdoor 932-3127

Compression Spring

$4.49

$

In Stock, Qty 19

0

72

White Outdoor 936-0169

L-Washer 3/8"
(Superseded to 736-0169)

$3.49

$

In Stock, Qty 20+

0

73

White Outdoor 712-3022

Hex Lock Nut 1/2-13

$3.99

$

In Stock, Qty 20+

0

74

White Outdoor 710-0944

Hex Cap Screw 3/8-16 x 4.25

$10.99

$

In Stock, Qty 20+

0

75

White Outdoor 736-0262

Flat Washer.385 ID x.870 OD

$3.99

$

In Stock, Qty 20+

0

76

White Outdoor 713-0433A

Chain

$41.99

$

Usually ships in 3-6 days

0

77

White Outdoor 750-0497

Spacer.375 ID x.625 OD

$9.99

$

Usually ships in 3-6 days

0

78

White Outdoor 681-04030

Hitch Coupler

$67.99

$

Usually ships in 3-6 days

0

79

White Outdoor 712-0375

Hex Lock Nut 3/8-16

$4.49

$

In Stock, Qty 12

0

80

White Outdoor 911-0813

Clevis Pin

$6.49

$

In Stock, only 1 left!

0

81

White Outdoor 936-0185

Flat Washer.375 ID x.738 OD
(Superseded to 736-0185)

$3.49

$

In Stock, Qty 17

0

82

White Outdoor 732-0194

Spring Pin

$4.49

$

In Stock, only 1 left!

0

83

White Outdoor 710-3038

Hex Screw, 5/16-18 x .875

$4.49

$

In Stock, Qty 5

0

84

White Outdoor 912-3010

Hex Nut, 5/16-18
(Superseded to 712-3010)

$

$

Not available

85

White Outdoor 625-0062

Taillight

$181.99

$

Usually ships in 3-6 days

0

85

White Outdoor 725-2058

Tail Light - RH

Note: Not Shown

$

$

Not available

85

White Outdoor 725-2059

Tail Light - LH

Note: Not Shown

$

$

Not available

85

White Outdoor 725-2060

Harness - Wire

Note: Not Shown

$

$

Not available

86

White Outdoor 681-0164-0637

Light Bracket, LH

$55.99

$

Usually ships in 3-6 days

0

87

White Outdoor 781-1027-0637

Light Bracket, RH
(Superseded to 781-1027A-0637)

$32.99

$

Usually ships in 3-6 days

0

88

White Outdoor 781-0526A

Hose Guard

$49.99

$

Usually ships in 3-6 days

0

89

White Outdoor 781-0538A

Hose Guard

$33.99

$

Usually ships in 3-6 days

0
