LS 33 (24AD597D711) - Troy-Bilt Log Splitter (2009)

Log Splitter

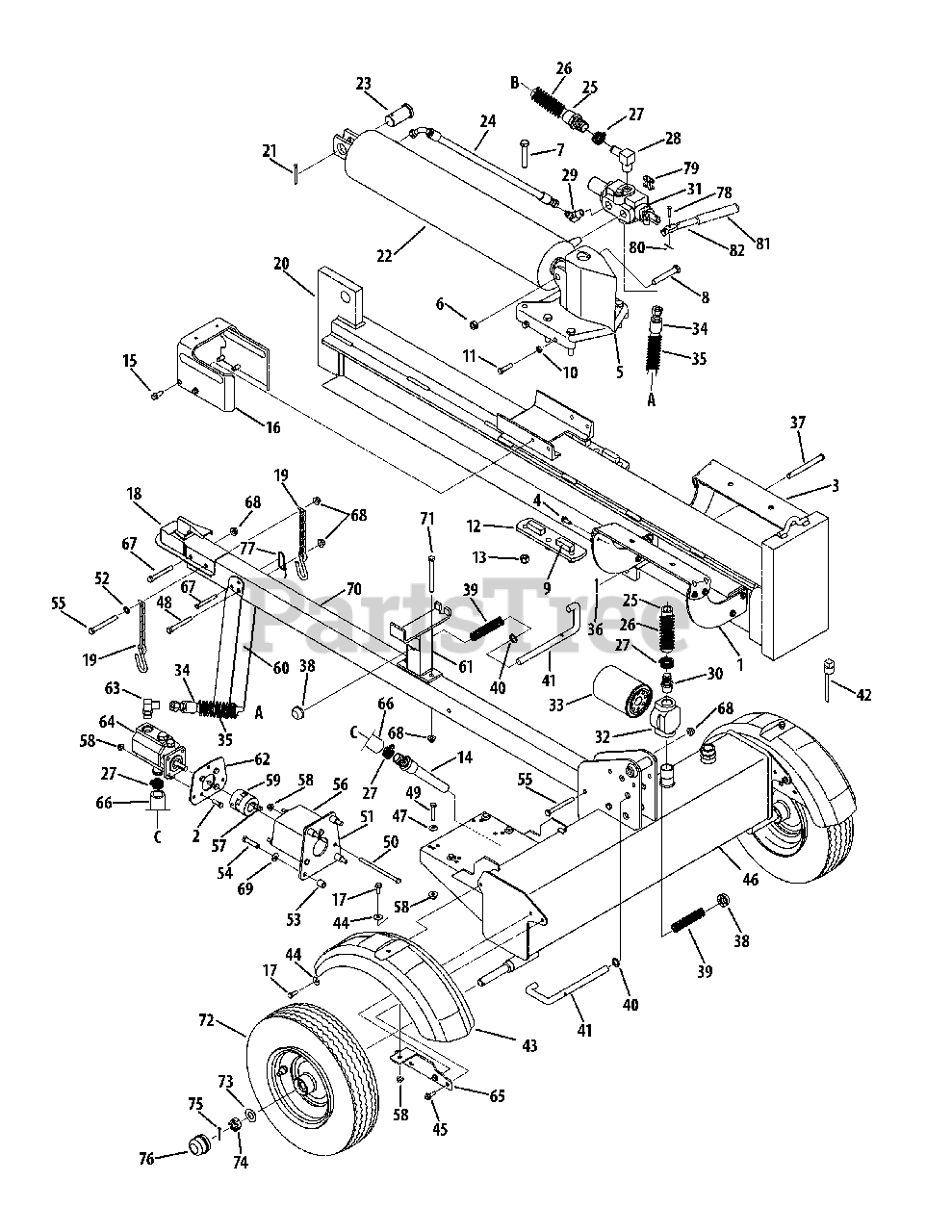

LS 33 (24AD597D711) - Troy-Bilt Log Splitter (2009) > Parts Diagrams (6) > General Assembly

  • Title
781-04180-0637

1

Log Tray Bracket

Part# 781-04180-0637

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 1 business day

Your price: $22.84

710-0376

2

Hex Screw, 5/16-18 x 1.00

Part# 710-0376

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 1 business day

Your price: $2.69

781-04179-0637

3

Log Tray Bracket

Part# 781-04179-0637

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 5 to 10 business days

Your price: $32.65

710-04484

4

Self-Tapping Screw, 5/16-18 x .750

Part# 710-04484

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 1 business day

Your price: $2.47

719-0550A

5

Wedge Assembly

Part# 719-0550A

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 5 to 10 business days

Your price: $178.63

712-3022

6

Lock Nut, 1/2-13

Part# 712-3022

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 1 business day

Your price: $2.65

710-1018

7

Hex Cap Screw, 1/2-20 x 2.75

Part# 710-1018

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 5 to 10 business days

Your price: $7.32

710-1806

8

Hex Cap Screw, 1/2-13 x 3.25

Part# 710-1806

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 1 business day

Your price: $6.92

781-0351

9

Adjustable Gib

Part# 781-0351

OEM Warranty Repair Part for Troy-Bilt

Variations

CHARCOAL GRAY (0483)

GIB-ADJ.2" LG.

Part# CHARCOAL GRAY (0483)

OEM Warranty Repair Part for Troy-Bilt

Not available

POWDER BLACK (0637)

GIB-ADJ.2" LG.

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for Troy-Bilt

Not available

712-0711

10

Hex Jam Nut, 3/8-24

Part# 712-0711

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 1 business day

Your price: $2.85

710-0459A

11

Hex Cap Screw, 3/8-24 x 1.5

Part# 710-0459A

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 1 business day

Your price: $4.76

781-0790-0637

12

Back Plate

Part# 781-0790-0637 (Superseded to 781-0790A-0637)

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 5 to 10 business days

Your price: $26.52

912-3058

13

Hex Lock Nut, 1/2-20

Part# 912-3058

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 1 business day

Your price: $3.65

737-04093

14

Inlet Filter

Part# 737-04093

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 5 to 10 business days

Your price: $64.77

710-0654A

15

Hex Washer Screw, 3/8-16 x 1.0

Part# 710-0654A

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 1 business day

Your price: $2.77

781-0525-0638

16

Dislodger

Part# 781-0525-0638

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 5 to 10 business days

Your price: $98.66

710-0650

17

Self-Tapping Screw, 5/16-18 x .875

Part# 710-0650

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 1 business day

Your price: $2.73

681-04030

18

Hitch Coupler, 2"

Part# 681-04030

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 5 to 10 business days

Your price: $47.32

713-0433A

19

Chain

Part# 713-0433A

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 5 to 10 business days

Your price: $29.11

981-04080

20

Beam Assembly

Part# 981-04080

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 5 to 10 business days

Your price: $1379.47

714-0211

21

Cotter Pin

Part# 714-0211

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 1 business day

Your price: $2.81

918-0313A

22

Hydraulic Cylinder, 31/33 Ton

Part# 918-0313A

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 5 to 10 business days

Your price: $808.02

953-05609

22

Kit Seal 5.0" for XINGHUI Cylinder

Part# 953-05609

Note: See Service Kit 753-05609

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 5 to 10 business days

Your price: $60.79

953-05610

22

Kit Seal 5.0" for ENERGY Cylinder

Part# 953-05610

Note: See Service Kit 753-05610

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 5 to 10 business days

Your price: $164.37

711-1135

23

Clevis Pin

Part# 711-1135

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 5 to 10 business days

Your price: $45.72

727-04166

24

Hydraulic Hose

Part# 727-04166

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 5 to 10 business days

Your price: $61.26

727-0443

25

Return Hose, 3/4 ID x 44"

Part# 727-0443

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 1 business day

Your price: $77.13

781-0526A

26

Hose Guard

Part# 781-0526A

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 5 to 10 business days

Your price: $34.57

726-0132

27

Hose Clamp, 5/8"

Part# 726-0132

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 5 to 10 business days

Your price: $10.00

737-0153

28

Return Elbow

Part# 737-0153

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 5 to 10 business days

Your price: $37.60

737-0192

29

90 Degree Solid Male Adapter

Part# 737-0192

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 5 to 10 business days

Your price: $27.16

737-0235

30

3/4 inch Hose Adapter

Part# 737-0235

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 5 to 10 business days

Your price: $16.61

918-0481A

31

Control Valve

Part# 918-0481A

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 1 business day

Your price: $279.26

737-0316

32

Filter Housing

Part# 737-0316 (Superseded to 753-06643)

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 5 to 10 business days

Your price: $63.63

723-0405

33

Oil Filter

Part# 723-0405

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 5 to 10 business days

Your price: $31.04

727-0502

34

High Pressure Hydraulic Hose

Part# 727-0502

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 5 to 10 business days

Your price: $136.18

781-0538A

35

Hose Guard

Part# 781-0538A

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 5 to 10 business days

Your price: $23.15

914-0470

36

Cotter Pin, 1/8

Part# 914-0470

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 1 business day

Your price: $2.85

738-0805

37

Hinge Pin, 1/2 x 4.8" Lg.

Part# 738-0805

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 5 to 10 business days

Your price: $7.89

726-0214

38

Push Cap

Part# 726-0214

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 1 business day

Your price: $6.74

732-0583

39

Compression Spring, 4"

Part# 732-0583

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 1 business day

Your price: $7.90

936-0116

40

Flat Washer, .635 ID x .93 OD

Part# 936-0116

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 5 to 10 business days

Your price: $4.50

781-0690

41

Locking Rod

Part# 781-0690

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 1 business day

Your price: $23.23

737-0348A

42

Vented Dipstick

Part# 737-0348A

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 1 business day

Your price: $15.23

731-2496A

43

Fender

Part# 731-2496A

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 5 to 10 business days

Your price: $53.74

736-0371

44

Flat Washer, .343 x .880 x .062

Part# 736-0371

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 1 business day

Your price: $2.92

710-0602

45

Self-Tapping Screw, 5/16-18 x 1.00

Part# 710-0602

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 1 business day

Your price: $2.96

981-04041A-0637

46

Frame Assembly, 7.0 Gal

Part# 981-04041A-0637 (Superseded to 981-04041B-0637)

OEM Warranty Repair Part for Troy-Bilt

Not available

736-0242

47

Bell Washer, 340 x .872 x .060

Part# 736-0242

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 1 business day

Your price: $2.77

710-0521

48

Hex Cap Screw, 3/8-16 x 3.00

Part# 710-0521

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 1 business day

Your price: $3.37

710-3180

49

Hex Cap Screw, 5/16-18 x 1.75

Part# 710-3180

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 1 business day

Your price: $3.62

710-3226

50

Hex Cap Screw, 5/16-18 x 5.50

Part# 710-3226

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $10.11

781-1100-0637

51

Front Support Bracket Coupling

Part# 781-1100-0637

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 5 to 10 business days

Your price: $36.48

936-0185

52

Flat Washer, .375 x .738 x .063

Part# 936-0185

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 1 business day

Your price: $2.55

711-0396

53

Spacer, .385 x .623 x .750

Part# 711-0396

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 5 to 10 business days

Your price: $7.44

710-0347

54

Hex Cap Screw, 3/8-16 x 1.75

Part# 710-0347

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 1 business day

Your price: $3.26

710-3085

55

Hex Cap Screw, 3/8-16 x 3.50

Part# 710-3085

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 1 business day

Your price: $2.89

719-0315

56

Coupling Shield

Part# 719-0315

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 5 to 10 business days

Your price: $88.65

914-0114

57

Key

Part# 914-0114

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 1 business day

Your price: $2.74

712-04063

58

Hex Flange Lock Nut, 5/16-18

Part# 712-04063

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 1 business day

Your price: $2.75

718-04392

59

Coupling, .500

Part# 718-04392

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 1 business day

Your price: $9.71

718-04393

59

Coupling, 1.00

Part# 718-04393

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 1 business day

Your price: $14.08

735-04103

59

Spider Bushing

Part# 735-04103

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 1 business day

Your price: $9.71

710-1842

59

Set Screw, 1/4-20 x .38

Part# 710-1842 (Superseded to 710-1842A)

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 1 business day

Your price: $3.55

781-0162-0637

60

Jack Stand

Part# 781-0162-0637

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 5 to 10 business days

Your price: $82.45

781-0398-0637

61

Support Beam Assembly

Part# 781-0398-0637

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 5 to 10 business days

Your price: $83.21

781-0097-0637

62

Rear Coupling Support Bracket

Part# 781-0097-0637

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 1 business day

Your price: $45.48

737-0264

63

Adapter, 7/8-14

Part# 737-0264

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 5 to 10 business days

Your price: $40.02

918-04128

64

Pump

Part# 918-04128

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 5 to 10 business days

Your price: $677.11

781-04174

65

Fender Mounting Bracket

Part# 781-04174

OEM Warranty Repair Part for Troy-Bilt

Variations

POWDER BLACK (0637)

BRACKET:MOUNT:FEND

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 5 to 10 business days

Your price: $36.95

727-0451

66

Suction Hose

Part# 727-0451

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 5 to 10 business days

Your price: $70.29

911-0813

67

Clevis Pin, 5/16 x 2.5

Part# 911-0813

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 1 business day

Your price: $4.40

712-04065

68

Flange Lock Nut, 3/8-16

Part# 712-04065

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 1 business day

Your price: $2.71

936-0169

69

Lock Washer, 3/8

Part# 936-0169

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 1 business day

Your price: $2.47

781-0680B-0638

70

Tube

Part# 781-0680B-0638 (Superseded to 781-0680B-0637)

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 5 to 10 business days

Your price: $154.66

710-0411

71

Hex Cap Screw, 3/8-16 x 4.0

Part# 710-0411

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 1 business day

Your price: $5.31

634-0186

72

Wheel Assembly

Part# 634-0186

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 5 to 10 business days

Your price: $248.93

934-0180-0662

72

Wheel/Rim Assembly, 16.0 x 4.8 x 8.0

Part# 934-0180-0662 (Superseded to 634-0186)

Note: Not shown

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 5 to 10 business days

Your price: $248.93

921-0168

72

Dust Seal

Part# 921-0168

Note: Not shown

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 1 business day

Your price: $7.68

941-0987

72

Bearing, .75

Part# 941-0987 (Superseded to 941-04089)

Note: Not shown

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 1 business day

Your price: $11.02

936-0351

73

Flat Washer, .76h ID x 1.5" OD

Part# 936-0351

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 1 business day

Your price: $2.88

712-0359

74

Slotted Nut, 3/4-16

Part# 712-0359

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 1 business day

Your price: $7.52

714-0162

75

Cotter Pin, 5/32 x 1-1/4"

Part# 714-0162

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 1 business day

Your price: $3.18

734-0873

76

Hub Cap

Part# 734-0873

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 1 business day

Your price: $7.73

732-0194

77

Spring Pin

Part# 732-0194

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 1 business day

Your price: $3.07

711-04585

78

Clevis Pin

Part# 711-04585

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 1 business day

Your price: $4.50

913-04036

79

Valve Handle Link

Part# 913-04036

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 1 business day

Your price: $14.86

914-0111

80

Cotter Pin

Part# 914-0111

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 1 business day

Your price: $3.11

720-04088

81

Grip

Part# 720-04088

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 5 to 10 business days

Your price: $6.73

747-04539

82

Hydraulic Valve Control

Part# 747-04539 (Superseded to 747-04539A)

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 5 to 10 business days

Your price: $29.69
