LS 33 T (24AD595C100) - Cub Cadet Log Splitter Engine (1998) Carburetor & Starter Parts Diagram

Log Splitter Engine

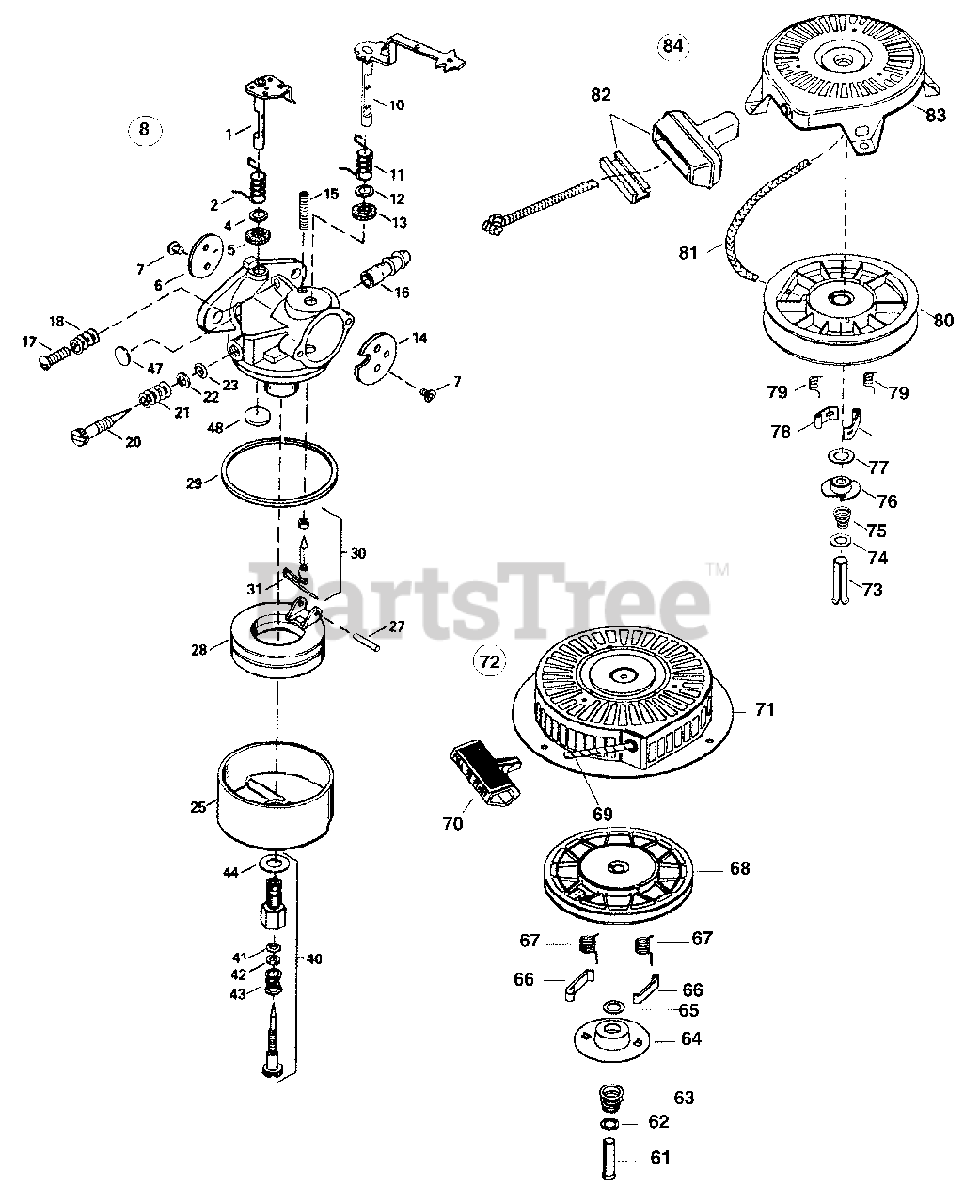

Carburetor & Starter Parts Diagram

  • Title

1

Cub Cadet TC-632243

Throttle Shaft & Lever Ass'y
(Superseded to TC-632787)

$7.49

$

Usually ships in 3-12 days

0

2

Cub Cadet TC-632244

Throttle Return Spring

$

$

Not available

4

Cub Cadet TC-631184

Dust Seal Washer

$1.99

$

In Stock, Qty 9

0

5

Cub Cadet TC-631183

Dust Seal (Throttle)

$1.99

$

In Stock, Qty 10

0

6

Cub Cadet TC-632517

Throttle Shutter

$1.99

$

In Stock, Qty 6

0

7

Cub Cadet TC-650506

Shutter Screw

$1.49

$

In Stock, only 2 left!

0

8

Cub Cadet TC-632689

Carburetor Ass'y

$

$

Not available

10

Cub Cadet TC-632249

Choke Shaft & Lever Ass'y

$9.49

$

Usually ships in 3-12 days

0

11

Cub Cadet TC-632043

Choke Return Spring

$2131.99

$

Usually ships in 3-12 days

0

12

Cub Cadet TC-631184

Dust Seal Washer

$1.99

$

In Stock, Qty 9

0

13

Cub Cadet TC-631183

Dust Seal Choke

$1.99

$

In Stock, Qty 10

0

14

Cub Cadet TC-632248

Choke Shutter

$2.49

$

In Stock, only 1 left!

0

15

Cub Cadet TC-630735

Choke Positioning Spring

$1.99

$

In Stock, Qty 10

0

16

Cub Cadet TC-632164

Fuel Fitting

$3.99

$

In Stock, only 1 left!

0

17

Cub Cadet TC-650417

Throttle Crack/Idle Speed Screw
(Superseded to TC-651025)

$1.99

$

In Stock, Qty 5

0

18

Cub Cadet TC-630766

Tension Spring

$1.99

$

In Stock, Qty 19

0

20

Cub Cadet TC-632281

Idle Mixture Screw

$3.99

$

In Stock, Qty 5

0

21

Cub Cadet TC-630766

Tension Spring

$1.99

$

In Stock, Qty 19

0

22

Cub Cadet TC-630739

Idle Mixture Screw Washer

$1.99

$

In Stock, Qty 18

0

23

Cub Cadet TC-630740

Idle Mixture Screw "O" Ring

$2.49

$

In Stock, Qty 20+

0

25

Cub Cadet TC-631867

Float Bowl

$3.49

$

In Stock, Qty 8

0

27

Cub Cadet TC-631024

Float Shaft

$1.99

$

In Stock, only 1 left!

0

28

Cub Cadet TC-632019

Float
(Superseded to TC-632019A)

$7.49

$

In Stock, Qty 14

0

29

Cub Cadet TC-631028

Float Bowl "O" Ring
(Superseded to TC-631028A)

$2.49

$

In Stock, Qty 20+

0

30

Cub Cadet TC-631021

Inlet Needle, Seat & Clip
(Superseded to TC-631021B)

$6.99

$

In Stock, Qty 20+

0

31

Cub Cadet TC-631022

Spring Clip

$1.99

$

In Stock, only 2 left!

0

40

Cub Cadet TC-632239

Main Adjustment Screw Ass'y

Note: (Incl 41-44)

$14.99

$

Usually ships in 3-12 days

0

41

Cub Cadet TC-630740

HIgh Speed Mixture Screw "O" Ring

$2.49

$

In Stock, Qty 20+

0

42

Cub Cadet TC-630739

HIgh Speed Mixture Screw Washer

$1.99

$

In Stock, Qty 18

0

43

Cub Cadet TC-630738

HIgh Speed Mixture Screw Tension Spring

$1.99

$

In Stock, Qty 5

0

44

Cub Cadet TC-27110

Bowl Nut Washer
(Superseded to TC-27110A)

$2.49

$

In Stock, Qty 20+

0

47

Cub Cadet TC-630748

Welch Plug, Idle Mixture Well

$1.99

$

In Stock, Qty 20+

0

48

Cub Cadet TC-631027

Welch Plug, Atmospheric Vent

$1.99

$

In Stock, Qty 17

0

Cub Cadet TC-632347

Carb. Repair Kit (not shown)

Note: Includes one of each: TC-27110, TC-630740, TC-630748, TC-631021, TC-631022, TC-631024, TC-631027, TC-631028, TC-632239, TC-632281

$

$

Not available

61

Cub Cadet TC-590599A

Spring Pin,

Note: (Incl. 52)

$5.49

$

In Stock, only 3 left!

0

62

Cub Cadet TC-590600

Washer

$1.99

$

In Stock, Qty 5

0

63

Cub Cadet TC-590697

Brake Spring

$3.99

$

In Stock, only 1 left!

0

64

Cub Cadet TC-590696

Retainer

$7.49

$

In Stock, only 1 left!

0

65

Cub Cadet TC-590601

Washer

$1.99

$

In Stock, only 4 left!

0

66

Cub Cadet TC-590698

Starter Dog

$6.99

$

In Stock, only 4 left!

0

67

Cub Cadet TC-590699

Dog Spring

$7.49

$

In Stock, only 2 left!

0

68

Cub Cadet TC-590700

Pulley & Rewind Spring Ass'y

$26.99

$

Usually ships in 3-12 days

0

69

Cub Cadet TC-590705

Starter Housing Ass'y

$

$

Not available

70

Cub Cadet TC-590535

Starter Rope (98")

$9.49

$

In Stock, only 4 left!

0

71

Cub Cadet TC-590701

Starter Handle

$6.49

$

In Stock, only 1 left!

0

72

Cub Cadet TC-590704

Rewind Starter Ass'y
(Superseded to TC-590788)

$65.99

$

In Stock, only 2 left!

0

73

Cub Cadet TC-590599A

Spring Pin,

Note: (Incl. 52)

$5.49

$

In Stock, only 3 left!

0

74

Cub Cadet TC-590600

Washer

$1.99

$

In Stock, Qty 5

0

75

Cub Cadet TC-590678

Brake Spring

$3.49

$

Usually ships in 3-12 days

0

76

Cub Cadet TC-590679

Retainer

$3.99

$

Usually ships in 3-12 days

0

77

Cub Cadet TC-590601

Washer

$1.99

$

In Stock, only 4 left!

0

78

Cub Cadet TC-590680

Starter Dog

$5.99

$

In Stock, Qty 6

0

79

Cub Cadet TC-590412

Dog Spring

$8.49

$

In Stock, only 1 left!

0

80

Cub Cadet TC-590681

Pulley & Rewind Spring Ass'y

$

$

Not available

81

Cub Cadet TC-590456

Starter Rope (114")
(Superseded to TC-590535)

$9.49

$

In Stock, only 4 left!

0

82

Cub Cadet TC-590387

Starter Handle

$3.99

$

In Stock, only 2 left!

0

83

Cub Cadet TC-590683

Starter Housing Ass'y

$37.99

$

In Stock, only 2 left!

0

84

Cub Cadet TC-590671

Recoil Starter Ass'y
(Superseded to TC-590788)

$65.99

$

In Stock, only 2 left!

0
