LS 33 T (24AD595C101) - Cub Cadet Log Splitter (1998) 33 Ton Log Splitter Parts Diagram

Log Splitter

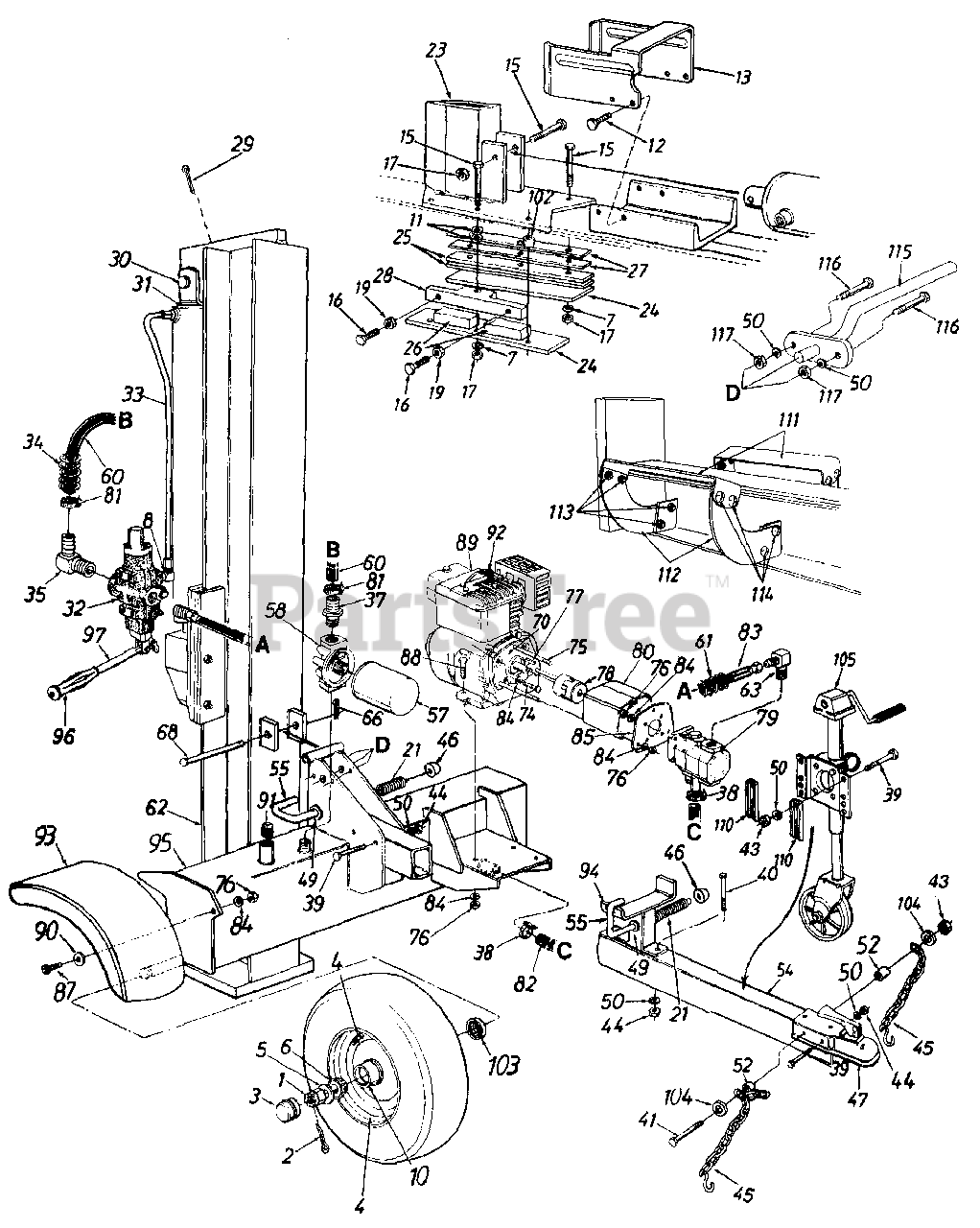

33 Ton Log Splitter Parts Diagram

  • Title

1

Cub Cadet 712-0359

Slotted Nut 3/4-16 Thd.

$10.99

$

In Stock, Qty 5

0

2

Cub Cadet 714-0162

Cotter Pin 5/32" Dia.

$4.99

$

In Stock, Qty 20+

0

3

Cub Cadet 734-0873

Hub Cap

$11.99

$

In Stock, only 2 left!

0

4

Cub Cadet 734-1016

Wheel Ass'y. Comp.
(Superseded to 634-0186)

Variations

Cub Cadet 734-1016-0911

Wheel Assembly, Complete - Carlisle Gray (0911)

$337.99

$

In Stock, only 1 left!

0

Cub Cadet 734-1016-0931

Wheel Assembly, Complete - Carlisle Beige (0931)

$337.99

$

Usually ships in 3-6 days

0

Cub Cadet 734-1016-0941

WHEEL ASSEMBLY - Carlisle Yellow (0941)

$

$

Not available

$337.99

$

In Stock, only 1 left!

0

Cub Cadet 734-0872

Tire Only

$157.99

$

Usually ships in 3-6 days

0

Cub Cadet 734-1017-0499

Rim Only
(Superseded to 634-0189)

$

$

Not available

Cub Cadet 734-0255

Air Valve Only
(Superseded to 934-0255)

$3.99

$

In Stock, Qty 20+

0

5

Cub Cadet 736-0351

Fl-Wash. .76" I.D. x 1.5" O.D.

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 741-3028

Bearing Cone
(Superseded to 941-04298)

$15.99

$

In Stock, Qty 20+

0

7

Cub Cadet 736-0921

L-Wash. 1/2" I.D.

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 737-0192

90° Solid Male Adapter

$38.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 741-3029

Bearing Cup
(Superseded to 941-04299)

$6.49

$

In Stock, Qty 20+

0

11

Cub Cadet 736-0192

Fl-Wash. .531" I.D. x .94" O.D.

$3.99

$

In Stock, only 2 left!

0

12

Cub Cadet 710-0514

Hex Cap Scr. 3/8-16 x 1" Lg.

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 781-0525-0498

Dislodger

$

$

Currently unavailable

15

Cub Cadet 710-1018

Hex Bolt 1/2-20 x 2.75" Lg. (Grade 8)

$10.99

$

In Stock, Qty 20+

0

16

Cub Cadet 710-1032

Hex Bolt 3/8-24 x 1.5" Lg.
(Superseded to 710-0459A)

$6.99

$

In Stock, Qty 10

0

17

Cub Cadet 712-0239

Hex L-Nut 1/2-20 Thd.

$5.49

$

In Stock, Qty 20+

0

19

Cub Cadet 712-3001

Hex Jam Nut 3/8-24 Thd. (Grade 5)
(Superseded to 912-3001)

$6.49

$

In Stock, Qty 20+

0

21

Cub Cadet 732-0583

Comp. Spring 4" Lg.

$11.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 781-0323B-0498

Wedge Ass'y.
(Superseded to 753-04120)

$318.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 781-0537

Back Plate

Variations

Cub Cadet 781-0537-0483

Pusher Back Plate, Powder Black - CHARCOAL GRAY (0483)

$41.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-0537-0637

Pusher Back Plate, Powder Black - POWDER BLACK (0637)

$41.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-0537-0638

Pusher Back Plate - MTD/TROY-BILT RED (0638)

$41.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-0537-0498

USE 781-0537-0716 PLATE-PUSHE - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 781-0537-0716

PLATE-PUSHER BACK - CUB YELLOW-99 (0716)

$

$

Not available

Cub Cadet 781-0537-0662

PLATE-PUSHER BACK - OYSTER GRAY (0662)

$

$

Not available

Cub Cadet 781-0537-0674

PLATE-PUSHER BACK - YARDMAN YELLOW (0674)

$

$

Not available

$33.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 781-0350A

Fixed Side Gib

Variations

Cub Cadet 781-0350A-0483

Fixed Side Gib - CHARCOAL GRAY (0483)

$28.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-0350A-0498

Fixed Side Gib - OLD CUB YELLOW (0498)

$28.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-0350A-0637

Fixed Side Gib - POWDER BLACK (0637)

$28.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-0350A-0638

Fixed Side Gib - MTD/TROY-BILT RED (0638)

$28.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-0350A-0662

Fixed Side Gib - OYSTER GRAY (0662)

$28.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-0350A-0665

Fixed Side Gib - YARDMAN GREEN (0665)

$28.99

$

Usually ships in 3-6 days

0

$26.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 781-0351

Adjustable Gib

$17.99

$

In Stock, only 2 left!

0

27

Cub Cadet 781-0352A

Adjustable Gib Shim
(Superseded to 781-0352A-0637)

Variations

Cub Cadet 781-0352A-0483

Adjustable Gib Shim - CHARCOAL GRAY (0483)

$

$

Not available

Cub Cadet 781-0352A-0498

Adjustable Gib Shim - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 781-0352A-0637

Adjustable Gib Shim - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 781-0352A-0638

Adjustable Gib Shim - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 781-0352A-0662

Adjustable Gib Shim - OYSTER GRAY (0662)

$

$

Not available

Cub Cadet 781-0352A-0692

Adjustable Gib Shim - AGWAY BLUE (0692)

$

$

Not available

Cub Cadet 781-0352A-0716

Adjustable Gib Shim - CUB YELLOW-99 (0716)

$

$

Not available

$

$

28

Cub Cadet 781-0356

Floating Gib Plate

Variations

Cub Cadet 781-0356-0483

Floating Gib Plate - CHARCOAL GRAY (0483)

$122.99

$

In Stock, only 1 left!

0

Cub Cadet 781-0356-0498

Floating Gib Plate - OLD CUB YELLOW (0498)

$122.99

$

In Stock, only 1 left!

0

Cub Cadet 781-0356-0637

Floating Gib Plate - POWDER BLACK (0637)

$122.99

$

In Stock, only 1 left!

0

Cub Cadet 781-0356-0638

Floating Gib Plate - MTD/TROY-BILT RED (0638)

$122.99

$

In Stock, only 1 left!

0

Cub Cadet 781-0356-0716

Floating Gib Plate - CUB YELLOW-99 (0716)

$122.99

$

In Stock, only 1 left!

0

$114.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 714-0211

Cotter Pin

$3.99

$

In Stock, Qty 6

0

30

Cub Cadet 711-1135

Cylinder Mounting Pin

$57.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 718-0313-0498

Hydraulic Cylinder
(Superseded to 918-0313A)

$

$

Not available

32

Cub Cadet 718-0481

Control Valve
(Superseded to 918-0481A)

Variations

Cub Cadet 718-0481-0498

Logsplitter Valve - OLD CUB YELLOW (0498)

$365.99

$

In Stock, only 4 left!

0

Cub Cadet 718-0481-0637

Logsplitter Valve - POWDER BLACK (0637)

$365.99

$

In Stock, only 4 left!

0

$365.99

$

In Stock, only 4 left!

0

33

Cub Cadet 727-0471

Metal Pressure Tube

$

$

Not available

34

Cub Cadet 781-0526

Hose Guard
(Superseded to 781-0526A)

$49.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 737-0153

Return Elbow

$53.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 737-0235

3/4" Hose Barb.

$23.99

$

In Stock, only 2 left!

0

38

Cub Cadet 726-0174

Hose Clamp 1.5" O.D.

$8.99

$

Usually ships in 3-6 days

0

39

Cub Cadet 710-0521

Hex Bolt 3/8-16 x 3" Lg. (Grade 8)

$4.99

$

In Stock, Qty 15

0

40

Cub Cadet 710-0411

Hex Bolt 3/8-16 x 4.75" Lg.

$7.99

$

In Stock, Qty 20+

0

41

Cub Cadet 710-0944

Hex Bolt 3/8-16 x 4.25" Lg.

$10.99

$

In Stock, Qty 20+

0

43

Cub Cadet 712-0798

Hex Lock Nut

$3.99

$

Usually ships in 3-6 days

0

44

Cub Cadet 712-0375

Lock Nut 3/8-16 (585)

$4.49

$

In Stock, Qty 12

0

45

Cub Cadet 713-0433

Chain - Tow Hitch
(Superseded to 713-0433A)

$41.99

$

Usually ships in 3-6 days

0

46

Cub Cadet 726-0214

Push Cap

$9.99

$

In Stock, Qty 20+

0

47

Cub Cadet 727-0311

Hitch Coupler

$

$

Not available

49

Cub Cadet 736-0116

Fl-Wash. .635" I.D. x .93" O.D.
(Superseded to 936-0116)

$6.49

$

In Stock, only 1 left!

0

50

Cub Cadet 736-0169

L-Wash. 3/8" I.D.

$3.49

$

In Stock, Qty 20+

0

52

Cub Cadet 750-0497

Spacer .445" Lg.

$9.99

$

Usually ships in 3-6 days

0

54

Cub Cadet 781-0680-0498

Tongue Tube
(Superseded to 781-0680B-0637)

$220.99

$

Usually ships in 3-6 days

0

55

Cub Cadet 781-0690

Locking Rod

$33.99

$

In Stock, only 1 left!

0

57

Cub Cadet 723-0405

Filter Element
(Superseded to 723P0405)

$39.99

$

In Stock, only 4 left!

0

58

Cub Cadet 723-0406

Filter Head
(Superseded to 681-0179)

$

$

Not available

60

Cub Cadet 727-0443

Return Hose 3/4" I.D. x 44" Lg.

$110.99

$

In Stock, only 1 left!

0

61

Cub Cadet 781-0538

Hose Guard
(Superseded to 781-0538A)

$33.99

$

Usually ships in 3-6 days

0

62

Cub Cadet 681-0129-0637

Vertical Beam Weldment
(Superseded to 981-04080)

$

$

Not available

63

Cub Cadet 737-0264

90 degree Adapter (Male)

$

$

Not available

66

Cub Cadet 714-0470

Cotter Pin 1/8" Dia.

$3.99

$

In Stock, Qty 20+

0

68

Cub Cadet 738-0805

Hinge Pin 1/2 x 4.8" Lg.

$

$

Not available

70

Cub Cadet 781-0098

Front Coupling Support Brkt.
(Superseded to 781-0098A-0637)

Variations

Cub Cadet 781-0098-0637

Bracket, Black - POWDER BLACK (0637)

$40.99

$

Usually ships in 3-6 days

0

$40.99

$

Usually ships in 3-6 days

0

74

Cub Cadet 710-0237

Hex Bolt 5/16-24 x .62" Lg.

$4.49

$

Usually ships in 3-6 days

0

75

Cub Cadet 710-1253

Hex Bolt 5/16-24 x 5.25" Lg.

$

$

Not available

76

Cub Cadet 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)

$6.49

$

In Stock, Qty 13

0

77

Cub Cadet 714-0114

Sq.-Key 1/4" x 2" Lg.
(Superseded to 914-0114)

$3.99

$

In Stock, only 1 left!

0

78

Cub Cadet 717-0462

Flexible Coupling

$

$

Not available

79

Cub Cadet 718-0477

Gear Pump
(Superseded to 753-05195)

$1621.99

$

Usually ships in 3-6 days

0

80

Cub Cadet 719-0315

Coupling Shield

$126.99

$

Usually ships in 3-6 days

0

81

Cub Cadet 726-0132

Hose Clamp 5/8"

$14.99

$

Usually ships in 3-6 days

0

82

Cub Cadet 727-0451

Suction Hose 1" I.D.

$100.99

$

Usually ships in 3-6 days

0

83

Cub Cadet 727-0502

High Pressure Hydraulic Hose

$194.99

$

Usually ships in 3-6 days

0

84

Cub Cadet 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

85

Cub Cadet 781-0097

Rear Coupling Support Brkt.
(Superseded to 781-0097-0637)

Variations

Cub Cadet 781-0097-0637

Support Bracket, RR - POWDER BLACK (0637)

$64.99

$

In Stock, only 3 left!

0

$64.99

$

In Stock, only 3 left!

0

87

Cub Cadet 710-0157

Hex Bolt 5/16-24 x .75" Lg.

$3.99

$

In Stock, Qty 16

0

88

Cub Cadet 710-0409

Hex Bolt 5/16-24 x 1.75" Lg.

$4.49

$

Usually ships in 3-6 days

0

89

Engine

$

$

Not available

90

Cub Cadet 736-0159

Fl-Wash. .344" I.D. x .875" O.D.

$3.99

$

In Stock, Qty 20+

0

91

Cub Cadet 737-0236

L-Vent Pipe Plug
(Superseded to 737-0348A)

$21.99

$

In Stock, only 4 left!

0

92

Cub Cadet 735-0639

Spark Plug Boot

Note: (Optional)

$

$

Not available

93

Cub Cadet 681-0138-0498

Fender

$

$

Not available

94

Cub Cadet 781-0398

Support Ass'y.

Variations

Cub Cadet 781-0398-0638

SUPPORT ASSY-BEAM - MTD/TROY-BILT RED (0638)

$88.99

$

In Stock, only 1 left!

0

Cub Cadet 781-0398-0637

SUPPORT ASSY-BEAM - POWDER BLACK (0637)

$110.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-0398-0483

SUPPORT ASSY-BEAM - CHARCOAL GRAY (0483)

$

$

Not available

Cub Cadet 781-0398-0498

BEAM SUPPORT ASSEMBLY (CUB YELLOW) - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 781-0398-0648

SUPPORT ASSY-BEAM - TECH GRAY (0648)

$

$

Not available

Cub Cadet 781-0398-0665

SUPPORT ASSY-BEAM - YARDMAN GREEN (0665)

$

$

Not available

Cub Cadet 781-0398-0716

SUPPORT ASM-BEAM - CUB YELLOW-99 (0716)

$

$

Not available

$96.99

$

Usually ships in 3-6 days

0

95

Cub Cadet 681-0103A-0637

Frame Weldment

$

$

Not available

96

Cub Cadet 720-0235

Grip
(Superseded to 720-04088)

$9.99

$

In Stock, only 1 left!

0

97

Cub Cadet 747-0583

Control Handle
(Superseded to 947-0583)

$120.99

$

In Stock, only 1 left!

0

102

Cub Cadet 750-0750

Spacer 1/2" I.D. x .86" Lg.
(Superseded to 950-0750)

$

$

Not available

103

Cub Cadet 721-0168

Bearing Seal Only
(Superseded to 921-0168)

$9.49

$

In Stock, Qty 18

0

104

Cub Cadet 736-0262

Fl-Wash. 3/8" I.D. x .87" O.D.

$3.99

$

In Stock, Qty 20+

0

105

Cub Cadet 681-0006

Jack Stand
(Superseded to 981-04029)

$275.99

$

Usually ships in 3-6 days

0

110

Cub Cadet 781-0558

Jack Stand Brkt.

Variations

Cub Cadet 781-0558-0498

BRACKET - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 781-0558-0637

BRACKET - POWDER BLACK (0637)

$

$

Not available

$

$

111

Cub Cadet 781-0682-0498

Log Cradle

$

$

Currently unavailable

112

Cub Cadet 781-0686-0498

Cradle Support Brkt.
(Superseded to 753-05423)

$

$

Not available

113

Cub Cadet 712-0431

Flanged Lock Nut 3/8-16 Thd.
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

114

Cub Cadet 710-3097

Carriage Bolt 3/8-16 x 1" Lg.

$6.49

$

In Stock, Qty 5

0

115

Cub Cadet 681-0089

Engine Guard

Variations

Cub Cadet 681-0089-0483

GUARD ENGINE - CHARCOAL GRAY (0483)

$

$

Not available

Cub Cadet 681-0089-0637

GUARD ENGINE (POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 681-0089-0638

GUARD ENGINE (MTD RED) - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 681-0089-0648

GUARD ENGINE (TECH GRAY) - TECH GRAY (0648)

$

$

Not available

Cub Cadet 681-0089-0665

GUARD ENGINE (YARD-MAN GREEN) - YARDMAN GREEN (0665)

$

$

Not available

$

$

116

Cub Cadet 710-0514

Hex Bolt 3/8-16 x 1" Lg.

$3.99

$

In Stock, Qty 20+

0

117

Cub Cadet 712-3017

Hex Nut 3/8-16 Thd.

$3.99

$

In Stock, Qty 20+

0

Cub Cadet 290-004-000

Taillight Kit

Note: (Not Shown) See Separate Manual

$

$

Not available
