LS 33 T (24AD595C101) - Cub Cadet Log Splitter (1999) 33-Ton Log Splitter Parts Diagram

Log Splitter

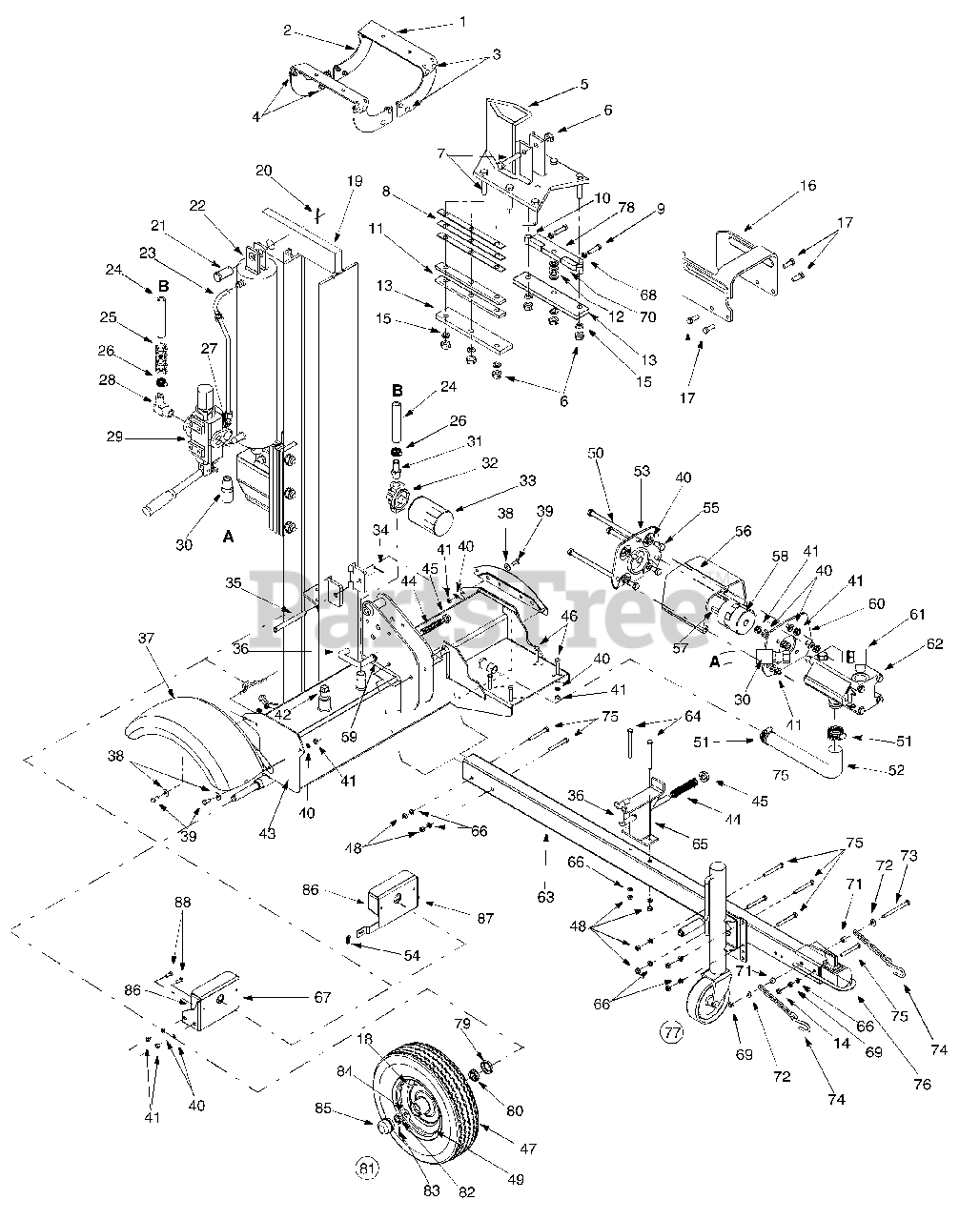

33-Ton Log Splitter Parts Diagram

  • Title

1

Cub Cadet 781-0682

Log Cradle
(Superseded to 753-05424)

Variations

Cub Cadet 781-0682-0637

Log Splitter Tray Kit - POWDER BLACK (0637)

$49.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-0682-0665

Log Splitter Tray Kit - YARDMAN GREEN (0665)

$49.99

$

Usually ships in 3-6 days

0

$49.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 781-0686

Log Cradle Bracket
(Superseded to 753-05423)

Variations

Cub Cadet 781-0686-0498

Log Splitter Tray Bracket - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 781-0686-0637

Log Splitter Tray Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

3

Cub Cadet 710-3097

Carriage Bolt, 3/8-16 x 1.0

$6.49

$

In Stock, Qty 5

0

4

Cub Cadet 712-0431

Flanged Lock Nut, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

5

Cub Cadet 781-0323B

Wedge Assembly
(Superseded to 753-04120)

Variations

Cub Cadet 781-0323B-0483

Wedge Assembly Replacement Kit - CHARCOAL GRAY (0483)

$318.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-0323B-0498

Wedge Assembly Replacement Kit - OLD CUB YELLOW (0498)

$318.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-0323B-0629

Wedge Assembly Replacement Kit - SILVER FLAKE (0629)

$318.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-0323B-0637

Wedge Assembly Replacement Kit - POWDER BLACK (0637)

$318.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-0323B-0638

Wedge Assembly Replacement Kit - MTD/TROY-BILT RED (0638)

$318.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-0323B-0648

Wedge Assembly Replacement Kit - TECH GRAY (0648)

$318.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-0323B-0662

Wedge Assembly Replacement Kit - OYSTER GRAY (0662)

$318.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-0323B-0716

Wedge Assembly Replacement Kit - CUB YELLOW-99 (0716)

$318.99

$

Usually ships in 3-6 days

0

$318.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 712-0239

Lock Nut

$5.49

$

In Stock, Qty 20+

0

7

Cub Cadet 710-1018

Hex Head Screw, 1/2-20 x 2.75

$10.99

$

In Stock, Qty 20+

0

8

Cub Cadet 781-0352A

Adjustable Gib Shim
(Superseded to 781-0352A-0637)

Variations

Cub Cadet 781-0352A-0483

Adjustable Gib Shim - CHARCOAL GRAY (0483)

$

$

Not available

Cub Cadet 781-0352A-0498

Adjustable Gib Shim - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 781-0352A-0637

Adjustable Gib Shim - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 781-0352A-0638

Adjustable Gib Shim - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 781-0352A-0662

Adjustable Gib Shim - OYSTER GRAY (0662)

$

$

Not available

Cub Cadet 781-0352A-0692

Adjustable Gib Shim - AGWAY BLUE (0692)

$

$

Not available

Cub Cadet 781-0352A-0716

Adjustable Gib Shim - CUB YELLOW-99 (0716)

$

$

Not available

$

$

9

Cub Cadet 710-0459A

Hex Cap Screw, 3/8-24 x 1.5

$6.99

$

In Stock, Qty 10

0

10

Cub Cadet 750-0750

Spacer
(Superseded to 950-0750)

$

$

Not available

11

Cub Cadet 781-0350A

Fixed Side Gib

Variations

Cub Cadet 781-0350A-0483

Fixed Side Gib - CHARCOAL GRAY (0483)

$28.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-0350A-0498

Fixed Side Gib - OLD CUB YELLOW (0498)

$28.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-0350A-0637

Fixed Side Gib - POWDER BLACK (0637)

$28.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-0350A-0638

Fixed Side Gib - MTD/TROY-BILT RED (0638)

$28.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-0350A-0662

Fixed Side Gib - OYSTER GRAY (0662)

$28.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-0350A-0665

Fixed Side Gib - YARDMAN GREEN (0665)

$28.99

$

Usually ships in 3-6 days

0

$26.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 736-0192

Flat Washer, .531 ID x .94 OD

$3.99

$

In Stock, only 2 left!

0

13

Cub Cadet 781-0537

Back Plate

Variations

Cub Cadet 781-0537-0483

Pusher Back Plate, Powder Black - CHARCOAL GRAY (0483)

$41.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-0537-0637

Pusher Back Plate, Powder Black - POWDER BLACK (0637)

$41.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-0537-0638

Pusher Back Plate - MTD/TROY-BILT RED (0638)

$41.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-0537-0498

USE 781-0537-0716 PLATE-PUSHE - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 781-0537-0716

PLATE-PUSHER BACK - CUB YELLOW-99 (0716)

$

$

Not available

Cub Cadet 781-0537-0662

PLATE-PUSHER BACK - OYSTER GRAY (0662)

$

$

Not available

Cub Cadet 781-0537-0674

PLATE-PUSHER BACK - YARDMAN YELLOW (0674)

$

$

Not available

$33.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 712-3008

Hex Jam Nut, 3/8-16

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 736-0921

Lock Washer, 1/2

$4.49

$

In Stock, Qty 20+

0

16

Cub Cadet 781-0525

Log Dislodger Bracket

Variations

Cub Cadet 781-0525-0483

Dislodger - CHARCOAL GRAY (0483)

$131.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-0525-0638

DISLODGER - MTD/TROY-BILT RED (0638)

$131.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-0525-0606

DISLODGER - MAJESTIC ORANGE (0606)

$114.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-0525-0637

DISLODGER - POWDER BLACK (0637)

$131.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-0525-0662

DISLODGER - OYSTER GRAY (0662)

$131.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-0525-4021

DISLODGER - CUB YELLOW 2 (4021)

$140.99

$

Usually ships in 3-6 days

0

$114.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 710-0514

Hex Cap Screw, 3/8-16 x 1

$3.99

$

In Stock, Qty 20+

0

18

Cub Cadet 734-0255

Valve
(Superseded to 934-0255)

$3.99

$

In Stock, Qty 20+

0

19

Cub Cadet 681-0129

Beam Assembly
(Superseded to 981-04080)

Variations

Cub Cadet 681-0129-0637

USE 981-04080 BEAM ASM-LOGSPL - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 681-0129-0648

USE 981-04080 BEAM ASM-LOGSPL - TECH GRAY (0648)

$

$

Not available

Cub Cadet 681-0129-0665

USE 981-04080 BEAM ASM-LOGSPL - YARDMAN GREEN (0665)

$

$

Not available

$

$

20

Cub Cadet 714-0211

Cotter Pin

$3.99

$

In Stock, Qty 6

0

21

Cub Cadet 711-1135

Clevis Pin

$57.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 718-0313

Hydraulic Cylinder
(Superseded to 918-0313A)

Note: replace with 718-0313A

Variations

Cub Cadet 718-0313-0498

USE 918-0313A CYLINDER-LOGSPL - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 718-0313-0637

USE 918-0313A CYLINDER-LOGSPL - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 718-0313-0638

USE 918-0313A CYLINDER-LOGSPL - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 718-0313-0662

USE 918-0313A CYLINDER-LOGSPL - OYSTER GRAY (0662)

$

$

Not available

Cub Cadet 718-0313-0674

USE 918-0313A CYLINDER-LOGSPL - YARDMAN YELLOW (0674)

$

$

Not available

$

$

22

Cub Cadet 753-0564

Kit Seal 5.0" for Fisher Hydraulics cylinder 718-0313

Note: Fisher cylinders use a snap ring retainer system to secure the piston assembly into the cylinder.

$241.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 753-0691

Kit Seal 5.0" for Best Metals cylinder 718-0313

Note: BEST cylinders will have "BM" or "BEST" cast into the end cap.

$

$

Not available

22

Cub Cadet 718-0313A

Hydraulic Cylinder
(Superseded to 918-0313A)

Note: replaces 718-0313

$

$

Not available

22

Cub Cadet 953-05609

Kit Seal 5.0" for XINGHUI cylinder 718-0313A

Note: See Service Kit 753-05609

$80.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 953-05610

Kit Seal 5.0" for ENERGY cylinder 718-0313A

Note: See Service Kit 753-05610

$234.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 727-0471

Hydraulic Tube

$

$

Not available

24

Cub Cadet 727-0443

Return Hose, 3/4 x 44 Lg

$110.99

$

In Stock, only 1 left!

0

25

Cub Cadet 781-0526

Hose Guard
(Superseded to 781-0526A)

$49.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 726-0132

Hose Clamp

$14.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 737-0192

Tube Adapter

$38.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 737-0153

Return Elbow

$53.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 718-0481

Control Valve
(Superseded to 918-0481A)

Variations

Cub Cadet 718-0481-0498

Logsplitter Valve - OLD CUB YELLOW (0498)

$365.99

$

In Stock, only 4 left!

0

Cub Cadet 718-0481-0637

Logsplitter Valve - POWDER BLACK (0637)

$365.99

$

In Stock, only 4 left!

0

$365.99

$

In Stock, only 4 left!

0

30

Cub Cadet 727-0502

High Pressure Hydraulic Hose

$194.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 737-0235

Adapter

$23.99

$

In Stock, only 2 left!

0

32

Cub Cadet 737-0306

Filter Head
(Superseded to 681-0179)

$

$

Not available

33

Cub Cadet 723-0405

Oil Filter
(Superseded to 723P0405)

$39.99

$

In Stock, Qty 5

0

34

Cub Cadet 714-0470

Cotter Pin

$3.99

$

In Stock, Qty 20+

0

35

Cub Cadet 738-0805

Hinge Pin

$

$

Not available

36

Cub Cadet 781-0690

Locking Rod

$33.99

$

In Stock, only 1 left!

0

37

Cub Cadet 681-0138

Fender Assembly
(Superseded to 781-04000)

Variations

Cub Cadet 681-0138-0483

FENDER ASSEMBLY - CHARCOAL GRAY (0483)

$

$

Not available

Cub Cadet 681-0138-0498

FENDER ASSEMBLY - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 681-0138-0637

FENDER ASSEMBLY - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 681-0138-0638

USE 781-04000-0638 FENDER LOG - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 681-0138-0665

FENDER ASSEMBLY - YARDMAN GREEN (0665)

$

$

Not available

Cub Cadet 681-0138-0689

FENDER ASSEMBLY - POLO GREEN (0689)

$

$

Not available

Cub Cadet 681-0138-0716

FENDER ASSEMBLY - CUB YELLOW-99 (0716)

$

$

Not available

$

$

38

Cub Cadet 736-0159

Washer, 5/16

$3.99

$

In Stock, Qty 20+

0

39

Cub Cadet 710-0157

Hex Cap Screw, 5/16-24 x .75

$3.99

$

In Stock, Qty 16

0

40

Cub Cadet 736-0119

Lock Washer, 5/16
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

41

Cub Cadet 712-0123

Hex Nut, 5/16-24
(Superseded to 912-3057)

$6.49

$

In Stock, Qty 13

0

42

Cub Cadet 737-0236

Pipe Plug
(Superseded to 737-0348A)

$21.99

$

In Stock, only 4 left!

0

43

Cub Cadet 681-0103A

Frame Assembly/Tank (7 gal.)

Variations

Cub Cadet 681-0103A-0637

FRAME WELDMENT - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 681-0103A-0638

FRAME WELDMENT - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 681-0103A-0665

FRAME WELDMENT - YARDMAN GREEN (0665)

$

$

Not available

$

$

44

Cub Cadet 732-0583

Compression Spring, 4"

$11.99

$

Usually ships in 3-6 days

0

45

Cub Cadet 726-0214

Push Cap

$9.99

$

In Stock, Qty 20+

0

46

Cub Cadet 710-0409

Hex Cap Screw, 5/16-24 x 1.75

$4.49

$

Usually ships in 3-6 days

0

47

Cub Cadet 734-0872

Tire, 16 x 4.8

$157.99

$

Usually ships in 3-6 days

0

48

Cub Cadet 712-0798

Hex Nut, 3/8-16

$3.99

$

Usually ships in 3-6 days

0

49

Cub Cadet 634-0189

Rim Assembly

$

$

Not available

50

Cub Cadet 710-1253

Hex Cap Screw, 5/16-24 x 5.25

$

$

Not available

51

Cub Cadet 726-0174

Hose Clamp

$8.99

$

Usually ships in 3-6 days

0

52

Cub Cadet 727-0451

Suction Hose

$100.99

$

Usually ships in 3-6 days

0

53

Cub Cadet 781-0098

Front Coupling Support Bracket
(Superseded to 781-0098A-0637)

Variations

Cub Cadet 781-0098-0637

Bracket, Black - POWDER BLACK (0637)

$40.99

$

Usually ships in 3-6 days

0

$40.99

$

Usually ships in 3-6 days

0

54

Cub Cadet 712-0292

Speed Clip

$9.99

$

Usually ships in 3-6 days

0

55

Cub Cadet 710-0237

Hex Cap Screw, 5/16-24

$4.49

$

Usually ships in 3-6 days

0

56

Cub Cadet 719-0315

Coupling Shield

$126.99

$

Usually ships in 3-6 days

0

57

Cub Cadet 714-0114

Key, 1/4 x 2
(Superseded to 914-0114)

$3.99

$

In Stock, only 1 left!

0

58

Cub Cadet 717-0462

Flex Coupling

$

$

Not available

59

Cub Cadet 736-0116

Flat Washer, .63 x .93 x .060
(Superseded to 936-0116)

$6.49

$

In Stock, only 1 left!

0

60

Cub Cadet 781-0097

Rear Coupling Support Bracket
(Superseded to 781-0097-0637)

Variations

Cub Cadet 781-0097-0637

Support Bracket, RR - POWDER BLACK (0637)

$64.99

$

In Stock, only 3 left!

0

$64.99

$

In Stock, only 3 left!

0

61

Cub Cadet 737-0264

Adapter

$

$

Not available

62

Cub Cadet 718-0477

Gear Pump (16 GPM)
(Superseded to 753-05195)

$1621.99

$

Usually ships in 3-6 days

0

63

Cub Cadet 781-0680A

Tongue Tube
(Superseded to 781-0680B)

Variations

Cub Cadet 781-0680A-0483

USE 781-0680B-0483 TUBE-TONGU - CHARCOAL GRAY (0483)

$220.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-0680A-0498

USE 781-0680B-0637 TUBE-TONGU - OLD CUB YELLOW (0498)

$220.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-0680A-0637

USE 781-0680B-0637 TUBE-TONGU - POWDER BLACK (0637)

$220.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-0680A-0638

USE 781-0680B-0637 TUBE-TONGU - MTD/TROY-BILT RED (0638)

$220.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-0680A-0648

USE 781-0680B-0637 TUBE-TONGU - TECH GRAY (0648)

$220.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-0680A-0650

USE 781-0680B-0637 TUBE-TONGU - RED METALLIC (0650)

$220.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-0680A-0662

USE 781-0680B-0662 TUBE-TONGU - OYSTER GRAY (0662)

$220.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-0680A-0665

USE 781-0680B-0637 TUBE-TONGU - YARDMAN GREEN (0665)

$220.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-0680A-0674

USE 781-0680B-0674 TUBE-TONGU - YARDMAN YELLOW (0674)

$220.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-0680A-0689

USE 781-0680B-0689 TUBE-TONGU - POLO GREEN (0689)

$220.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-0680A-0716

USE 781-0680B-0716 TUBE:TNG: - CUB YELLOW-99 (0716)

$220.99

$

Usually ships in 3-6 days

0

$178.99

$

Usually ships in 3-6 days

0

64

Cub Cadet 710-0411

Hex Screw, 3/8-16 x 4.0

$7.99

$

In Stock, Qty 20+

0

65

Cub Cadet 681-0110

Support Assembly
(Superseded to 681-0110-0637)

Variations

Cub Cadet 681-0110-0637

SUPPORT ASM. BEAM - POWDER BLACK (0637)

$

$

Not available

$

$

66

Cub Cadet 736-0169

Lock Washer, 3/8

$3.49

$

In Stock, Qty 20+

0

67

Cub Cadet 781-0624

Light Bracket - RH
(Superseded to 781-0624-0637)

Variations

Cub Cadet 781-0624-0637

BRACKET-TAILLIGHT - POWDER BLACK (0637)

$

$

Not available

$

$

68

Cub Cadet 712-3001

Hex Jam Nut, 3/8-24
(Superseded to 912-3001)

$6.49

$

In Stock, Qty 20+

0

69

Cub Cadet 712-0375

Hex Lock Nut, 3/8-16

$4.49

$

In Stock, Qty 12

0

70

Cub Cadet 781-0351

Adjustable Gib, 5/8 x 5/8 x 2

$17.99

$

In Stock, only 2 left!

0

71

Cub Cadet 750-0497

Spacer

$9.99

$

Usually ships in 3-6 days

0

72

Cub Cadet 736-0262

Flat Washer, 3/8" ID x .87" OD

$3.99

$

In Stock, Qty 20+

0

73

Cub Cadet 710-0944

Hex Bolt, 3/8-16 x 4.25

$10.99

$

In Stock, Qty 18

0

74

Cub Cadet 713-0433

Chain
(Superseded to 713-0433A)

$41.99

$

Usually ships in 3-6 days

0

75

Cub Cadet 710-0521

Hex Bolt, 3/8-16 x 3

$4.99

$

In Stock, Qty 15

0

76

Cub Cadet 727-0311

Hitch Coupler

$

$

Not available

77

Cub Cadet 681-0006

Adjustable Jack Stand Assembly
(Superseded to 981-04029)

$275.99

$

Usually ships in 3-6 days

0

78

Cub Cadet 781-0356

Floating Gib Plate

Variations

Cub Cadet 781-0356-0483

Floating Gib Plate - CHARCOAL GRAY (0483)

$122.99

$

In Stock, only 1 left!

0

Cub Cadet 781-0356-0498

Floating Gib Plate - OLD CUB YELLOW (0498)

$122.99

$

In Stock, only 1 left!

0

Cub Cadet 781-0356-0637

Floating Gib Plate - POWDER BLACK (0637)

$122.99

$

In Stock, only 1 left!

0

Cub Cadet 781-0356-0638

Floating Gib Plate - MTD/TROY-BILT RED (0638)

$122.99

$

In Stock, only 1 left!

0

Cub Cadet 781-0356-0716

Floating Gib Plate - CUB YELLOW-99 (0716)

$122.99

$

In Stock, only 1 left!

0

$114.99

$

Usually ships in 3-6 days

0

79

Cub Cadet 721-0168

Bearing Seal
(Superseded to 921-0168)

$9.49

$

In Stock, Qty 18

0

80

Cub Cadet 741-0987

Tapered Bearing
(Superseded to 941-04298)

$15.99

$

In Stock, Qty 20+

0

81

Cub Cadet 634-0187

Wheel Assembly

$337.99

$

Usually ships in 3-6 days

0

82

Cub Cadet 712-0359

Slotted Nut, 3/4-16

$10.99

$

In Stock, Qty 5

0

83

Cub Cadet 714-0162

Cotter Pin

$4.99

$

In Stock, Qty 20+

0

84

Cub Cadet 736-0351

Flat Washer, .760 ID x .500 OD

$3.99

$

In Stock, Qty 20+

0

85

Cub Cadet 734-0873

Hub Cap

$11.99

$

In Stock, only 2 left!

0

86

Cub Cadet 625-0009

Tail Light Assembly

$

$

Not available

87

Cub Cadet 681-0074

Light Bracket Assembly - LH
(Superseded to 681-0074-0637)

Variations

Cub Cadet 681-0074-0637

BRACKET-TAILLIGHT - POWDER BLACK (0637)

$

$

Not available

$

$

88

Cub Cadet 710-0157

Hex Cap Screw, 5/16-24 x .75

$3.99

$

In Stock, Qty 16

0
