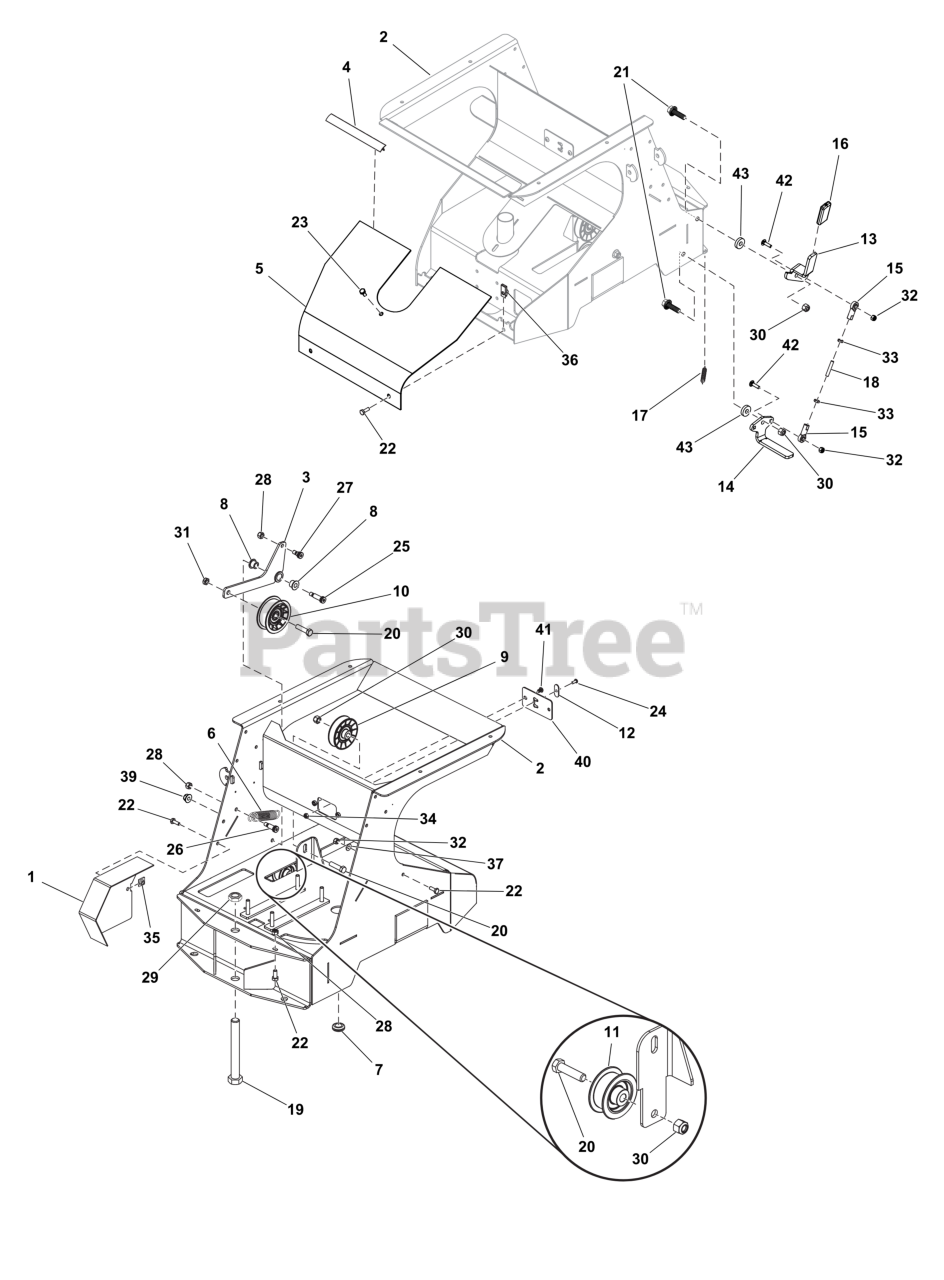

LSG 2000 V - Lesco Stand-On Spreader Main Frame Group S/N: 30000004146 and Above Parts Diagram

Stand-On Spreader

Main Frame Group S/N: 30000004146 and Above Parts Diagram

  • Title

1

5421498

WELD, PULLEY GUARD, ROVER

$

$

Not available

1

5421498A

WELD, PULLEY GUARD 2.0 ROVER - BLACK

$

$

Not available

2

FRAME

$

$

Not available

2

FRAME

$

$

Not available

3

5106139

WELD, ARM IDLER ROVER

$

$

Not available

3

5106139

WELD, ARM IDLER ROVER

$

$

Not available

4

5417982

SEAL TRIM, FRONT COWL 7" LONG

$

$

Not available

4

5417982

SEAL TRIM, FRONT COWL 7" LONG

$

$

Not available

5

5418386

FRONT COWL, ROVER (SANDED)

$

$

Not available

5

5418386

FRONT COWL, ROVER (SANDED)

$

$

Not available

6

5105946

SPRING, EXTENSION .840" OD X 4.00" LONG SS

$

$

Not available

6

5105946

SPRING, EXTENSION .840" OD X 4.00" LONG SS

$

$

Not available

7

5107562

GROMMET 1.00" I.D. FIT 1.38"HOLE

$

$

Not available

7

5107562

GROMMET 1.00" I.D. FIT 1.38"HOLE

$

$

Not available

8

5108816

BSHG-FL, .500" X .625" X .500", .875"x .062" IR

$

$

Not available

8

5108816

BSHG-FL, .500" X .625" X .500", .875"x .062" IR

$

$

Not available

9

5106169

PULLEY V-BELT IDLER 1.79" OD X 3/8" BORE

$

$

Not available

9

5106169

PULLEY V-BELT IDLER 1.79" OD X 3/8" BORE

$

$

Not available

10

5106048

PULLEY IDLER 2.75" OD X 3/8" BORE

$

$

Not available

10

5106048

PULLEY IDLER 2.75" OD X 3/8" BORE

$

$

Not available

11

5105890

PULLEY IDLER 1.75" OD X 3/8" BORE

$

$

Not available

11

5105890

PULLEY IDLER 1.75" OD X 3/8" BORE

$

$

Not available

12

5105969

PLATE, CABLE HOLDER

$

$

Not available

12

5105969

PLATE, CABLE HOLDER

$

$

Not available

13

84008426

HANDLE, LH

$

$

Not available

13

84008426

HANDLE, LH

$

$

Not available

14

84008428

ARM, Brake

$

$

Not available

14

84008428

ARM, Brake

$

$

Not available

15

5106173

ROD END, FEMALE 1/4-28 RH SS PTFE RACE

$

$

Not available

15

5106173

ROD END, FEMALE 1/4-28 RH SS PTFE RACE

$

$

Not available

16

5105900

GRIP, .188" X 1.00" ID X .150" THK CLSD CELL FOAM

$

$

Not available

16

5105900

GRIP, .188" X 1.00" ID X .150" THK CLSD CELL FOAM

$

$

Not available

17

84010268

SPRING, Extension

$

$

Not available

17

84010268

SPRING, Extension

$

$

Not available

18

5106174

ROD, THREADED .250"-28 X 1.500" SS188

$

$

Not available

18

5106174

ROD, THREADED .250"-28 X 1.500" SS188

$

$

Not available

19

5106215

SCR-CAP, HEX .750"-10 X 6.000" SS188

$

$

Not available

19

5106215

SCR-CAP, HEX .750"-10 X 6.000" SS188

$

$

Not available

20

5106069

SCR-CAP, HEX .375"-16 X 1.500" SS188

$

$

Not available

20

5106069

SCR-CAP, HEX .375"-16 X 1.500" SS188

$

$

Not available

21

5106024

SCR-CAP, HEX .3125"-18 X .750" SS188

$

$

Not available

21

5107616

SCR-CAP, HSWH .375"-16 X 1.250" SS188

$

$

Not available

22

5106214

SCR-CAP, HEX .250"-20 X .750" SS188

$

$

Not available

22

5106214

SCR-CAP, HEX .250"-20 X .750" SS188

$

$

Not available

23

5106029

SCR-CAP, HEX .250"-20 X .625" SS188

$

$

Not available

23

5106029

SCR-CAP, HEX .250"-20 X .625" SS188

$

$

Not available

24

5105978

SCR-CAP, BSH #10-24 X .500" SS188

$

$

Not available

24

5105978

SCR-CAP, BSH #10-24 X .500" SS188

$

$

Not available

25

5107641

BLT-SLDR,SH.50"X1.25",.375"-16X.63"SS188

$

$

Not available

25

5107641

BLT-SLDR,SH.50"X1.25",.375"-16X.63"SS188

$

$

Not available

26

5106172

BLT-SLDR, SH .38"X0.75,.313-18 X.50 SS

$

$

Not available

26

5106172

BLT-SLDR, SH .38"X0.75,.313-18 X.50 SS

$

$

Not available

27

5106171

BLT-SLDR, SH .375" X 0.250", .3125"-18 X.500" SS188

$

$

Not available

27

5106171

BLT-SLDR, SH .375" X 0.250", .3125"-18 X.500" SS188

$

$

Not available

28

5105992

NUT-HEX-NYLK, 0.3125"-18 SS188

$

$

Not available

28

5105992

NUT-HEX-NYLK, 0.3125"-18 SS188

$

$

Not available

29

5106184

NUT-HEX-NYLK, .750"-10 TH GA ZP

$

$

Not available

29

5106184

NUT-HEX-NYLK, .750"-10 TH GA ZP

$

$

Not available

30

5106006

NUT-HEX-NYLK, .375"-16 SS188

$

$

Not available

30

5106006

NUT-HEX-NYLK, .375"-16 SS188

$

$

Not available

31

5106579

NUT-HEX-NYLK, .375"-16 TH SS188

$

$

Not available

31

5106579

NUT-HEX-NYLK, .375"-16 TH SS188

$

$

Not available

32

5106040

NUT-HEX-NYLK, .250"-20 SS188

$

$

Not available

32

5106040

NUT-HEX-NYLK, .250"-20 SS188

$

$

Not available

33

5106016

NUT-HEX, JAM .250"-28 SS188

$

$

Not available

33

5106016

NUT-HEX, JAM .250"-28 SS188

$

$

Not available

34

5105963

NUT-HEX-NYLK, #10-24 SS188

$

$

Not available

34

5105963

NUT-HEX-NYLK, #10-24 SS188

$

$

Not available

35

5105973

NUT-CLIP, .250"-20 X .375" EDGE DISTANCE

$

$

Not available

35

5105973

NUT-CLIP, .250"-20 X .375" EDGE DISTANCE

$

$

Not available

36

5105898

NUT-CLIP .250"-20 X .781" EDGE DISTANCE

$

$

Not available

36

5105898

NUT-CLIP .250"-20 X .781" EDGE DISTANCE

$

$

Not available

37

5106067

WSHR-STL, FLT .281" X .625" X .050" IS SS188

$

$

Not available

37

5106067

WSHR-STL, FLT .281" X .625" X .050" IS SS188

$

$

Not available

39

5107638

NUT-HEX-NYLK, FLG .375"-16 SS188

$

$

Not available

39

5107638

NUT-HEX-NYLK, FLG .375"-16 SS188

$

$

Not available

40

5419900

PLATE, HOPPER CABLES

$

$

Not available

40

5419900

PLATE, HOPPER CABLES

$

$

Not available

41

5108320

SCR-CAP, SBH .250"-20 X .375" SS188

$

$

Not available

41

5108320

SCR-CAP, SBH .250"-20 X .375" SS188

$

$

Not available

42

5107668

BLT-RDHDSQNK, .250"-20 X 1.000" SS188

$

$

Not available

42

5107668

BLT-RDHDSQNK, .250"-20 X 1.000" SS188

$

$

Not available

43

84008430

SPACER

$

$

Not available

43

84008430

SPACER

$

$

Not available

44

5107616

SCR-CAP, HSWH .375"-16 X 1.250" SS188

$

$

Not available
