LSG 2001 H - Lesco Stand-On Spreader Spreader Shield Group Parts Diagram

Stand-On Spreader

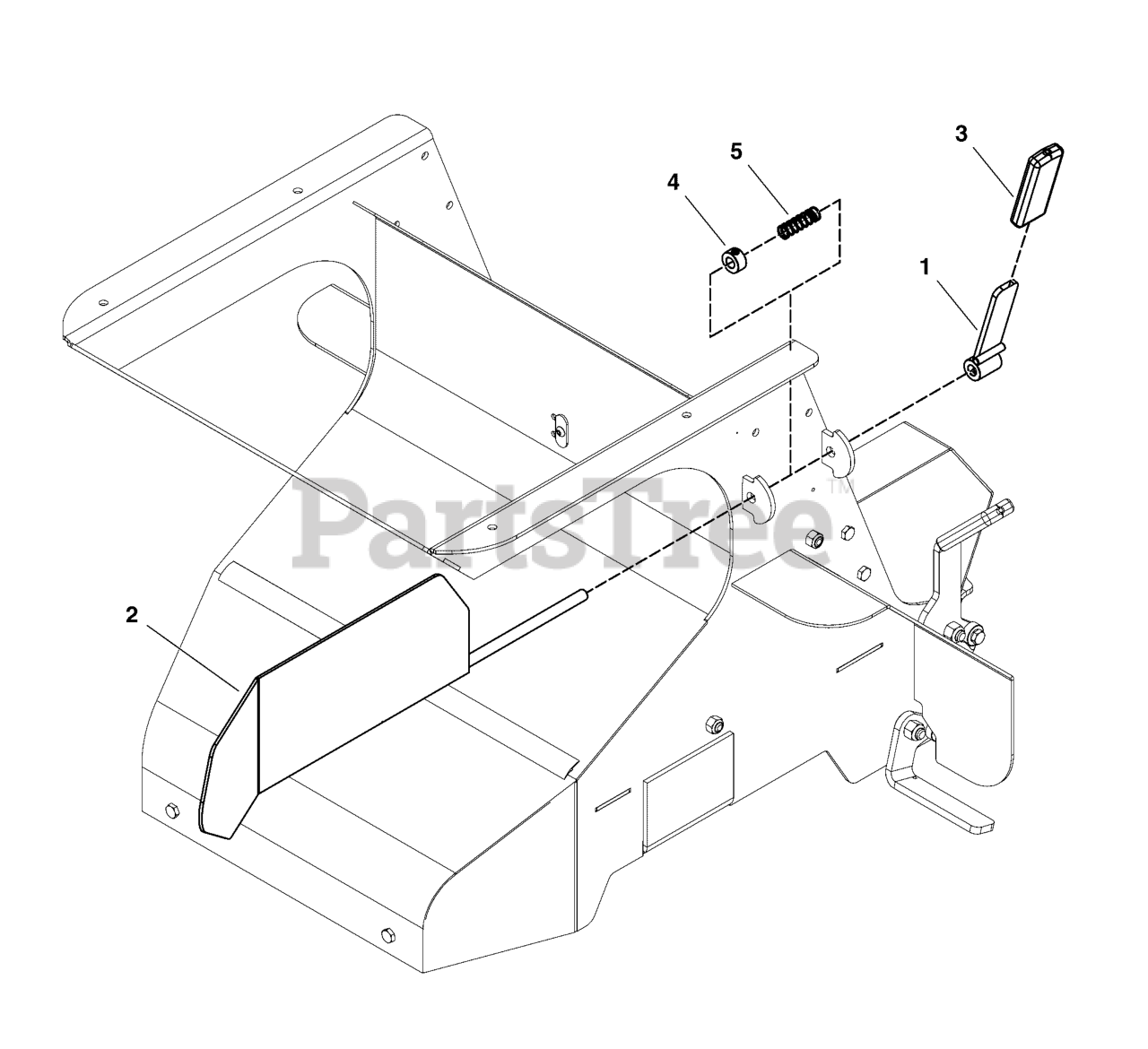

Spreader Shield Group Parts Diagram

  • Title

1

5601516

KIT, ROVER DIVERTER HANDLE W/ GRIP

Note: (Includes items #1-1 and 2.)

$

$

Not available

1

84009345

HANDLE

$

$

Not available

1-1

SET SCREW, 1/4"-20 X 3/16" Hex Socket

$

$

Not available

1-1

SET SCREW, 1/4"-20 X 3/16" Hex Socket

$

$

Not available

2

5106271

WELD, DIVERTER ROVER

$

$

Not available

2

5106271

WELD, DIVERTER ROVER

$

$

Not available

3

5105900

GRIP, .188" X 1.00" ID X .150" THK CLSD CELL FOAM

$

$

Not available

3

84009478

GRIP, HANDLE

$

$

Not available

4

5106023

COLLAR, SHAFT .375ID X .750OD X .375WD

$

$

Not available

4

5106023

COLLAR, SHAFT .375ID X .750OD X .375WD

$

$

Not available

5

5106027

SPRING, COMPRESSION .480" OD X 1.500 LONG SS

$

$

Not available

5

5106027

SPRING, COMPRESSION .480" OD X 1.500 LONG SS

$

$

Not available
