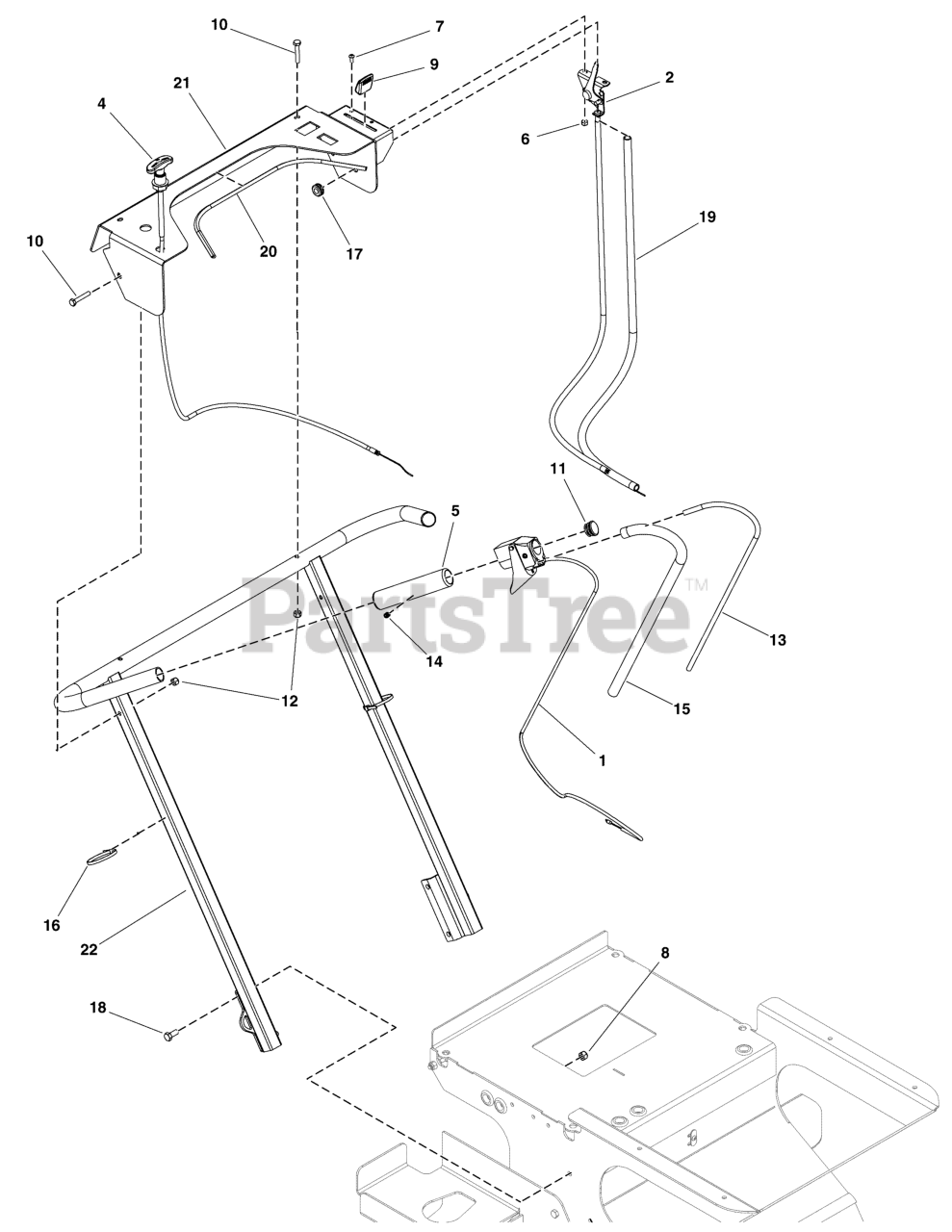

LSS 200160 H - Lesco Stand-On Spreader Sprayer Handlebar Group Parts Diagram

Stand-On Spreader Sprayer

Handlebar Group Parts Diagram

  • Title

1

Briggs & Stratton 5601316

KIT, ROVER/PATHFINDER THROTTLE CABLE

Note: (Connects to engine.)

$125.99

$

In Stock, Qty 7

0

1

Briggs & Stratton 5601316

KIT, ROVER/PATHFINDER THROTTLE CABLE

Note: (Connects to engine.)

$125.99

$

In Stock, Qty 7

0

1

Briggs & Stratton 5601316

KIT, ROVER/PATHFINDER THROTTLE CABLE

Note: (Connects to engine.)

$125.99

$

In Stock, Qty 7

0

2

Briggs & Stratton 5109577

CABLE, LEVER ACTION 34"
(Superseded to 84009113)

Note: (Connects to gate assembly.)

$44.99

$

In Stock, Qty 8

0

2

Briggs & Stratton 5109577

CABLE, LEVER ACTION 34"
(Superseded to 84009113)

Note: (Connects to gate assembly.)

$44.99

$

In Stock, Qty 8

0

2

Briggs & Stratton 84009113

CABLE

Note: (Connects to gate assembly.)(Includes item # 9.)

$44.99

$

In Stock, Qty 8

0

3

Briggs & Stratton 5108411

CABLE, SPRAY

$62.99

$

In Stock, only 2 left!

0

3

Briggs & Stratton 5108411

CABLE, SPRAY

$62.99

$

In Stock, only 2 left!

0

3

Briggs & Stratton 5108411

CABLE, SPRAY

$62.99

$

In Stock, only 2 left!

0

4

Briggs & Stratton 5109576

CABLE, TURN TO LOCK, 35"
(Superseded to 84009121)

Note: (Connects to gate assembly.)

$

$

Not available

4

Briggs & Stratton 5109576

CABLE, TURN TO LOCK, 35"
(Superseded to 84009121)

Note: (Connects to gate assembly.)

$

$

Not available

4

Briggs & Stratton 5109576

CABLE, TURN TO LOCK, 35"
(Superseded to 84009121)

Note: (Connects to gate assembly.)

$

$

Not available

5

Briggs & Stratton 5105928

GRIP, .94 ID X .155 THK X 5.75 LONG

$7.49

$

In Stock, only 3 left!

0

5

Briggs & Stratton 5105928

GRIP, .94 ID X .155 THK X 5.75 LONG

$7.49

$

In Stock, only 3 left!

0

5

Briggs & Stratton 5105928

GRIP, .94 ID X .155 THK X 5.75 LONG

$7.49

$

In Stock, only 3 left!

0

6

Briggs & Stratton 5105963

NUT-HEX-NYLK, #10-24 SS188
(Superseded to 5105963FS)

$3.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 5105963

NUT-HEX-NYLK, #10-24 SS188
(Superseded to 5105963FS)

$3.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 5105963

NUT-HEX-NYLK, #10-24 SS188
(Superseded to 5105963FS)

$3.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 5105978

SCR-CAP, BSH #10-24 X .500" SS188
(Superseded to 84009048)

$3.49

$

In Stock, only 1 left!

0

7

Briggs & Stratton 5105978

SCR-CAP, BSH #10-24 X .500" SS188
(Superseded to 84009048)

$3.49

$

In Stock, only 1 left!

0

7

Briggs & Stratton 5105978

SCR-CAP, BSH #10-24 X .500" SS188
(Superseded to 84009048)

$3.49

$

In Stock, only 1 left!

0

8

Briggs & Stratton 5105992

NUT-HEX-NYLK, 0.3125"-18 SS188
(Superseded to 5105992FS)

$3.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 5105992

NUT-HEX-NYLK, 0.3125"-18 SS188
(Superseded to 5105992FS)

$3.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 5105992

NUT-HEX-NYLK, 0.3125"-18 SS188
(Superseded to 5105992FS)

$3.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 84009808

KNOB

$3.99

$

In Stock, only 2 left!

0

9

Briggs & Stratton 5106000

KNOB, GATE LEVER
(Superseded to 84009808)

$3.99

$

In Stock, only 2 left!

0

9

Briggs & Stratton 5106000

KNOB, GATE LEVER
(Superseded to 84009808)

$3.99

$

In Stock, only 2 left!

0

10

Briggs & Stratton 5106021

SCR-CAP, HEX .250"-20 X 1.500" SSF593C
(Superseded to 84009051)

$3.49

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 5106021

SCR-CAP, HEX .250"-20 X 1.500" SSF593C
(Superseded to 84009051)

$3.49

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 5106021

SCR-CAP, HEX .250"-20 X 1.500" SSF593C
(Superseded to 84009051)

$3.49

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 5106028

PLUG, 1" TUBE, ROUND

$3.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 5106028

PLUG, 1" TUBE, ROUND

$3.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 5106028

PLUG, 1" TUBE, ROUND

$3.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 5106040

NUT-HEX-NYLK, .250"-20 SS188
(Superseded to 5106040FS)

$3.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 5106040

NUT-HEX-NYLK, .250"-20 SS188
(Superseded to 5106040FS)

$3.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 5106040

NUT-HEX-NYLK, .250"-20 SS188
(Superseded to 5106040FS)

$3.99

$

Usually ships in 2-12 days

0

13

SUPPORT, Control

$

$

Not available

13

SUPPORT, Control

$

$

Not available

13

Briggs & Stratton 5106068

ROD,CABLE SUPPORT

$42.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 5106185

SCR-SH, SET .3125"-18 X .375" KCPT SS188

$4.49

$

In Stock, Qty 11

0

14

Briggs & Stratton 5106185

SCR-SH, SET .3125"-18 X .375" KCPT SS188

$4.49

$

In Stock, Qty 11

0

14

Briggs & Stratton 5106185

SCR-SH, SET .3125"-18 X .375" KCPT SS188

$4.49

$

In Stock, Qty 11

0

15

Briggs & Stratton 5106204

THROTTLE CABLE SPLIT LOOM, .500" ID

$4.49

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 5106204

THROTTLE CABLE SPLIT LOOM, .500" ID

$4.49

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 5106204

THROTTLE CABLE SPLIT LOOM, .500" ID

$4.49

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 5106297

CABLE TIE, .188" W X 7.50" LNG

$2.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 5106297

CABLE TIE, .188" W X 7.50" LNG

$2.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 5106297

CABLE TIE, .188" W X 7.50" LNG

$2.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 5106454

GROMMET, 0.375" I.D., FIT 0.500" HOLE

$3.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 5106454

GROMMET, 0.375" I.D., FIT 0.500" HOLE

$3.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 5106454

GROMMET, 0.375" I.D., FIT 0.500" HOLE

$3.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 5106024

SCR-CAP, HEX .3125"-18 X .750" SS188
(Superseded to 84009062)

$3.49

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 5106024

SCR-CAP, HEX .3125"-18 X .750" SS188
(Superseded to 84009062)

$3.49

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 5106024

SCR-CAP, HEX .3125"-18 X .750" SS188
(Superseded to 84009062)

$3.49

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 5417981

SPLIT LOOM, GATE CABLE, 28"

$5.49

$

In Stock, Qty 7

0

19

Briggs & Stratton 5417981

SPLIT LOOM, GATE CABLE, 28"

$5.49

$

In Stock, Qty 7

0

19

Briggs & Stratton 5417981

SPLIT LOOM, GATE CABLE, 28"

$5.49

$

In Stock, Qty 7

0

20

Briggs & Stratton 5418134

TRIM, CONSOLE, 18.75 LONG

$7.49

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 5418134

TRIM, CONSOLE, 18.75 LONG

$7.49

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 5418134

TRIM, CONSOLE, 18.75 LONG

$7.49

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 5418069

WELD, OPERATOR, HANDLEBAR FRAME - XC

$194.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 5418069

WELD, OPERATOR, HANDLEBAR FRAME - XC

$194.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 5418069

WELD, OPERATOR, HANDLEBAR FRAME - XC

$194.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 5106289

WELD, FRAME, HANDLE BAR - XC

$540.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 5106289

WELD, FRAME, HANDLE BAR - XC

$540.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 5106289

WELD, FRAME, HANDLE BAR - XC

$540.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 5106016

NUT-HEX, JAM .250"-28 SS188

$7.99

$

In Stock, only 2 left!

0

23

Briggs & Stratton 5106016

NUT-HEX, JAM .250"-28 SS188

$7.99

$

In Stock, only 2 left!

0

23

Briggs & Stratton 5106016

NUT-HEX, JAM .250"-28 SS188

$7.99

$

In Stock, only 2 left!

0

24

Briggs & Stratton 5106297

CABLE TIE, .188" W X 7.50" LNG

Note: (Not illustrated.)

$2.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 5106297

CABLE TIE, .188" W X 7.50" LNG

Note: (Not illustrated.)

$2.99

$

Usually ships in 2-12 days

0
