LSS 200160 H - Lesco Stand-On Spreader Sprayer Operator Platform Group Parts Diagram

Stand-On Spreader Sprayer

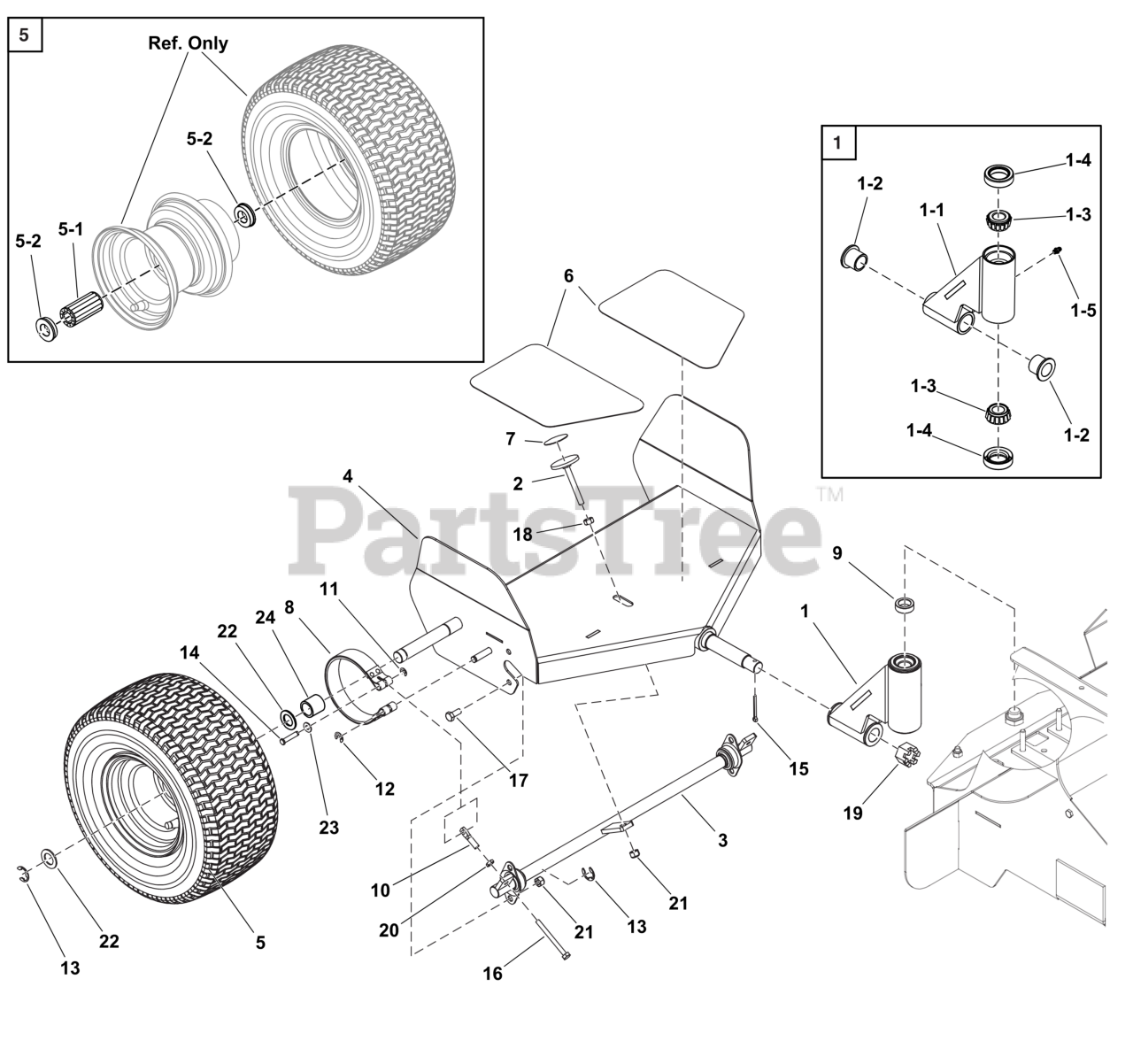

Operator Platform Group Parts Diagram

  • Title

1

ASSM, TIE, PLATFORM (S0104)

$

$

Not available

1-1

Briggs & Stratton 5417983

WELD, HINGE SULKY

$584.99

$

Usually ships in 2-12 days

0

1-2

Briggs & Stratton 5106004

BUSHING, FLANGE 7/8 ID X 1 1/8 OD X 1 LG

$14.99

$

In Stock, only 2 left!

0

1-3

Briggs & Stratton 5105967

CONE, TPR-ROL Ø.750" ID X Ø1.521" OD x .655" TH

$21.99

$

In Stock, only 2 left!

0

1-4

Briggs & Stratton 5105975

SEAL, 1.125" BORE X 1.784" OD X 0.469 THK

$13.99

$

Usually ships in 2-12 days

0

1-5

Briggs & Stratton 5106119

ZERK, GREASE .250"-28 SS
(Superseded to 84009476)

$5.49

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 5106254

WELD, BRAKE PEDAL

$28.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 5106270

BRAKE SHAFT ASSY, ROVER (S0301)

$251.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 5417972

WELD, SULKY FRAME

$1131.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 5106759

ASM, WHEEL & TIRE 13" X 6.50" - 6 TURF

$236.99

$

In Stock, only 3 left!

0

5-1

Briggs & Stratton 5105907

BEARING, ROLLER (C0147)

Note: (One per tire)

$15.99

$

In Stock, only 2 left!

0

5-2

Briggs & Stratton 5105901

RETAINER, BEARING (C0148)

Note: (Two per tire)

$10.99

$

In Stock, only 4 left!

0

6

Briggs & Stratton 5105929

PADS, NON-SLIP PLATFORM

$20.99

$

In Stock, only 2 left!

0

7

Briggs & Stratton 5417967

PAD, NON-SLIP ROUND BRAKE

$3.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 5105910

BRAKE, BAND 4.00 INCH

$157.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 5105986

SPCR-SS, 303 .750" X 1.125" X .375

$38.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 5105995

NUT-EYE .250" 20 X 1.500 OAL ZP

$3.49

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 5106605

E-RING, 0.250" SHAFT SSPH

$3.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 5106047

E-RING, 0.375" SHAFT YZ

$3.49

$

In Stock, only 2 left!

0

13

Briggs & Stratton 5105882

E-RING, .750" SHAFT YZ

$3.49

$

In Stock, only 3 left!

0

14

Briggs & Stratton 5105984

PIN, CVS .250" X 1.125" SS188

$3.99

$

In Stock, only 2 left!

0

15

Briggs & Stratton 5106163

PIN-CTR, .156" X 1.500" SS188

$3.49

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 84009052

BOLT

$3.49

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 5106024

SCR-CAP, HEX .3125"-18 X .750" SS188
(Superseded to 84009062)

$3.49

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 5106159

NUT-HEX, .3125"-18 SS188
(Superseded to 84009879)

$3.49

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 5106203

NUT-HEX, CSTL .750"-16 GR2 ZP

$3.49

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 5105977

NUT-HEX, JAM .250"-20 SS188

$3.49

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 5105992

NUT-HEX-NYLK, 0.3125"-18 SS188
(Superseded to 5105992FS)

$3.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 5105957

WSHR-STL, FLT .750"X1.250" X .075" MAB ZP

$3.99

$

In Stock, only 3 left!

0

23

Briggs & Stratton 5106067

WSHR-STL, FLT .281" X .625" X .050" IS SS188
(Superseded to 84010425)

$3.49

$

In Stock, only 1 left!

0

24

Briggs & Stratton 5601299

KIT, SULKY WHEEL SPACER

Note: (Includes item #22.)(Refer to Note: *)Note: *This kit contains parts to do both sides of the unit.

$29.99

$

In Stock, only 2 left!

0
