LSS 200160 H - Lesco Stand-On Spreader Sprayer Spray Tank Group Parts Diagram

Stand-On Spreader Sprayer

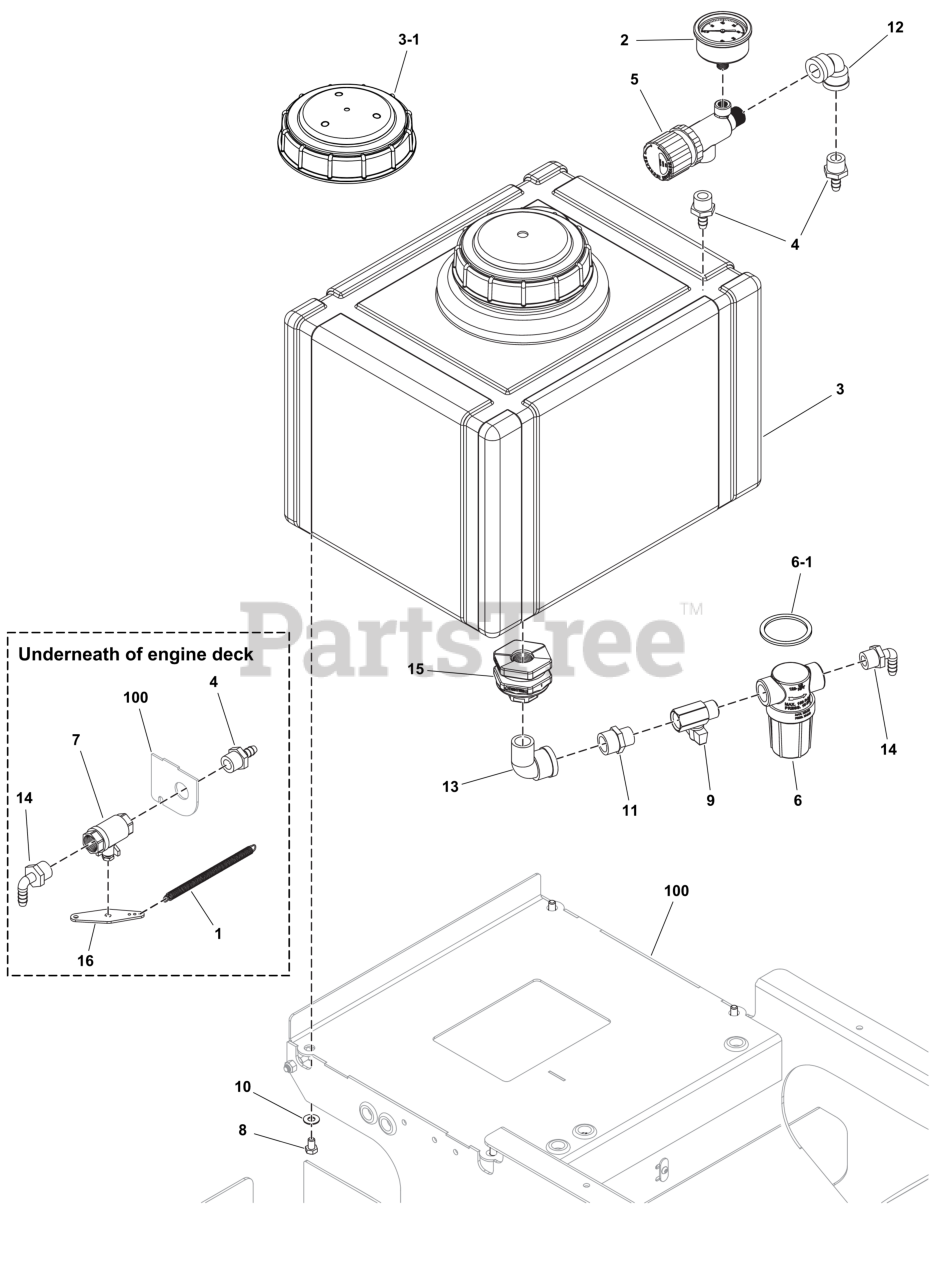

Spray Tank Group Parts Diagram

  • Title

1

5105889

SPRING, EXTENSION .64" OD X 4.00" LG SS

$

$

Not available

2

5105941

PRESSURE GAUGE, 60 PSI, BACK MOUNT

$

$

Not available

3

5420628

PATHFINDER XC LIQUID TANK - SERVICE ONLY

Note: (Includes items #3-1 and #15).

$

$

Not available

3-1

5105985

LID, TANK, SPRAY (G0134)

$

$

Not available

4

5105956

FITTING, 1/2 MALE, 3/8 BARB

$

$

Not available

5

5105959

PRESSURE RELIEF VALVE, 150PSI

$

$

Not available

6

84008892

STRAINER

Note: (Includes item #6-1.)

$

$

Not available

6-1

84009456

GASKET

$

$

Not available

7

5105962

BALL VALVE, 600 PSI

$

$

Not available

8

5105996

SCR-CAP, HEX .3125"-18 X .500" SS188

$

$

Not available

9

5106003

VALVE, BALL, 1/2 MPT - 1/2 FPT

$

$

Not available

10

5106009

WSHR-STL, FLT .343" X .750" X .050" SPC SS188

$

$

Not available

11

5106059

REDUCER BUSHING, 3/4NPT - 1/2NPT, NYLON

$

$

Not available

12

5106080

FITTING, 1/2FNPT - 1/2FNPT, 90 ELBOW

$

$

Not available

13

5106167

FITTING, 3/4NPT - 3/4FNPT, 90 ELBOW

$

$

Not available

14

5106201

FITTING, 1/2MNPT, 3/8 BARB, 90 ELBOW

$

$

Not available

15

5106288

FITTING, TANK BULKHEAD 3/4" POLY

$

$

Not available

16

5418040

PLATE, VALVE ACTUATOR ARM

$

$

Not available

100

FRAME

Note: (Refer to Main Frame Group)

$

$
