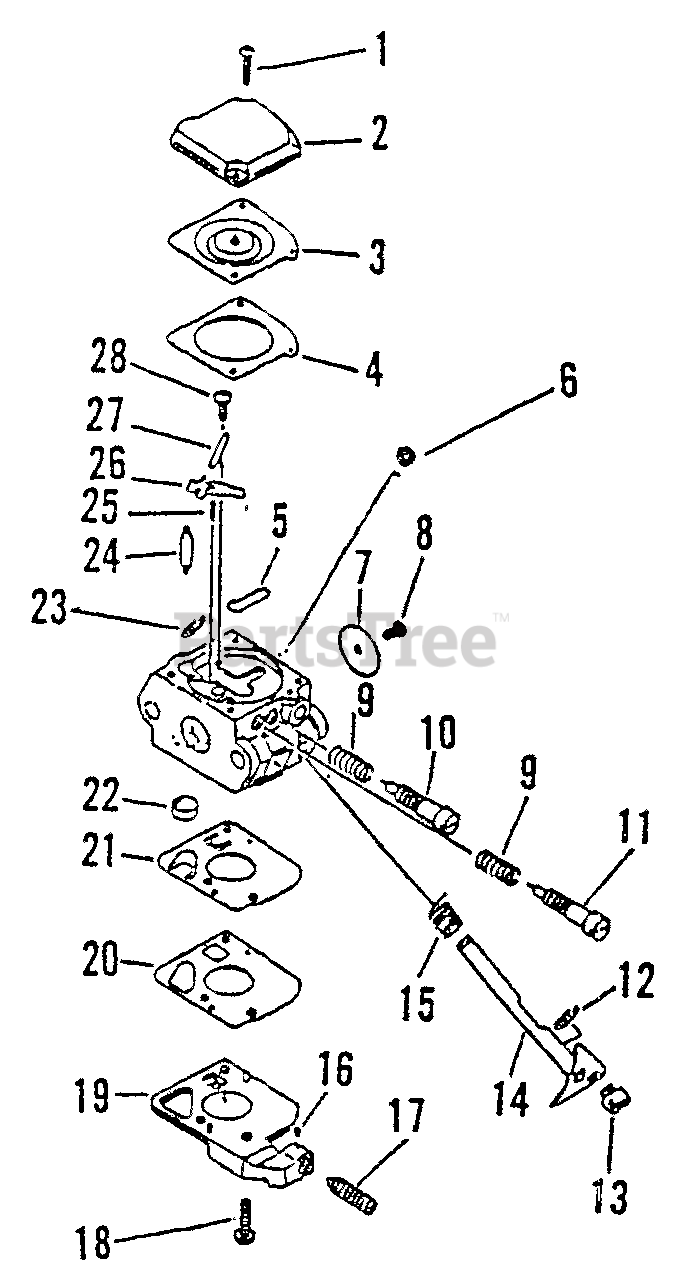

LST-2100 - Lesco String Trimmer (SN: 001001 - 003000) Carburetor Parts Diagram

String Trimmer

Carburetor Parts Diagram

  • Title

1

Echo 12520044730

CARBURETOR - C1U-K9
(Superseded to 12520044731)

$

$

Not available

1

Echo 12534413931

SCREW

$2.99

$

In Stock, Qty 12

0

2

Echo 12534215130

COVER, DIAPHRAGM
(Superseded to 12534213210)

$4.99

$

In Stock, only 2 left!

0

3

DIAPHRAGM

Note: INCLUDED IN REPAIR KIT P/N 12530242030 & DIAPHRAGM/GASKET KIT P/N 12530342030

$

$

Not available

4

GASKET, METERING

Note: INCLUDED IN REPAIR KIT P/N 12530242030 & DIAPHRAGM/GASKET KIT P/N 12530342030

$

$

Not available

5

PLUG, WELCH

Note: INCLUDED IN REPAIR KIT P/N 12530242030

$

$

Not available

6

NOZZLE, CHECK VALVE

Note: INCLUDED IN REPAIR KIT P/N 12530242030

$

$

Not available

7

Echo 125316-42030

VALVE, THROTTLE

$2.99

$

In Stock, only 1 left!

0

8

Echo 125314-13930

SCREW

$1.49

$

Usually ships in 2-4 days

0

9

Echo 125319-42030

SPRING, NEEDLE

$1.49

$

In Stock, only 2 left!

0

10

Echo 125320-42030

NEEDLE, HIGH SPEED

$5.49

$

Usually ships in 2-4 days

0

11

Echo 125318-42030

NEEDLE, LOW SPEED
(Superseded to 12531851330)

$

$

Not available

12

Echo 125327-13930

CLIP

$0.99

$

In Stock, Qty 5

0

13

Echo 125372-42030

SWIVEL

$5.49

$

Usually ships in 2-4 days

0

14

Echo 125317-42030

SHAFT, THROTTLE

$6.99

$

Usually ships in 2-4 days

0

15

Echo 125313-42030

SPRING, THROTTLE RETURN

$1.49

$

In Stock, Qty 12

0

16

Echo 12537813930

PIECE, FRICTION

$1.99

$

Usually ships in 2-4 days

0

17

Echo 12533413930

SCREW, IDLE ADJUST

$1.99

$

In Stock, only 2 left!

0

18

Echo 125310-42030

SCREW

$0.99

$

Usually ships in 2-4 days

0

19

Echo 12532442030

COVER, PUMP

$9.49

$

Usually ships in 2-4 days

0

------------------

GASKET, PUMP

Note: INCLUDED IN REPAIR KIT P/N 12530242030 & DIAPHRAGM/GASKET KIT P/N 12530342030

$

$

Not available

------------------

DIAPHRAGM, PUMP

Note: INCLUDED IN REPAIR KIT P/N 12530242030 & DIAPHRAGM/GASKET KIT P/N 12530342030

$

$

Not available

22

Echo 125326-42030

STRAINER

$3.99

$

Usually ships in 2-4 days

0

23

Echo 125327-15130

E-RING

$0.99

$

In Stock, Qty 5

0

24

VALVE, NEEDLE

Note: INCLUDED IN REPAIR KIT P/N 12530242030

$

$

Not available

25

SPRING

Note: INCLUDED IN REPAIR KIT P/N 12530242030

$

$

Not available

26

LEVER, METERING

Note: INCLUDED IN REPAIR KIT P/N 12530242030

$

$

Not available

27

PIN

Note: INCLUDED IN REPAIR KIT P/N 12530242030

$

$

Not available

28

Echo 125339-42030

SCREW

$0.99

$

In Stock, Qty 11

0

Echo 12530342030

GASKET / DIAPHRAGM KIT

$16.99

$

In Stock, only 2 left!

0

Echo 12530242030

REPAIR KIT
(Superseded to 12530042030)

$20.99

$

In Stock, only 2 left!

0

Echo 88900042031

GASKET KIT
(Superseded to 88900042032)

Note: INCLUDES THE FOLLOWING

$19.99

$

In Stock, only 2 left!

0

GASKET, CRANKCASE

$

$

Not available

Echo 10101042031

GASKET, CYLINDER
(Superseded to 10101044330)

$4.99

$

Usually ships in 2-4 days

0

Echo V103000490

HEAT SHIELD, INTAKE
(Superseded to V103001360)

$2.99

$

In Stock, Qty 12

0

Echo 130016-42031

GASKET, INTAKE

$1.49

$

In Stock, Qty 20+

0

Echo V104000160

GASKET, EXHAUST

$2.49

$

In Stock, Qty 20+

0

Echo 145866-42031

GASKET, EXHAUST

$2.99

$

In Stock, only 2 left!

0

Echo 61041404560

GASKET, GEAR CASE

$1.49

$

In Stock, only 3 left!

0
