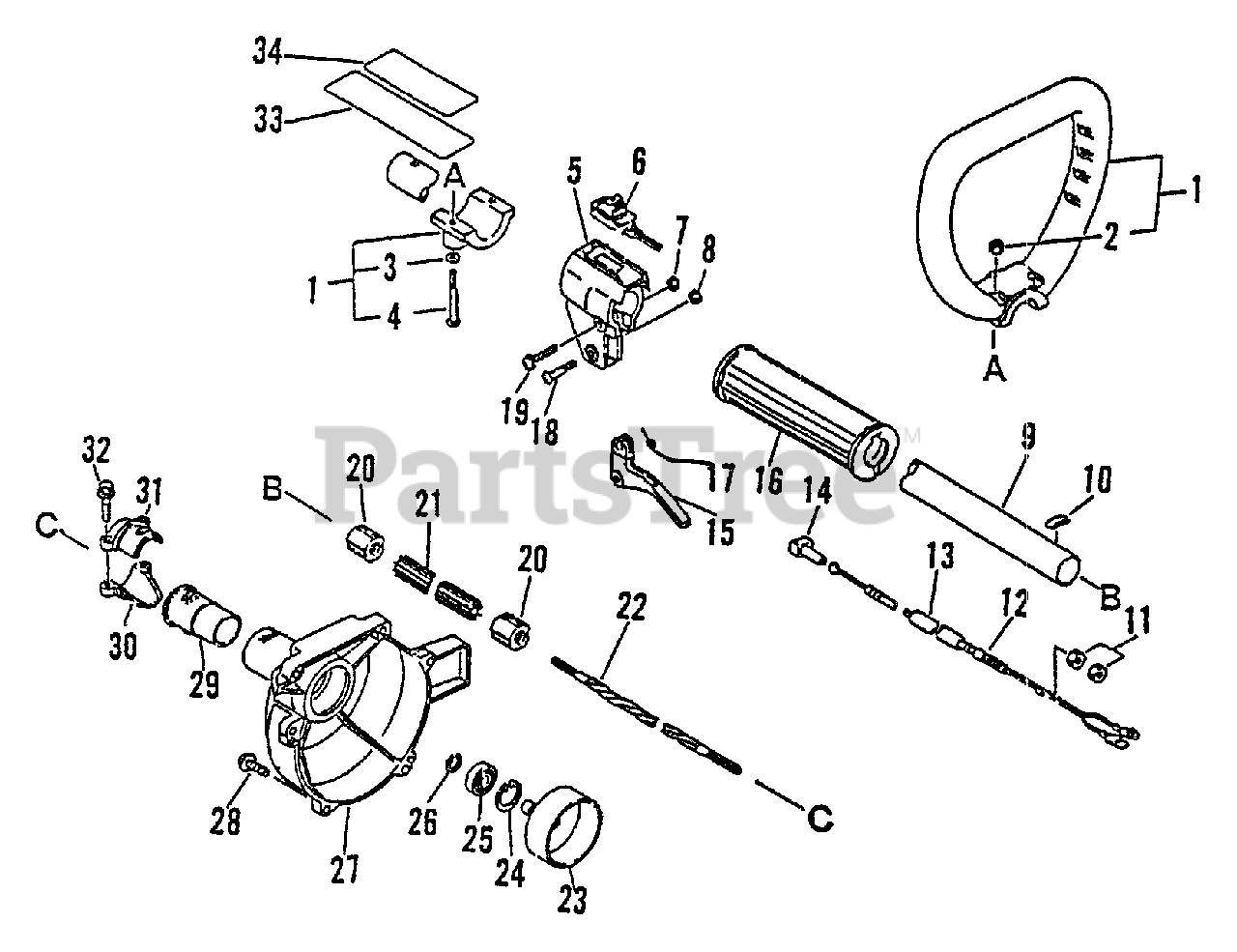

LST-2100 - Lesco String Trimmer (SN: 001001 - 003000) Clutch Drum, Driveshaft, Fan Housing, Ignition Switch, Handles, Throttle Parts Diagram

String Trimmer

Clutch Drum, Driveshaft, Fan Housing, Ignition Switch, Handles, Throttle Parts Diagram

  • Title

1

Echo 35120108930

LOOP HANDLE ASSY

Note: INCLUDES ITEMS 2 & 3

$42.99

$

Usually ships in 2-4 days

0

2

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

3

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

4

Echo 90022005040

SCREW - 5X40

$0.99

$

In Stock, Qty 8

0

5

Echo 17802449230

BRACKET, THROTTLE CONTROL
(Superseded to Discontinued)

$

$

Not available

6

Echo 16340046830

IGNITION SWITCH ASSY
(Superseded to 16340155631)

$9.49

$

In Stock, Qty 10

0

7

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

8

Echo 90056000005

LOCKNUT - 5

$1.49

$

In Stock, Qty 20+

0

9

Echo 61060944730

MAIN PIPE ASSY

Note: INCLUDES ITEMS 20 & 21

$51.99

$

Usually ships in 2-4 days

0

10

Echo 89015204930

LABEL - ALIGNMENT

$0.99

$

In Stock, Qty 18

0

11

Echo 90050200006

NUT - 6

$0.99

$

In Stock, Qty 20+

0

12

Echo 17800144430

CABLE, THROTTLE

$11.99

$

In Stock, Qty 6

0

13

Echo 17812724030

TUBE - VINYL

$0.99

$

In Stock, Qty 10

0

14

Echo 17804805630

GUIDE, CABLE

$1.99

$

In Stock, Qty 10

0

15

Echo 17801024631

TRIGGER, THROTTLE
(Superseded to Discontinued)

$

$

Not available

16

Echo 35101244730

GRIP, HANDLE
(Superseded to Discontinued)

$

$

Not available

17

Echo 17804306930

SPRING, TRIGGER

$1.49

$

In Stock, Qty 14

0

18

Echo 17811005330

SCREW - 5X30

$0.99

$

In Stock, Qty 18

0

19

Echo 90024205030

SCREW - 5X30

$0.99

$

In Stock, only 2 left!

0

20

Echo 61024644730

BUSHING

$1.49

$

In Stock, Qty 20+

0

21

Echo C507000260

LINER - FLEXIBLE

$27.99

$

In Stock, only 4 left!

0

22

Echo 61001342330

DRIVESHAFT - FLEXIBLE
(Superseded to 61001351030)

$67.99

$

Usually ships in 2-4 days

0

23

Echo 17500542030

DRUM, CLUTCH

$40.99

$

Usually ships in 2-4 days

0

24

Echo 90070200028

RING, RETAINING - 28

$1.99

$

In Stock, Qty 20+

0

25

Echo 90081406201

BEARING, BALL - 6201
(Superseded to 9405406201)

$12.99

$

Usually ships in 2-4 days

0

26

Echo 90070100012

RING, RETAINING - 12

$0.99

$

In Stock, Qty 19

0

27

Echo 10153552230

CASE, FAN
(Superseded to Discontinued)

$

$

Not available

28

Echo 90023804016

SCREW - 4X16
(Superseded to Discontinued)

$

$

Not available

29

Echo 61091027832

CUSHION

$8.49

$

In Stock, only 2 left!

0

30

Echo 61092327432

CLAMP, MAIN PIPE

$6.99

$

Usually ships in 2-4 days

0

31

Echo 61092227432

CLAMP, MAIN PIPE - UPPER

$6.49

$

Usually ships in 2-4 days

0

32

Echo 90014205025

BOLT - 5X25

$0.99

$

In Stock, Qty 13

0

33

Echo 89016052330

LABEL - CAUTION
(Superseded to Discontinued)

$

$

Not available

34

Echo 89016052230

LABEL - CAUTION
(Superseded to Discontinued)

$

$

Not available
