LST-2100 - Lesco String Trimmer (SN: 001001 - 003000) Clutch Drum, Driveshaft, Fan Housing, Ignition Switch, Handles, Throttle Parts Diagram

String Trimmer

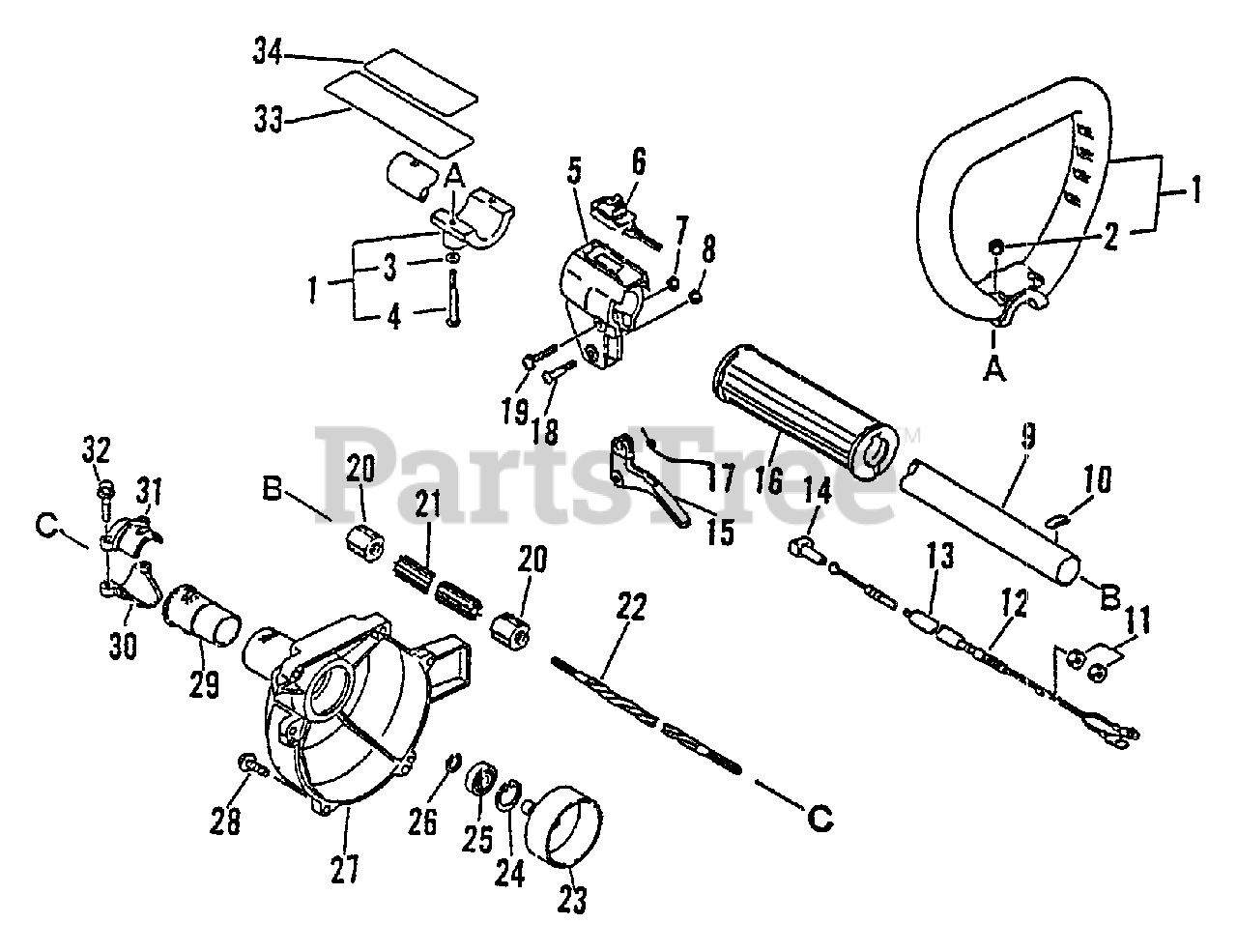

Clutch Drum, Driveshaft, Fan Housing, Ignition Switch, Handles, Throttle Parts Diagram

  • Title

1

Echo 351201-08930

LOOP HANDLE ASSY

Note: INCLUDES ITEMS 2 & 3

$45.99

$

Usually ships in 2-4 days

0

2

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

3

Echo 900600-00005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

4

Echo 900220-05040

SCREW 5×40

$0.99

$

In Stock, Qty 8

0

5

Echo 17802449230

BRACKET, THROTTLE CONTROL
(Superseded to Discontinued)

$

$

Not available

6

Echo 16340046830

IGNITION SWITCH ASSY
(Superseded to 16340155631)

$10.99

$

In Stock, only 2 left!

0

7

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

8

Echo 90056000005

NUT, LOCK M5

$1.49

$

In Stock, Qty 14

0

9

Echo 61060944730

MAIN PIPE ASSY 25×1500

Note: INCLUDES ITEMS 20 & 21

$55.99

$

Usually ships in 2-4 days

0

10

Echo 890152-04930

LABEL - ALIGNMENT

$0.99

$

In Stock, Qty 11

0

11

Echo 900502-00006

NUT M6

$0.99

$

In Stock, Qty 12

0

12

Echo 17800144430

CABLE, THROTTLE

$12.99

$

In Stock, only 2 left!

0

13

Echo 178127-24030

PIPE

$0.99

$

In Stock, Qty 9

0

14

Echo 17804805630

GUIDE, CABLE

$1.99

$

In Stock, Qty 5

0

15

Echo 17801024631

TRIGGER, THROTTLE
(Superseded to Discontinued)

$

$

Not available

16

Echo 35101244730

GRIP
(Superseded to Discontinued)

$

$

Not available

17

Echo 17804306930

SPRING, THROTTLE

$1.49

$

In Stock, only 4 left!

0

18

Echo 17811005330

SCREW

$0.99

$

In Stock, Qty 11

0

19

Echo 90024205030

SCREW 5×30

$0.99

$

In Stock, only 2 left!

0

20

Echo 61024644730

STOPPER

$1.49

$

In Stock, Qty 20+

0

21

Echo C507000260

LINER, FLEXIBLE 21.6×1420
(Superseded to C507000430)

$30.99

$

In Stock, Qty 7

0

22

Echo 61001342330

DRIVESHAFT - FLEXIBLE
(Superseded to 61001351030)

$72.99

$

Usually ships in 2-4 days

0

23

Echo 17500542030

DRUM, CLUTCH

$

$

Not available

24

Echo 90070200028

RING, SNAP 28

$1.99

$

In Stock, Qty 20+

0

25

Echo 90081406201

BEARING, BALL 6201-ZZ
(Superseded to 9405406201)

$14.99

$

In Stock, only 2 left!

0

26

Echo 90070100012

RING, RETAINING - 12

$0.99

$

In Stock, Qty 20+

0

27

Echo 10153552230

CASE, FAN
(Superseded to Discontinued)

$

$

Not available

28

Echo 900238-04016

SCREW 4×16

$0.99

$

Usually ships in 2-4 days

0

29

Echo 61091027832

CUSHION

$9.49

$

In Stock, only 2 left!

0

30

Echo 61092327432

HOLDER

$7.49

$

Usually ships in 2-4 days

0

31

Echo 61092227432

HOLDER, MAIN PIPE - UPPER

$6.99

$

In Stock, only 2 left!

0

32

Echo 900142-05025

BOLT - 5×25

$0.99

$

In Stock, Qty 9

0

33

Echo 89016052330

LABEL - CAUTION
(Superseded to Discontinued)

$

$

Not available

34

Echo 89016052230

LABEL, CAUTION
(Superseded to Discontinued)

$

$

Not available
