LST-2100 - Lesco String Trimmer (SN: 001001 - 003000) Ignition, Starter Parts Diagram

String Trimmer

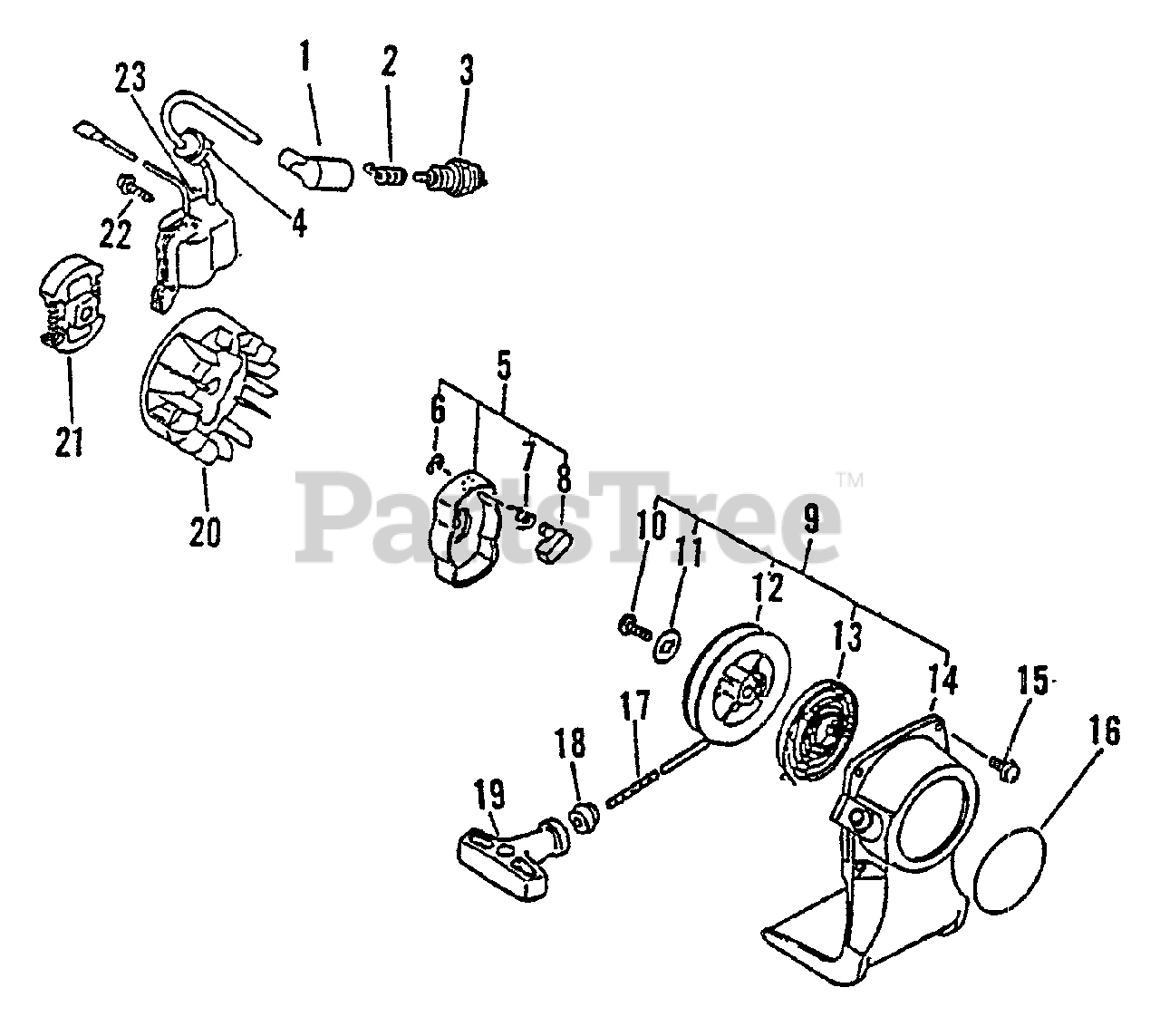

Ignition, Starter Parts Diagram

  • Title

1

Echo 159012-01620

CAP, SPARK PLUG

$1.99

$

In Stock, Qty 9

0

2

Echo 159011-03432

TERMINAL, SPARK PLUG
(Superseded to 15901103432)

$1.99

$

In Stock, Qty 20+

0

3

Echo 15901010630

SPARK PLUG - BPM7A
(Superseded to 15901010230)

$3.99

$

In Stock, Qty 20+

0

4

Echo 150112-44330

GROMMET

$9.49

$

In Stock, Qty 8

0

5

Echo 17720242030

STARTER PAWL ASSY
(Superseded to 17720244330)

Note: Includes ITEMS 6-8

$19.99

$

In Stock, only 2 left!

0

6

Echo 90070000004

E-RING 4

$0.99

$

In Stock, Qty 20+

0

7

Echo 17723412220

SPRING, RETURN

$4.99

$

In Stock, Qty 13

0

8

Echo 17721842030

PAWL, STARTER

$4.49

$

Usually ships in 2-4 days

0

9

Echo 17720044331

STARTER ASSY
(Superseded to 17720044332)

Note: ITEMS 10-14, 17-19

$53.99

$

In Stock, only 3 left!

0

10

Echo 17723640630

SCREW

$4.99

$

In Stock, Qty 13

0

11

Echo 17721442030

WASHER
(Superseded to V303000230)

$1.99

$

Usually ships in 2-4 days

0

12

Echo 17721542030

REEL, ROPE
(Superseded to 17721544430)

$10.99

$

In Stock, Qty 5

0

13

Echo 177220-42030

SPRING, RECOIL
(Superseded to P022019680)

$11.99

$

In Stock, Qty 10

0

14

Echo 17723244331

CASE, STARTER - BLUE
(Superseded to 17723244332)

$48.99

$

In Stock, only 1 left!

0

15

Echo 900238-04016

SCREW 4×16

$0.99

$

Usually ships in 2-4 days

0

16

Echo 89011507960

LABEL

$

$

Not available

17

Echo 17722605530

ROPE, STARTER

Note: RePower BULK OPTION: 99944440000

$4.99

$

In Stock, only 4 left!

0

18

Echo 177227-42030

GUIDE, ROPE
(Superseded to 17722742030)

$2.99

$

Usually ships in 2-4 days

0

19

Echo 177228-06530

GRIP, STARTER

$5.99

$

In Stock, Qty 5

0

20

Echo 15680144730

FLYWHEEL
(Superseded to 15680144731)

$126.99

$

Usually ships in 2-4 days

0

21

Echo 17500044330

CLUTCH ASSY
(Superseded to 17500042031)

$32.99

$

In Stock, only 1 left!

0

22

Echo 900238-04022

SCREW 4×22

$0.99

$

In Stock, only 2 left!

0

23

Echo 15660144730

COIL, IGNITION
(Superseded to 15660144731)

$

$

Not available
