LST-2100 - Lesco String Trimmer (SN: 001001 - 003000) Intake, Exhaust, Air Cleaner Parts Diagram

String Trimmer

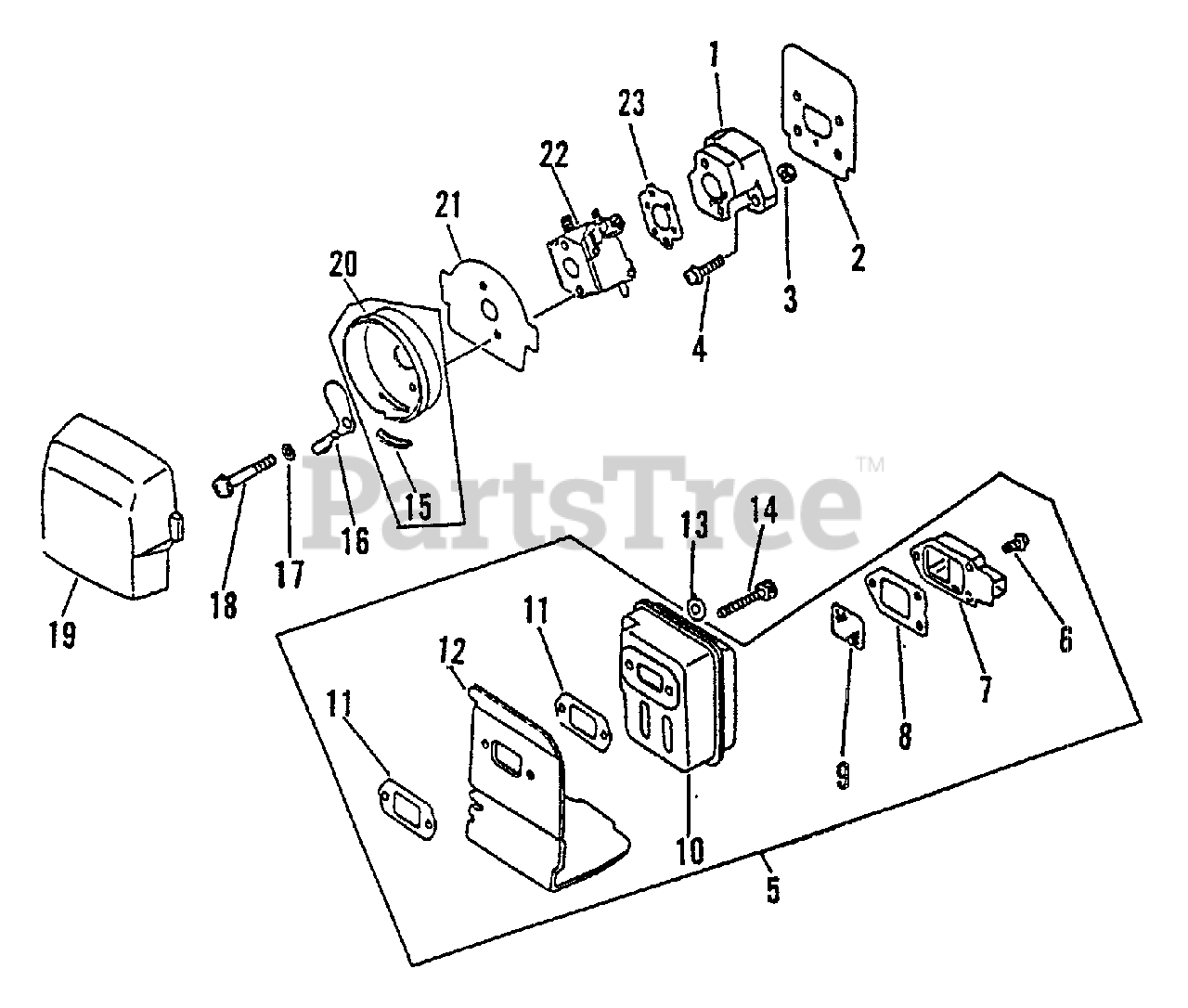

Intake, Exhaust, Air Cleaner Parts Diagram

  • Title

1

Echo 130017-42031

INSULATOR, INTAKE

$11.99

$

In Stock, Qty 8

0

2

Echo V103000490

HEAT SHIELD, INTAKE
(Superseded to V103001360)

$2.99

$

In Stock, Qty 12

0

3

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

4

Echo 900238-05020

SCREW 5×20

$0.99

$

In Stock, Qty 8

0

5

Echo 14580042031

MUFFLER ASSY
(Superseded to 14580642030)

Note: INCLUDES ITEMS 6 - 11

$55.99

$

In Stock, only 1 left!

0

6

Echo 900242-04010

SCREW 4×10

$0.99

$

In Stock, Qty 20+

0

7

Echo 145809-42030

GUIDE, EXHAUST - INNER

$8.99

$

Usually ships in 2-4 days

0

8

Echo 145866-42031

GASKET, EXHAUST

$2.99

$

In Stock, only 2 left!

0

9

Echo 14586240630

SCREEN, SPARK ARRESTER

$2.49

$

In Stock, Qty 20+

0

10

Echo 145806-42030

MUFFLER

$55.99

$

In Stock, only 1 left!

0

11

Echo V104000160

GASKET, EXHAUST

$2.49

$

In Stock, Qty 20+

0

12

Echo 14587144330

COVER, EXHAUST
(Superseded to 14587144331)

$5.99

$

In Stock, only 2 left!

0

13

Echo 900600-00005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

14

Echo 900105-05055

BOLT 5×55

$1.99

$

In Stock, Qty 20+

0

15

Echo 178810-42030

BUSHING

$

$

Not available

16

Echo 17851542030

SHUTTER, CHOKE

$2.99

$

Usually ships in 2-4 days

0

17

Echo 178516-00830

WASHER 5.2×8×0.8T

$0.99

$

In Stock, Qty 20+

0

18

Echo 900242-05057

SCREW 5×57

$0.99

$

In Stock, only 3 left!

0

19

Echo 13031742030

FILTER, AIR
(Superseded to Discontinued)

$

$

Not available

20

Echo 130301-42030

CASE, AIR FILTER

$8.49

$

In Stock, only 2 left!

0

21

Echo 130319-42030

PLATE, AIR FILTER

$2.99

$

Usually ships in 2-4 days

0

22

Echo 12520044730

CARBURETOR - C1U-K9
(Superseded to 12520044731)

$

$

Not available

23

Echo 130016-42031

GASKET, INTAKE

$1.49

$

In Stock, Qty 20+

0
