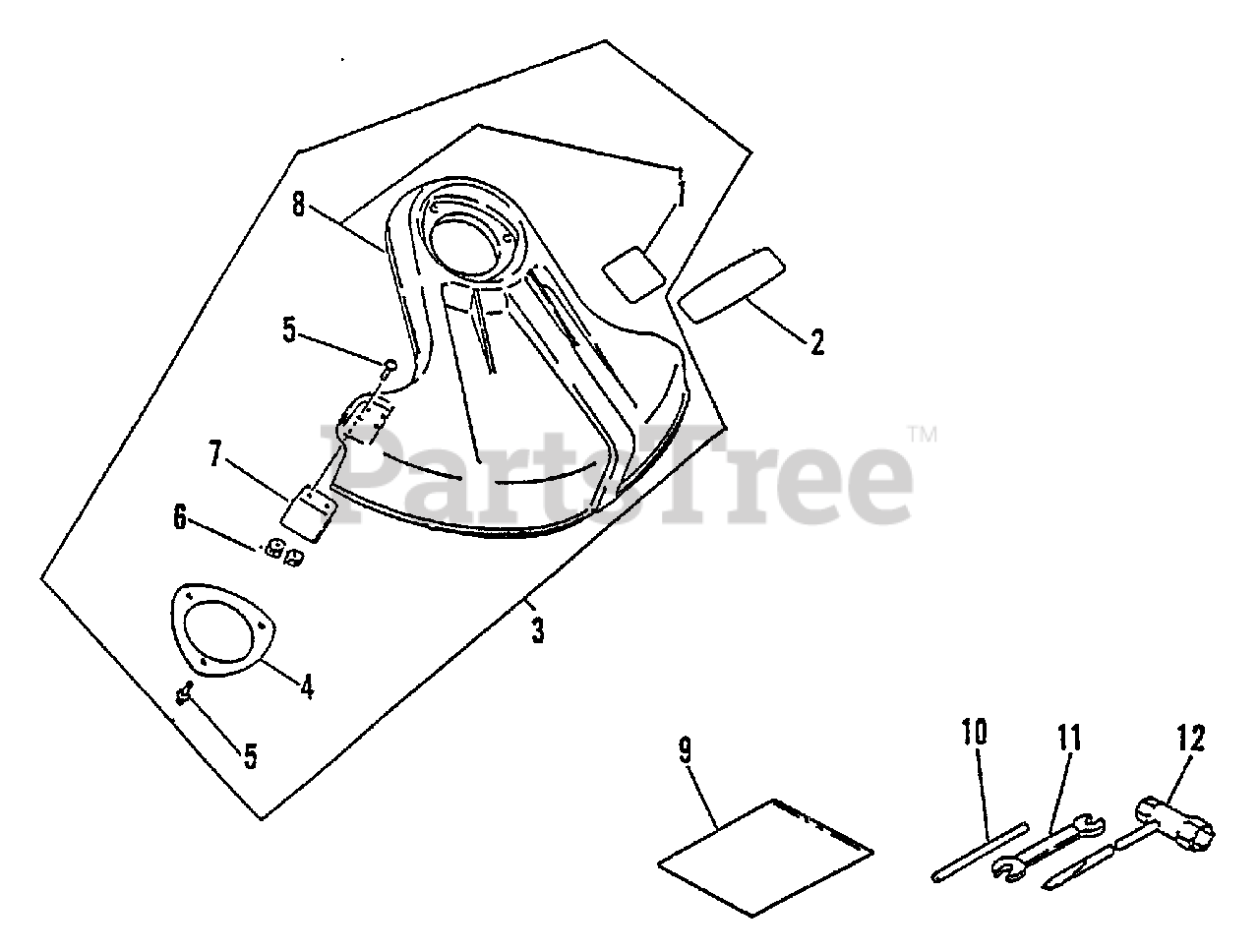

LST-2100 - Lesco String Trimmer (SN: 001001 - 003000) Shield, Tools Parts Diagram

String Trimmer

Shield, Tools Parts Diagram

  • Title

1

Echo 89016852330

LABEL - CAUTION
(Superseded to Discontinued)

$

$

Not available

2

Echo 89011552330

LABEL
(Superseded to Discontinued)

$

$

Not available

3

Echo 69900052230

SHIELD ASSY
(Superseded to Discontinued)

Note: INCLUDES ITEMS 4 - 8

$

$

Not available

4

Echo C552000110

PLATE, SHIELD Ø49.5 MM
(Superseded to C552000240)

$2.99

$

In Stock, only 3 left!

0

5

Echo 900242-05016

SCREW 5×16

$0.99

$

In Stock, only 4 left!

0

6

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

7

Echo 69901644330

CUTTER, LINE
(Superseded to C554000080)

$4.49

$

In Stock, Qty 20+

0

8

Echo 69901027231

SHIELD, DEBRIS

$9.49

$

Usually ships in 2-4 days

0

9

Echo 89851039130

BAG, TOOL

$1.99

$

In Stock, only 3 left!

0

10

Echo 897518-01131

TOOL, LOCKING 5×120 MM

$

$

Not available

11

Echo 895112-00330

SPANNER 8×10

$0.99

$

In Stock, Qty 6

0

12

Echo X602000020

T-WRENCH 17x-19 L200

$4.49

$

In Stock, Qty 7

0
