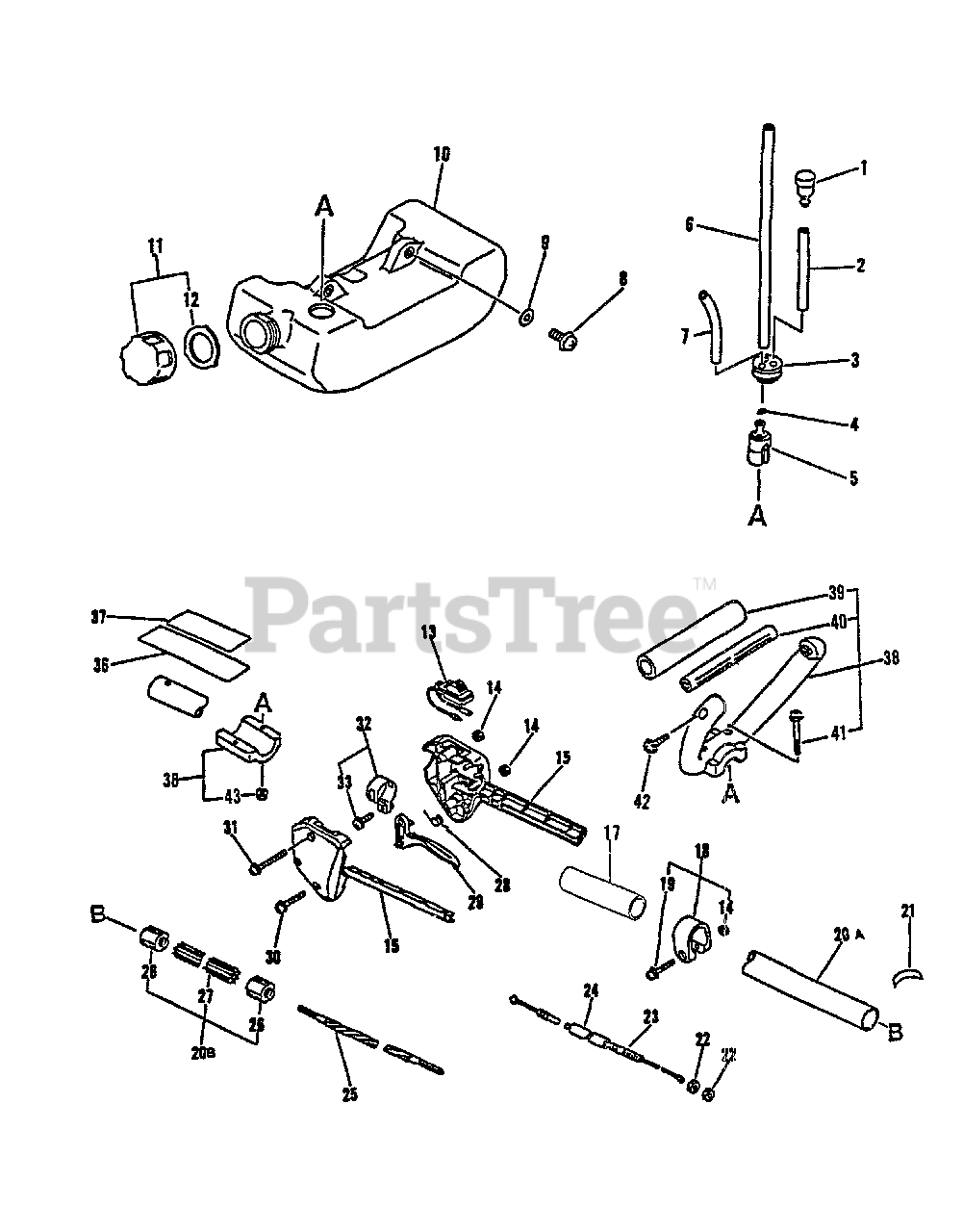

LST-2100 - Lesco String Trimmer (SN: 004502 - 008649) Driveshaft, Fuel System, Throttle Control Parts Diagram

String Trimmer

Driveshaft, Fuel System, Throttle Control Parts Diagram

  • Title

1

Echo 13130040630

VENT ASSY
(Superseded to 13130056430)

$8.99

$

In Stock, Qty 7

0

2

Echo V471001200

PIPE, FUEL 3x-5x-70 BLACK
(Superseded to V471001201)

Note: RePower BULK OPTION: 90014

$2.49

$

In Stock, Qty 20+

0

3

Echo V137000030

GROMMET, FUEL
(Superseded to 13211546730)

$2.49

$

In Stock, Qty 20+

0

4

Echo 132013-09820

CLIP 6 MM

$0.99

$

In Stock, Qty 8

0

5

Echo 131205-07320

FILTER, FUEL

$6.49

$

In Stock, Qty 20+

0

6

Echo V471001190

PIPE, FUEL 3x-5x-180
(Superseded to V471001191)

Note: RePower BULK OPTION: 90014

$1.99

$

In Stock, Qty 20+

0

7

Echo 13201056330

PIPE, FUEL RETURN 3×6×90 MM CLEAR

Note: RePower BULK OPTION: 90017

$3.49

$

In Stock, Qty 11

0

8

Echo 90023805016

SCREW 5×16

$0.99

$

In Stock, Qty 20+

0

9

Echo 900603-00005

WASHER 5.5×12×0.8

$0.99

$

In Stock, Qty 20+

0

10

Echo 13100544330

TANK, FUEL
(Superseded to 13100544331)

$21.99

$

In Stock, Qty 6

0

11

Echo 13100440930

CAP ASSY
(Superseded to 13100441030)

Note: Includes ITEM 12

$

$

Not available

12

Echo 13101640930

GASKET, FUEL CAP

$3.49

$

In Stock, Qty 8

0

13

Echo 16340046830

IGNITION SWITCH ASSY
(Superseded to 16340155631)

$10.99

$

In Stock, only 2 left!

0

14

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

15

Echo 17800352130

HANDLE KIT, CONTROL

Note: Includes Items 14, 30 & 31

$5.99

$

In Stock, only 3 left!

0

17

Echo 35121352130

GRIP, HANDLE

$11.99

$

In Stock, Qty 16

0

18

Echo 61027252130

CLAMP KIT

Note: Includes ITEMS 14-19

$11.99

$

In Stock, only 2 left!

0

19

Echo 90024205028

SCREW 5×28

$0.99

$

In Stock, Qty 6

0

20

Echo 61060944730

MAIN PIPE ASSY 25×1500

Note: Includes Items 26 & 27

$55.99

$

Usually ships in 2-4 days

0

20A

Echo 61060944730

MAIN PIPE ASSY 25×1500

Note: See Ref No. 20

$55.99

$

Usually ships in 2-4 days

0

20B

Echo 61060944730

MAIN PIPE ASSY 25×1500

Note: See Ref No. 20

$55.99

$

Usually ships in 2-4 days

0

21

Echo 890152-04930

LABEL - ALIGNMENT

$0.99

$

In Stock, Qty 11

0

22

Echo 900502-00006

NUT M6

$0.99

$

In Stock, Qty 12

0

23

Echo 17800144430

CABLE, THROTTLE

$12.99

$

In Stock, only 2 left!

0

24

Echo 17812750330

PIPE

$1.49

$

In Stock, Qty 7

0

25

Echo 61001344730

DRIVESHAFT - FLEXIBLE L= 1522
(Superseded to C506000390)

$20.99

$

In Stock, Qty 6

0

26

Echo 61024644730

STOPPER

$1.49

$

In Stock, Qty 20+

0

27

Echo C507000260

LINER, FLEXIBLE 21.6×1420
(Superseded to C507000430)

$30.99

$

In Stock, Qty 7

0

28

Echo 178043-42230

SPRING, TORSION

$0.99

$

In Stock, Qty 20+

0

29

Echo 17801053030

TRIGGER, THROTTLE

$6.99

$

Usually ships in 2-4 days

0

30

Echo 900242-05025

SCREW 5×25

$0.99

$

In Stock, Qty 20+

0

31

Echo 90024205035

SCREW 5×35

$0.99

$

In Stock, Qty 20+

0

32

Echo 301200-29430

CLAMP KIT
(Superseded to 30120029431)

Note: Includes ITEM 33

$11.99

$

In Stock, only 2 left!

0

33

Echo 900242-05014

SCREW 5×14

$0.99

$

In Stock, Qty 20+

0

34

Echo 900220-05040

SCREW 5×40

$0.99

$

In Stock, Qty 8

0

35

Echo 900600-00005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

36

Echo 89016052330

LABEL - CAUTION
(Superseded to Discontinued)

$

$

Not available

37

Echo 89016052230

LABEL, CAUTION
(Superseded to Discontinued)

$

$

Not available

38

Echo 35120152130

LOOP HANDLE ASSY

Note: Includes Items 39 - 43

$78.99

$

Usually ships in 2-4 days

0

39

Echo 35121351730

GRIP, HANDLE

$9.99

$

In Stock, only 2 left!

0

40

Echo 35121051730

HANDLE

$5.49

$

Usually ships in 2-4 days

0

41

Echo 90024206035

SCREW 6×25

$1.49

$

Usually ships in 2-4 days

0

42

Echo 90024605030

SCREW 5×30

$0.99

$

Usually ships in 2-4 days

0

43

Echo 900500-00006

NUT, HEX M6

$0.99

$

In Stock, Qty 20+

0
