LST-2400 - Lesco String Trimmer Carburetor Parts Diagram

String Trimmer

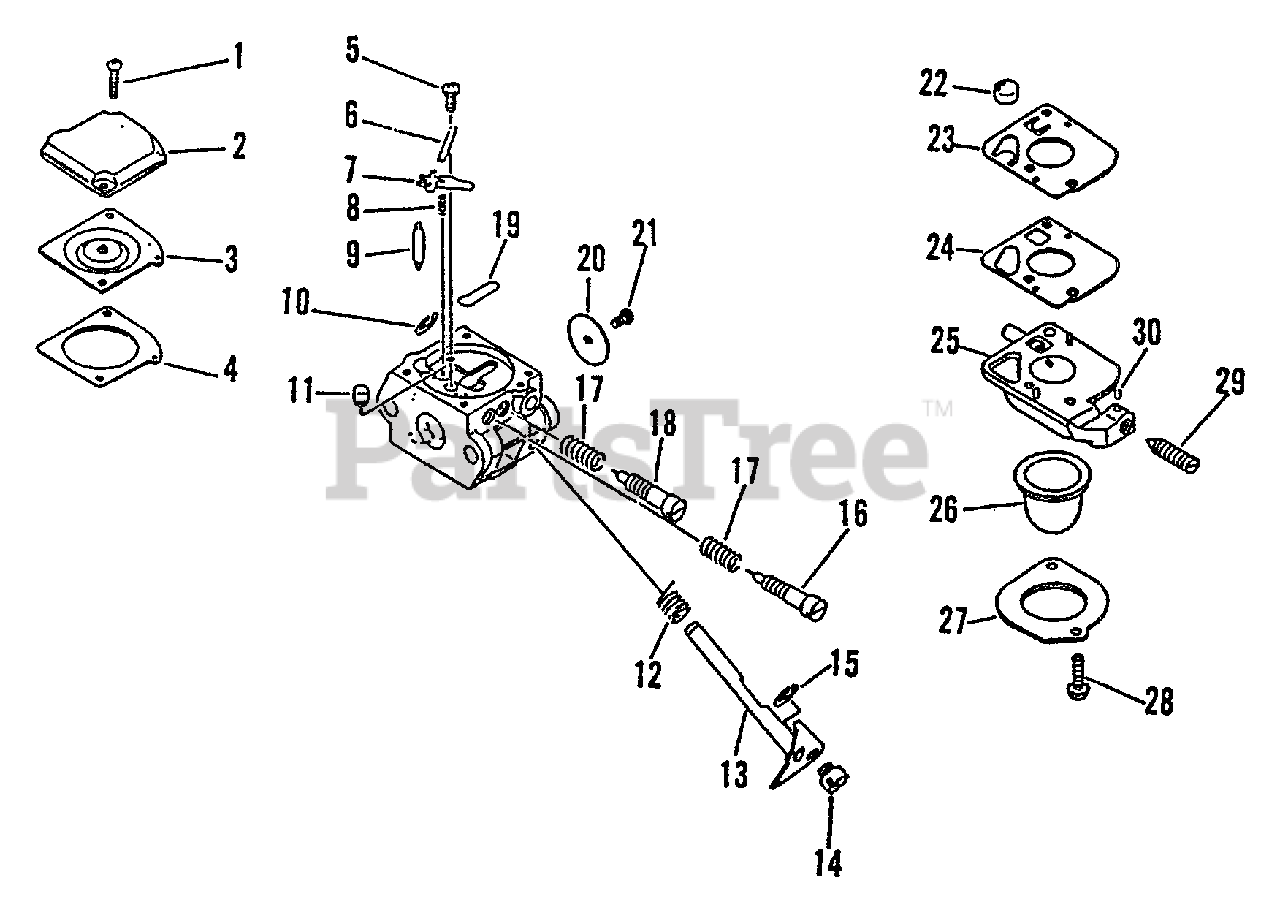

Carburetor Parts Diagram

  • Title

1

Echo 12534413931

SCREW

$2.99

$

In Stock, Qty 12

0

2

Echo 12534215130

COVER, DIAPHRAGM
(Superseded to 12534213210)

$4.99

$

In Stock, only 2 left!

0

3

DIAPHRAGM

Note: Included in Gasket/Diaphragm Kit, P/N 12530351030, and in Repair Kit, P/N 12530051030.

$

$

Not available

4

GASKET, METERING

Note: Included in Gasket/Diaphragm Kit, P/N 12530351030, and in Repair Kit, P/N 12530051030.

$

$

Not available

5

Echo 125339-42030

SCREW

$0.99

$

In Stock, Qty 11

0

6

PIN

Note: Included in Repair Kit, P/N 12530051030.

$

$

Not available

7

LEVER, METERING

Note: Included in Repair Kit, P/N 12530051030.

$

$

Not available

8

SPRING

Note: Included in Repair Kit, P/N 12530051030.

$

$

Not available

9

VALVE, NEEDLE

Note: Included in Repair Kit, P/N 12530051030.

$

$

Not available

10

Echo 125327-15130

E-RING

$0.99

$

In Stock, Qty 5

0

11

NOZZLE, CHECK VALVE

Note: Included in Repair Kit, P/N 12530051030.

$

$

Not available

12

Echo 125313-42030

SPRING, THROTTLE RETURN

$1.49

$

In Stock, Qty 12

0

13

Echo 125317-42030

SHAFT, THROTTLE

$6.99

$

Usually ships in 2-4 days

0

14

Echo 125372-42030

SWIVEL

$5.49

$

Usually ships in 2-4 days

0

15

Echo 125327-13930

CLIP

$0.99

$

In Stock, Qty 5

0

16

Echo 12531851330

NEEDLE, IDLE
(Superseded to Discontinued)

$

$

Not available

17

Echo 125319-42030

SPRING, NEEDLE

$1.49

$

In Stock, only 2 left!

0

18

Echo 12532051230

NEEDLE, HIGH SPEED

$4.99

$

Usually ships in 2-4 days

0

19

PLUG, WELCH

Note: Included in Repair Kit, P/N 12530051030.

$

$

Not available

20

Echo 12531651230

VALVE, THROTTLE
(Superseded to Discontinued)

$

$

Not available

Echo 12520051231

CARBURETOR - C1U-K20B
(Superseded to 12520051232)

$

$

Not available

21

Echo 125314-13930

SCREW

$1.49

$

Usually ships in 2-4 days

0

22

STRAINER

Note: Included in Repair Kit, P/N 12530051030.

$

$

Not available

------------------

DIAPHRAGM, PUMP

Note: Included in Gasket/Diaphragm Kit, P/N 12530351030, and in Repair Kit, P/N 12530051030.

$

$

Not available

------------------

GASKET, PUMP

Note: Included in Gasket/Diaphragm Kit, P/N 12530351030, and in Repair Kit, P/N 12530051030.

$

$

Not available

25

Echo 12532411610

BODY ASSY, PURGE

$25.99

$

In Stock, only 3 left!

0

26

Echo 12538108660

BULB, PURGE
(Superseded to P005003120)

$7.49

$

In Stock, Qty 20+

0

27

Echo 12536311610

RETAINER

$2.49

$

In Stock, Qty 14

0

28

Echo 12531011610

SCREW

$1.99

$

In Stock, Qty 5

0

29

Echo 12533413930

SCREW, IDLE ADJUST

$1.99

$

In Stock, only 2 left!

0

30

Echo 12537813930

PIECE, FRICTION

$1.99

$

Usually ships in 2-4 days

0

Echo 12530351030

GASKET / DIAPHRAGM KIT

$22.99

$

In Stock, only 3 left!

0

Echo 12530051030

REPAIR KIT

$34.99

$

In Stock, only 2 left!

0

Echo 88900051230

GASKET KIT
(Superseded to Discontinued)

Note: Includes the following items

$

$

Not available

GASKET, CYLINDER

Note: Included in Gasket Kit, P/N 88900051230

$

$

Not available

GASKET, CRANKCASE

Note: Included in Gasket Kit, P/N 88900051230

$

$

Not available

GASKET, INTAKE

Note: Included in Gasket Kit, P/N 88900051230

$

$

Not available

GASKET, INTAKE

Note: Included in Gasket Kit, P/N 88900051230

$

$

Not available

GASKET, EXHAUST

Note: Included in Gasket Kit, P/N 88900051230

$

$

Not available

GASKET, EXHAUST

Note: Included in Gasket Kit, P/N 88900051230

$

$

Not available
