LST-2400 - Lesco String Trimmer Clutch Drum, Clutch Housing, Driveshaft, Handles, Ignition Switch, Throttle Parts Diagram

String Trimmer

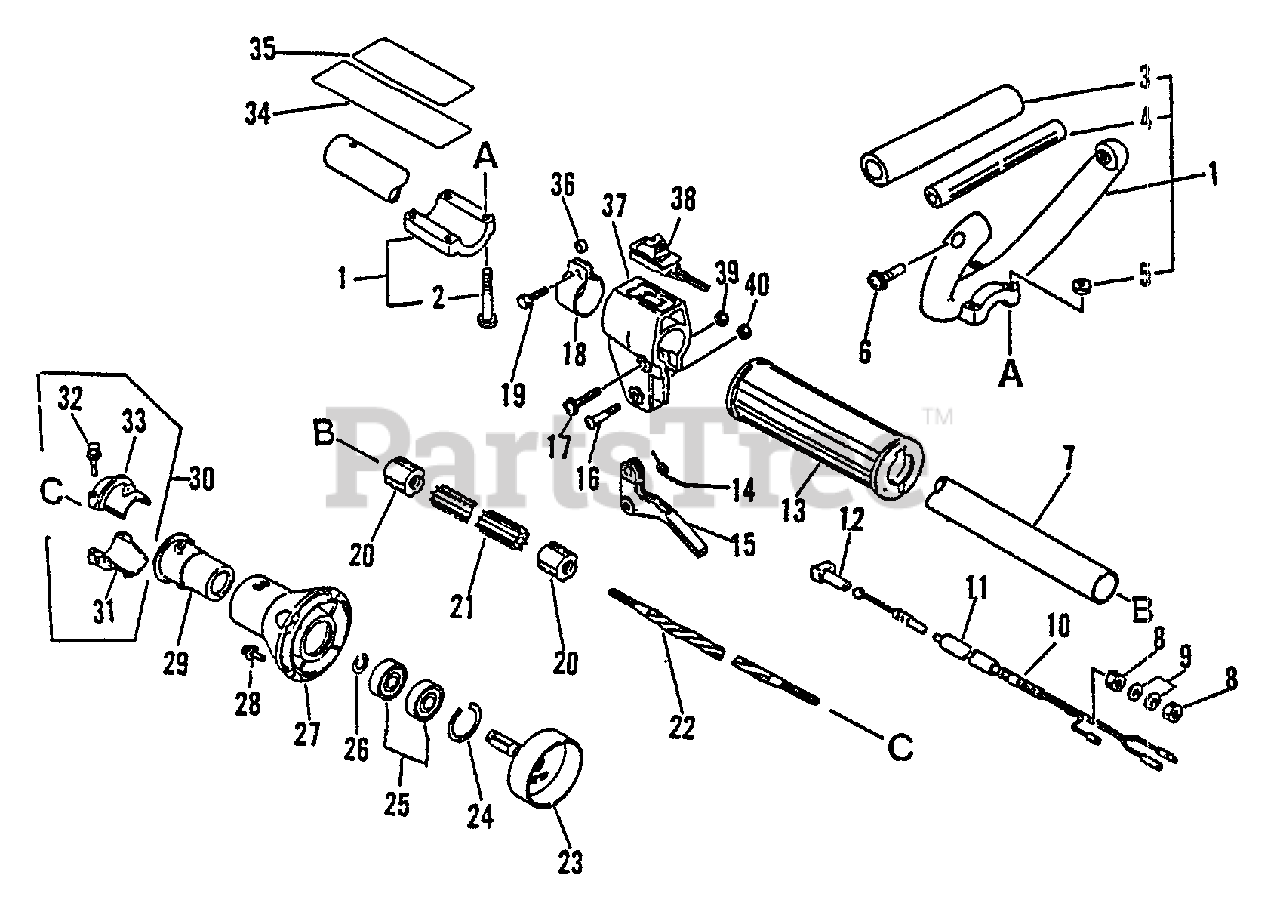

Clutch Drum, Clutch Housing, Driveshaft, Handles, Ignition Switch, Throttle Parts Diagram

  • Title

1

Echo 35120152130

LOOP HANDLE ASSY

Note: Includes items 2-6

$78.99

$

Usually ships in 2-4 days

0

2

Echo 90024205035

SCREW 5×35

$0.99

$

In Stock, Qty 20+

0

3

Echo 35121351730

GRIP, HANDLE

$9.99

$

In Stock, only 2 left!

0

4

Echo 35121051730

HANDLE

$5.49

$

Usually ships in 2-4 days

0

5

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

6

Echo 90024605030

SCREW 5×30

$0.99

$

Usually ships in 2-4 days

0

7

Echo 61060944730

MAIN PIPE ASSY 25×1500

Note: Includes items 20 & 21

$55.99

$

Usually ships in 2-4 days

0

8

Echo 900502-00006

NUT M6

$0.99

$

In Stock, Qty 12

0

9

Echo 90060000006

WASHER 6.5×11.5×0.8

$0.99

$

In Stock, Qty 20+

0

10

Echo 17800151030

CABLE, THROTTLE

$20.99

$

In Stock, only 2 left!

0

11

Echo 17812751030

TUBE - VINYL

$0.99

$

Usually ships in 2-4 days

0

12

Echo 17804805630

GUIDE, CABLE

$1.99

$

In Stock, Qty 5

0

13

Echo 35101244730

GRIP
(Superseded to Discontinued)

$

$

Not available

14

Echo 17804306930

SPRING, THROTTLE

$1.49

$

In Stock, only 4 left!

0

15

Echo 17801024631

TRIGGER, THROTTLE
(Superseded to Discontinued)

$

$

Not available

16

Echo 17811005330

SCREW

$0.99

$

In Stock, Qty 11

0

17

Echo 90024205030

SCREW 5×30

$0.99

$

In Stock, only 2 left!

0

18

Echo 301207-08930

HOOK

$5.99

$

Usually ships in 2-4 days

0

19

Echo 900100-05018

BOLT 5×18

$0.99

$

In Stock, Qty 8

0

20

Echo 61024644730

STOPPER

$1.49

$

In Stock, Qty 20+

0

21

Echo C507000260

LINER, FLEXIBLE 21.6×1420
(Superseded to C507000430)

$30.99

$

In Stock, Qty 7

0

22

Echo 61001344730

DRIVESHAFT - FLEXIBLE L= 1522
(Superseded to C506000390)

$20.99

$

In Stock, Qty 6

0

23

Echo 17500551730

DRUM, CLUTCH

$18.99

$

Usually ships in 2-4 days

0

24

Echo 90070200028

RING, SNAP 28

$1.99

$

In Stock, Qty 20+

0

25

Echo 90080806001

BEARING, BALL 6001
(Superseded to 90080206001)

$11.99

$

In Stock, only 2 left!

0

26

Echo 90070100012

RING, RETAINING - 12

$0.99

$

In Stock, Qty 20+

0

27

Echo 61022352330

FLANGE, DRIVESHAFT HOUSING
(Superseded to Discontinued)

$

$

Not available

28

Echo 90023805016

SCREW 5×16

$0.99

$

In Stock, Qty 20+

0

29

Echo 61091027832

CUSHION

$9.49

$

In Stock, only 2 left!

0

30

Echo 61090327432

HOLDER KIT
(Superseded to P021013520)

Note: Includes items 31-33

$11.99

$

Usually ships in 2-4 days

0

31

Echo 61092327432

HOLDER

$7.49

$

Usually ships in 2-4 days

0

32

Echo 900142-05025

BOLT - 5×25

$0.99

$

In Stock, Qty 9

0

33

Echo 61092227432

HOLDER, MAIN PIPE - UPPER

$6.99

$

In Stock, only 2 left!

0

34

Echo 89016052330

LABEL - CAUTION
(Superseded to Discontinued)

$

$

Not available

35

Echo 89016052230

LABEL, CAUTION
(Superseded to Discontinued)

$

$

Not available

36

Echo 699012-03330

SPACER, GUARD

$1.99

$

In Stock, Qty 13

0

37

Echo 17802449230

BRACKET, THROTTLE CONTROL
(Superseded to Discontinued)

$

$

Not available

38

Echo 16340052330

IGNITION SWITCH ASSY
(Superseded to Discontinued)

$

$

Not available

39

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

40

Echo 90056000005

NUT, LOCK M5

$1.49

$

In Stock, Qty 14

0
