LST-2400 - Lesco String Trimmer Clutch, Ignition, Starter Parts Diagram

String Trimmer

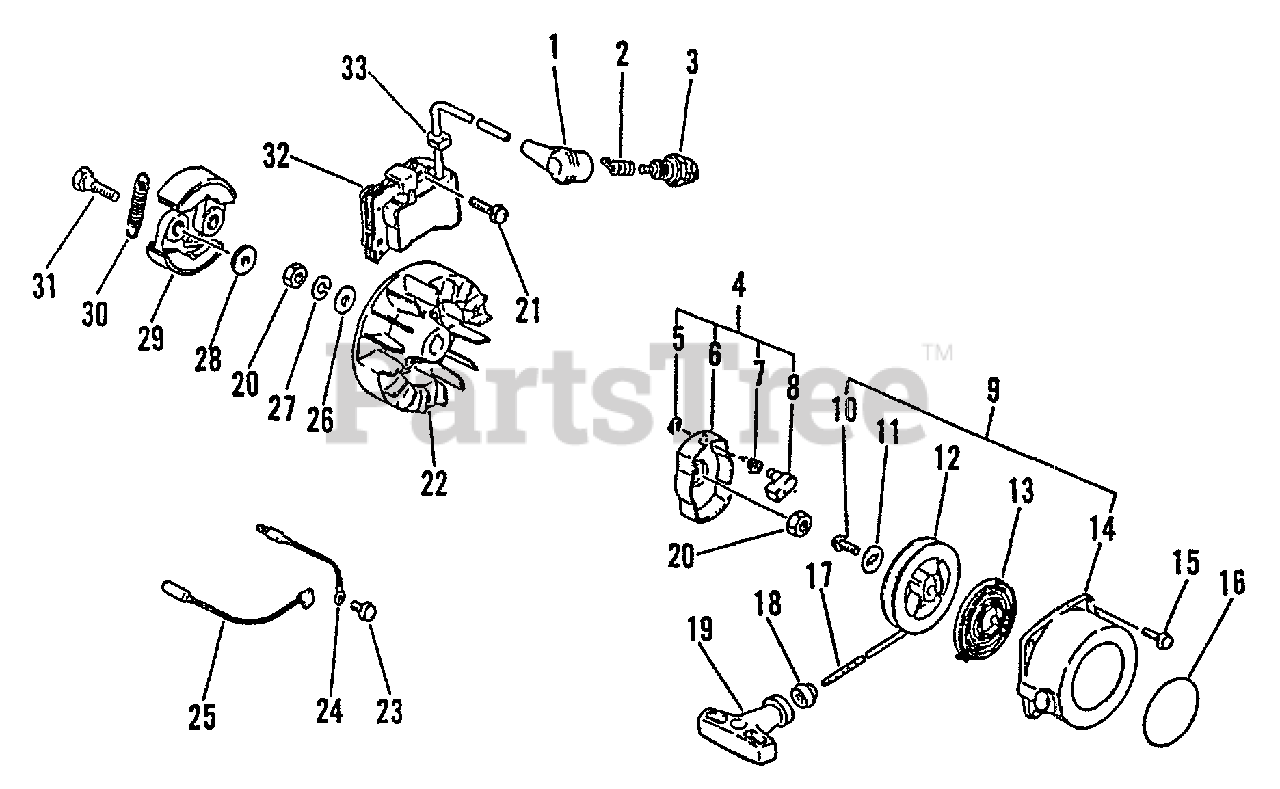

Clutch, Ignition, Starter Parts Diagram

  • Title

1

Echo 15901203433

CAP, SPARK PLUG

$8.49

$

In Stock, Qty 19

0

2

Echo 159011-03432

TERMINAL, SPARK PLUG
(Superseded to 15901103432)

$1.99

$

In Stock, Qty 20+

0

3

Echo 15901010630

SPARK PLUG - BPM7A
(Superseded to 15901010230)

$3.99

$

In Stock, Qty 20+

0

4

Echo A052000030

PAWL ASSY, STARTER

Note: Includes items 5-8

$15.99

$

In Stock, Qty 15

0

5

Echo 90070000004

E-RING 4

$0.99

$

In Stock, Qty 20+

0

6

Echo 17721040630

CATCHER, PAWL
(Superseded to 17720240630)

$15.99

$

In Stock, Qty 15

0

7

Echo 17723440630

SPRING, RETURN

$3.99

$

Usually ships in 2-4 days

0

8

Echo 17721840630

PAWL, STARTER
(Superseded to A514000120)

$3.49

$

In Stock, Qty 20+

0

9

Echo 17720049330

STARTER ASSY
(Superseded to Discontinued)

Note: Includes items 10-14, 17-19

$

$

Not available

10

Echo 17723640630

SCREW

$4.99

$

In Stock, Qty 13

0

11

Echo 17721440630

WASHER
(Superseded to P022022280)

$1.49

$

In Stock, Qty 5

0

12

Echo 17721540630

REEL, ROPE

$11.99

$

In Stock, only 1 left!

0

13

Echo 17722040630

SPRING, RECOIL

$15.99

$

In Stock, only 1 left!

0

14

Echo 17723249330

CASE, STARTER
(Superseded to Discontinued)

$

$

Not available

15

Echo 90016204014

BOLT 4×14

$1.49

$

In Stock, Qty 18

0

16

Echo 89011508060

LABEL

$6.49

$

Usually ships in 2-4 days

0

17

Echo 177226-03930

ROPE, STARTER 3.5×850
(Superseded to 17722603930)

Note: RePower BULK OPTION: 99944445000

$6.99

$

In Stock, only 2 left!

0

18

Echo 17722705530

GUIDE, ROPE

$4.99

$

In Stock, Qty 10

0

19

Echo 177228-06530

GRIP, STARTER

$5.99

$

In Stock, Qty 5

0

20

Echo 90050200008

NUT 8×1.25

$0.99

$

In Stock, Qty 7

0

21

Echo 90016205020

BOLT 5×20

$1.49

$

In Stock, Qty 20+

0

22

Echo 15680122330

FLYWHEEL

$112.99

$

Usually ships in 2-4 days

0

23

Echo 90023805010

SCREW 5×10

$0.99

$

In Stock, Qty 13

0

24

Echo 16201427230

LEAD - GROUND L= 115

$3.49

$

In Stock, only 2 left!

0

25

Echo 16202227230

LEAD - GROUND
(Superseded to Discontinued)

$

$

Not available

26

Echo 90060000008

WASHER 8.5×16×1.2

$0.99

$

Usually ships in 2-4 days

0

27

Echo 90060500008

WASHER, SPRING 8

$0.99

$

In Stock, Qty 20+

0

28

Echo 17504805530

WASHER 6.2×19×1.0

$1.99

$

In Stock, Qty 20+

0

29

Echo 17500905532

SHOE, CLUTCH
(Superseded to 17500955930)

$25.99

$

In Stock, only 2 left!

0

30

Echo 17501805535

SPRING, CLUTCH

$1.99

$

Usually ships in 2-4 days

0

31

Echo 17504622332

BOLT, CLUTCH

$3.99

$

Usually ships in 2-4 days

0

32

Echo 15660140930

COIL, IGNITION
(Superseded to Discontinued)

$

$

Not available

33

Echo 15611240630

GROMMET

$1.99

$

In Stock, Qty 20+

0
