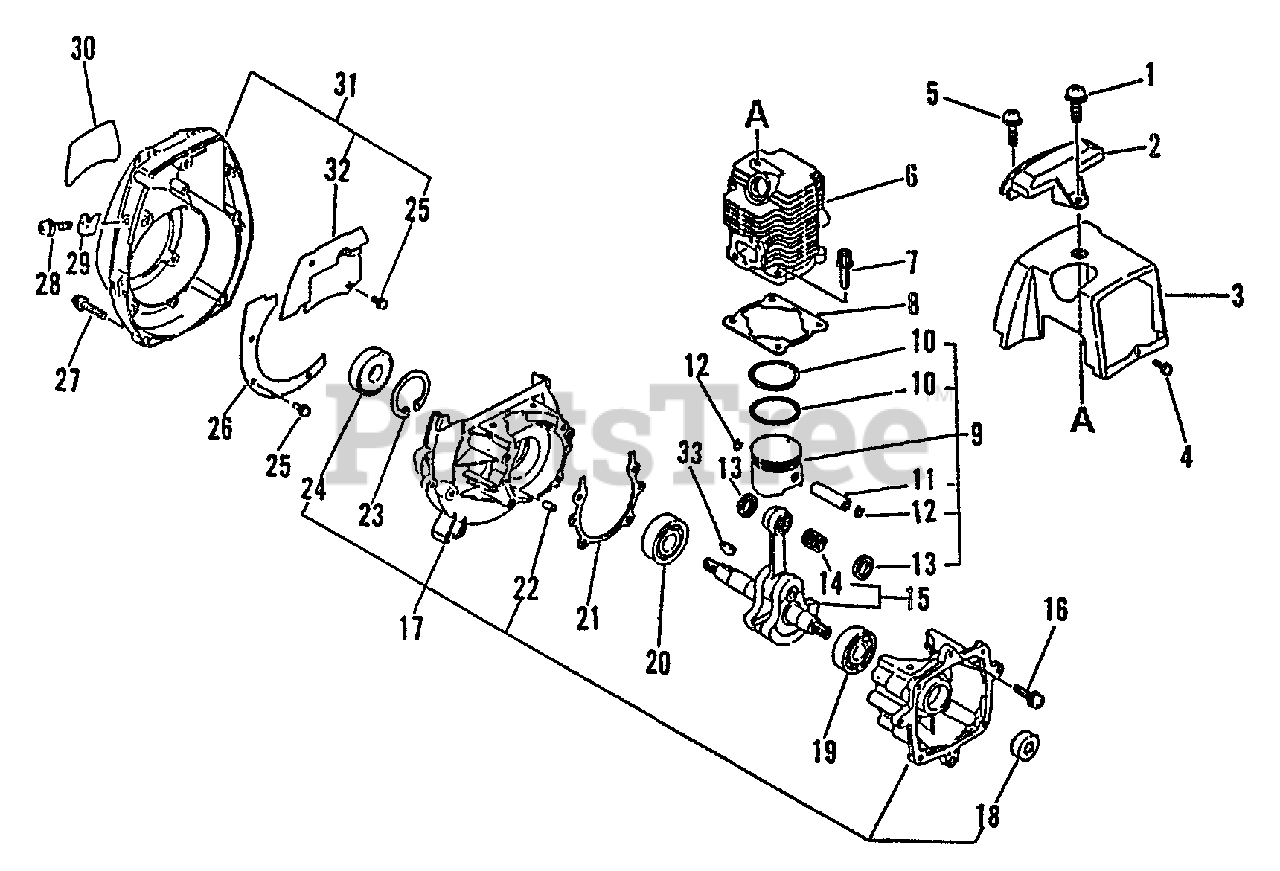

LST-2400 - Lesco String Trimmer Engine, Crankcase, Cover Parts Diagram

String Trimmer

Engine, Crankcase, Cover Parts Diagram

  • Title

1

Echo 90023805016

SCREW 5×16

$0.99

$

In Stock, Qty 20+

0

2

Echo 15990540930

GUARD, TOP

$14.99

$

Usually ships in 2-4 days

0

3

Echo 10151452330

COVER, ENGINE
(Superseded to Discontinued)

$

$

Not available

4

Echo 90023804010

SCREW 4×10

$0.99

$

In Stock, only 2 left!

0

5

Echo 90023804014

SCREW 4×14

$0.99

$

In Stock, Qty 6

0

6

Echo 10101122330

CYLINDER

$241.99

$

Usually ships in 2-4 days

0

7

Echo 90016205020

BOLT 5×20

$1.49

$

In Stock, Qty 20+

0

8

Echo 10101022331

GASKET, CYLINDER
(Superseded to Discontinued)

Note: Use Kit 88900051230

$

$

Not available

9

Echo 10000051230

PISTON KIT
(Superseded to Discontinued)

Note: Includes ITEMS 10-13

$

$

Not available

10

Echo 100011-05330

RING, PISTON
(Superseded to 10001105330)

$10.99

$

In Stock, Qty 8

0

11

Echo 100013-11520

PIN, PISTON 8

$8.49

$

In Stock, only 2 left!

0

12

Echo 100015-04630

RING, SNAP
(Superseded to 10001504630)

$0.99

$

In Stock, Qty 20+

0

13

Echo 100014-11520

WASHER, THRUST

$3.99

$

In Stock, only 2 left!

0

14

Echo 10001251230

BEARING, NEEDLE
(Superseded to V553000010)

$11.99

$

In Stock, only 2 left!

0

15

Echo 10010451230

CRANKSHAFT ASSY

Note: Includes ITEM 4

$309.99

$

Usually ships in 2-4 days

0

16

Echo 900238-05025

SCREW 5×25

$0.99

$

In Stock, Qty 20+

0

17

Echo 10020422330

CRANKCASE KIT

Note: Includes items 18-24

$390.99

$

Usually ships in 2-4 days

0

18

Echo 10021305530

SEAL, OIL 12

$7.99

$

In Stock, Qty 16

0

19

Echo 90080036001

BEARING, BALL 6001

$11.99

$

In Stock, Qty 9

0

20

Echo 9403536201

BEARING, BALL - 6201 C3

$9.99

$

In Stock, only 3 left!

0

21

GASKET, CRANKCASE

Note: Use Kit 88900051230

$

$

Not available

22

Echo V622000020

PIN, LOCATING 4

$0.99

$

In Stock, only 4 left!

0

23

Echo 90070200032

RING, SNAP Ø32

$2.49

$

In Stock, only 2 left!

0

24

Echo 10021203930

SEAL, OIL 12

$6.49

$

In Stock, Qty 9

0

25

Echo 90023804008

SCREW 4×8

$0.99

$

In Stock, only 2 left!

0

26

Echo 10154140930

PLATE, GUIDE
(Superseded to Discontinued)

$

$

Not available

27

Echo 90016204020

BOLT 4×20

$1.49

$

In Stock, Qty 20+

0

28

Echo 90023804010

SCREW 4×10

$0.99

$

In Stock, only 2 left!

0

29

Echo 17812151230

HOLDER, CABLE

$4.49

$

Usually ships in 2-4 days

0

30

Echo 89011252330

LABEL, LST-2400
(Superseded to Discontinued)

$

$

Not available

31

Echo 10150352330

FAN CASE ASSY
(Superseded to Discontinued)

Note: Includes items 25, 26, 28, 29, 32

$

$

Not available

32

Echo 10153440930

PLATE, GUIDE

$10.99

$

Usually ships in 2-4 days

0

33

Echo 100142-00310

KEY

$1.99

$

Usually ships in 2-4 days

0

Echo SB1015

SHORT BLOCK SRM-2501

$299.99

$

Usually ships in 2-4 days

0

Echo 88900051230

GASKET KIT
(Superseded to Discontinued)

$

$

Not available
